Z390 Taichi Ultimate

Obsługa Procesorów 9-tej i 8-mej Generacji Intel^® Core™ (Socket 1151)
AQUANTIA^® / Marvell 10 Gigabit LAN, Dual Intel^® Gigabit LAN
IR Digital PWM, 12 Power Phase design
Supports DDR4 4200+(OC)
3 PCIe 3.0 x16, 2 PCIe 3.0 x1
NVIDIA^® Quad SLI™, AMD 3-Way CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
Supports Purity Sound™ 4 & DTS Connect
8 SATA3, 3 Ultra M.2 (PCIe Gen3x4 & SATA3)
5 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A)
8 USB 3.1 Gen1 (4 Front, 4 Rear)
Intel^® 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0

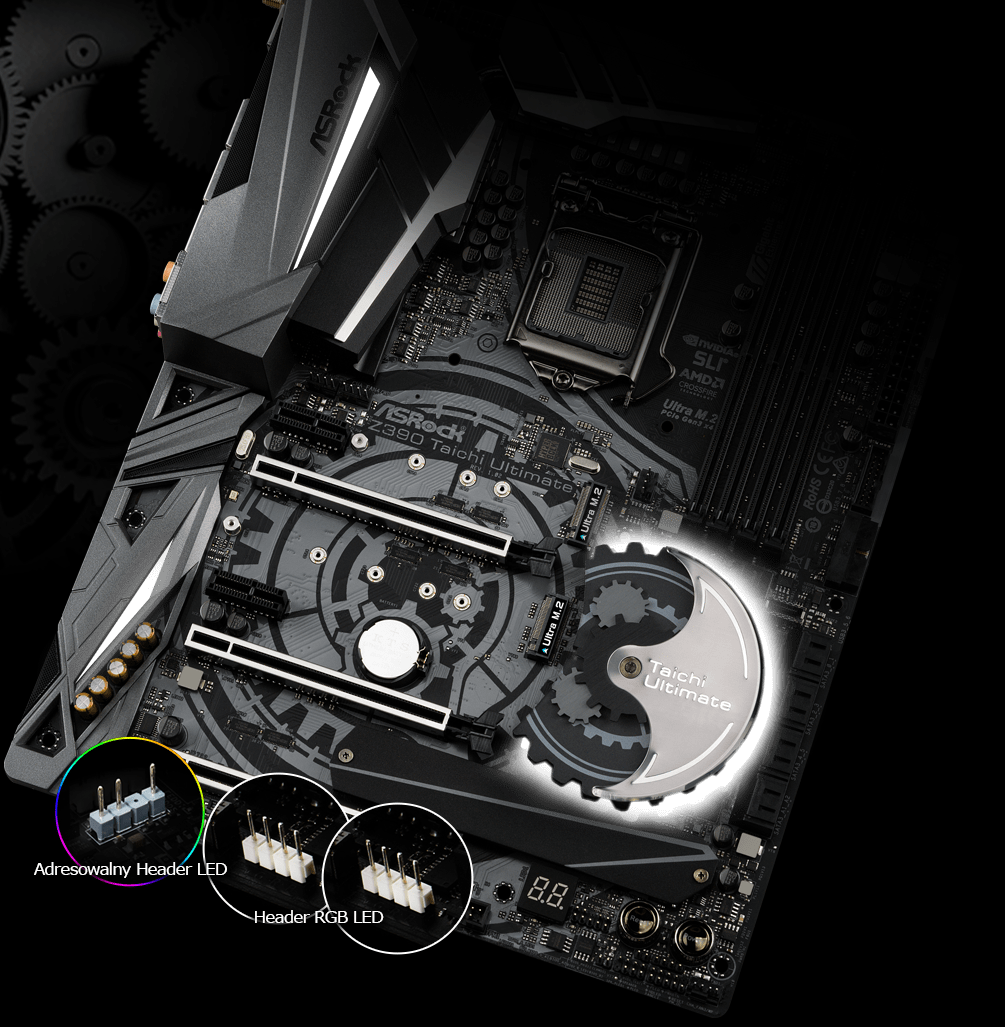

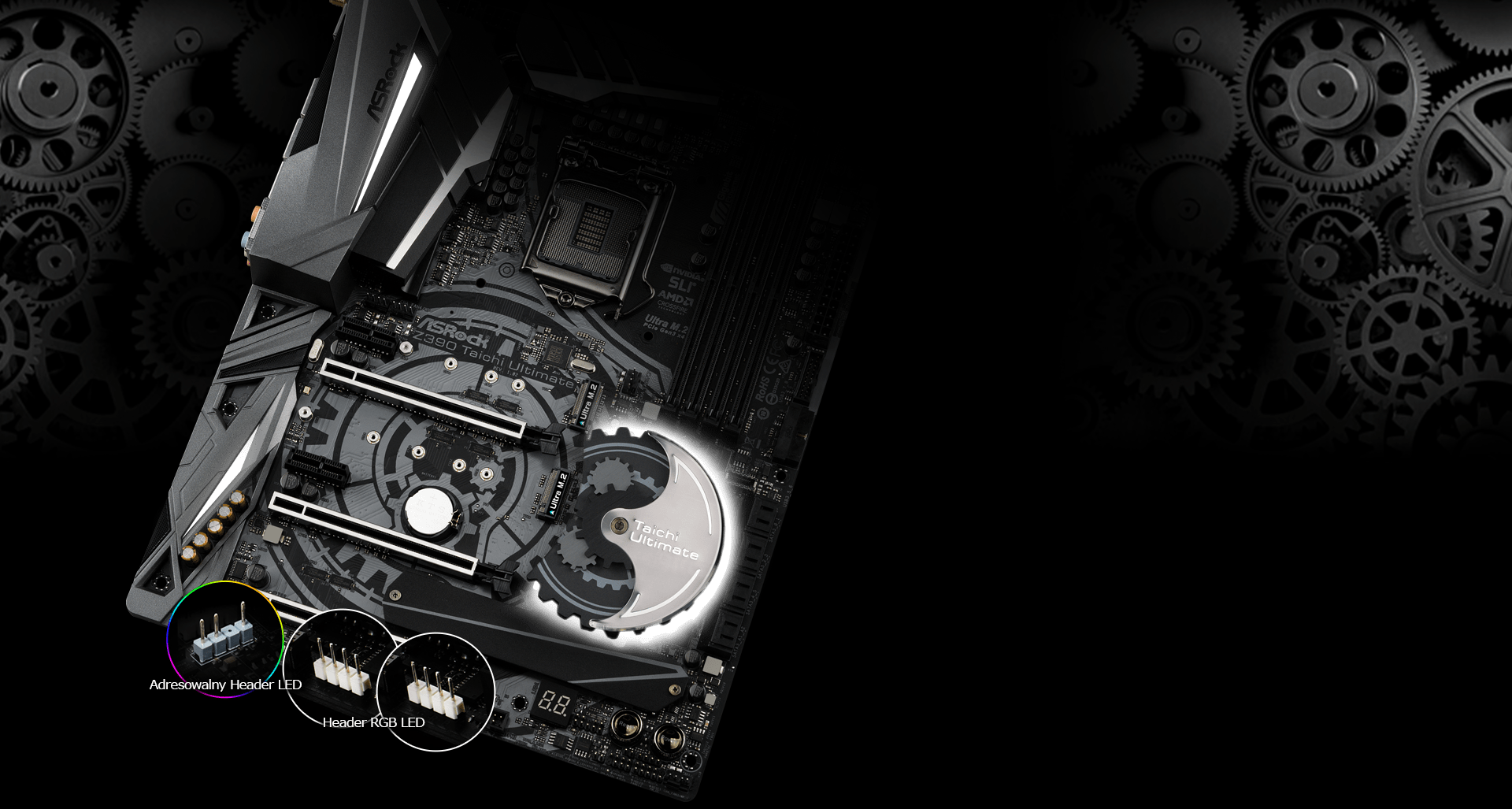

ASRock Polychrome SYNC
Hyper BCLK Engine II

Ten model może nie być sprzedawany na całym świecie. Proszę skontaktuj się ze swoim lokalnym sprzedawcą aby zapytać o dostępność modelu w twoim regionie.

Cechy szczególne
ASRock USB 3.1 Gen2
- ASRock Front Panel Type C USB 3.1 Gen2 Header (10 Gb/s)
- ASRock Rear USB 3.1 Gen2 Type-A Ports (10 Gb/s)
- ASRock Rear USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
AQUANTIA^® / Marvell 10G LAN
Intel^® 802.11ac WiFi
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Obsługa Procesorów 9-tej i 8-mej Generacji Intel^® Core™ (Socket 1151)
- IR Digital PWM
- 12 Power Phase design
- Supports Intel^® Turbo Boost 2.0 Technology
- Supports Intel^® K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports ASRock Hyper BCLK Engine II
Chipset
- Intel^® Z390
Pamięć
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4200+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Wsparcie dla modułów pamięci ECC UDIMM (praca w trybie non-ECC )
- Max. capacity of system memory: 128GB*
- Supports Intel^® Ekstremalny Profil Pamięci (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

*Z powodu ograniczeń system operacyjnego, rzeczywisty rozmiar pamięci może być mniejszy niż 4GB dla rezerwacji przez system Windows^® 32-bit. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT Core/Cache, DRAM, VTT DDR, PCH 1.0V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
Karta graficzna
- Supports Intel^® UHD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
- Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
- Supports HDMI 1.4 with max. Rozdzielczośćup to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.2 with max. Rozdzielczośćup to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

*Technologie Intel^® UHD Graphics Built-in Visual oraz wyjścia obrazu mogą być obsługiwane tylko przez procesory wyposażone w zintegrowane GPU.
Audio
- 7.1 CH HD Audio with Ochrona Treści (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports DTS Connect

LAN

1 x 10 Gigabit LAN 10/100/1000/2500/5000/10000 Mb/s (AQUANTIA^® / Marvell AQC107):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports PXE
2 x Gigabit LAN 10/100/1000 Mb/s (1 x Intel^® I219V, 1 x Intel^® I211AT):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

*Teaming jest obsługiwany na Windows^® 10 RS2 lub nowszym.

Wireless LAN

- Intel^® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 1733Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO

Sloty

- 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))*
- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA^® Quad SLI™ and SLI™
- Wsparcie NVIDIA^® NVLink™ z dwiema kartami graficznymi serii NVIDIA^® GeForce RTX**
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)

*Obsługa bootowania z dysków NVMe SSD

**Mostek NVIDIA^® NVLink™ nie jest częścią wyposażenia. Możesz go nabyć bezpośrednio od NVIDII.

Magazynowanie

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.

**Supports Intel^® Optane™ Technology
Obsługa bootowania z dysków NVMe SSD
Supports ASRock U.2 Kit

Złącza

- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel^® Z390) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM1562 Retimer)
- 1 x Performance Mode / Easy OC Header
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED

*Support in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.

Tylny panel

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 3 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Intel^® Z390) (Supports ESD Protection)
- 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Oprogramowanie i UEFI

Software
- ASRock A-Tuning
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Funkcja Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer

*Te narzędzia można pobrać z Live Update & APP Shop.

Akcesoria

- I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 1 x ASRock WiFi 2.4/5 GHz Antenna
- 3 x Screws for M.2 Sockets

Hardware Monitor

- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, DRAM VPP, VCCSA, VCCST, DMI, CPU Cold Bug Killer

Wymiary

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

System operacyjny

- Microsoft^® Windows^® 10 64-bit / 11 64-bit

Certyfikaty

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Opis	Język	Pobierz z
Instrukcja użytkownika	Angielski	Global	China
BSMI	Multi-Language	Global	China
Skrócona instrukcja instalacji	Wielojęzyczny	Global	China
Skrócona instrukcja instalacji	Angielski	Global	China
Instrukcja instalacji RAID	Angielski	Global	China
Przewodnik Intel Rapid Storage	Angielski	Global	China

* This product has reached EOS (End of Service) in 2026/Jan. Technical and security-related support has ended.
