• Уникални функции
  ASRock USB 3.2 Gen2
  - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
  ASRock Super Alloy
  - Premium Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  - 2oz Copper PCB
  ASRock Ultra M.2 (PCIe Gen3 x4)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• Процесор
  - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  - Digi Power design
  - 10 Power Phase design
• Чипсет
  - AMD Promontory B450
• Памет
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory

  - Max. capacity of system memory: 128GB*
  - Supports Изключителен профил на паметта (XMP) memory modules
  - 15μ Gold Contact in DIMM Slots



  *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
  Please refer to below table for AMD non-XMP memory frequency support.

  Ryzen Series CPUs (Vermeer):


  Ryzen Series CPUs (Matisse):


  Ryzen Series APUs (Cezanne):


  Ryzen Series APUs (Renoir):


  Ryzen Series CPUs (Pinnacle Ridge):


  Ryzen Series CPUs (Picasso):


  Ryzen Series CPUs (Summit Ridge):


  Ryzen Series CPUs (Raven Ridge):


  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - DRAM Voltage multi-adjustment
• Графика
  - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  - DirectX 12, Pixel Shader 5.0
  - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.**
  - Three graphics output options: D-Sub, HDMI and Порт за дисплей 1.2
  - Supports Triple Monitor
  - Supports HDMI 1.4 with max. резолюция up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
  - Supports Порт за дисплей 1.2 with max. резолюция up to 4K x 2K (4096x2160) @ 60Hz
  - Supports D-Sub with max. резолюция up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports HDCP 1.4 with HDMI 1.4 and Порт за дисплей 1.2 Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and Порт за дисплей 1.2 Ports



  *Действителната поддръжка може да варира в зависимост от процесора

  **Максималната споделена памет 16 GB изисква инсталирана 32GB системна памет.
• Аудио
  - 7.1 CH HD Audio with Защита на съдържанието (Realtek ALC892/897 Audio Codec)
  - Supports Surge Protection
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Слотове
  AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
  - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
  AMD Ryzen series CPUs (Picasso, Raven Ridge)
  - 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*
  AMD Athlon series CPUs
  - 2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)*

  - 4 x PCI Express 2.0 x1 Slots
  - Supports AMD Quad CrossFireX™ and CrossFireX™**




  *Поддържа NVMe SSD като дискове за начално зареждане
  Ако M2_1 слота е зает, PCIE4 ще бъде деактивиран.

  **Тази функция се поддържа само с процесори от серията Ryzen (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge).
• Съхранение
  - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
  - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**
  - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**



  *M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.

  **Ако M2_1 слота е зает, PCIE4 ще бъде деактивиран.
  Поддържа NVMe SSD като дискове за начално зареждане
  Supports ASRock U.2 Kit
• Конектор
  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Power LED and Speaker Header

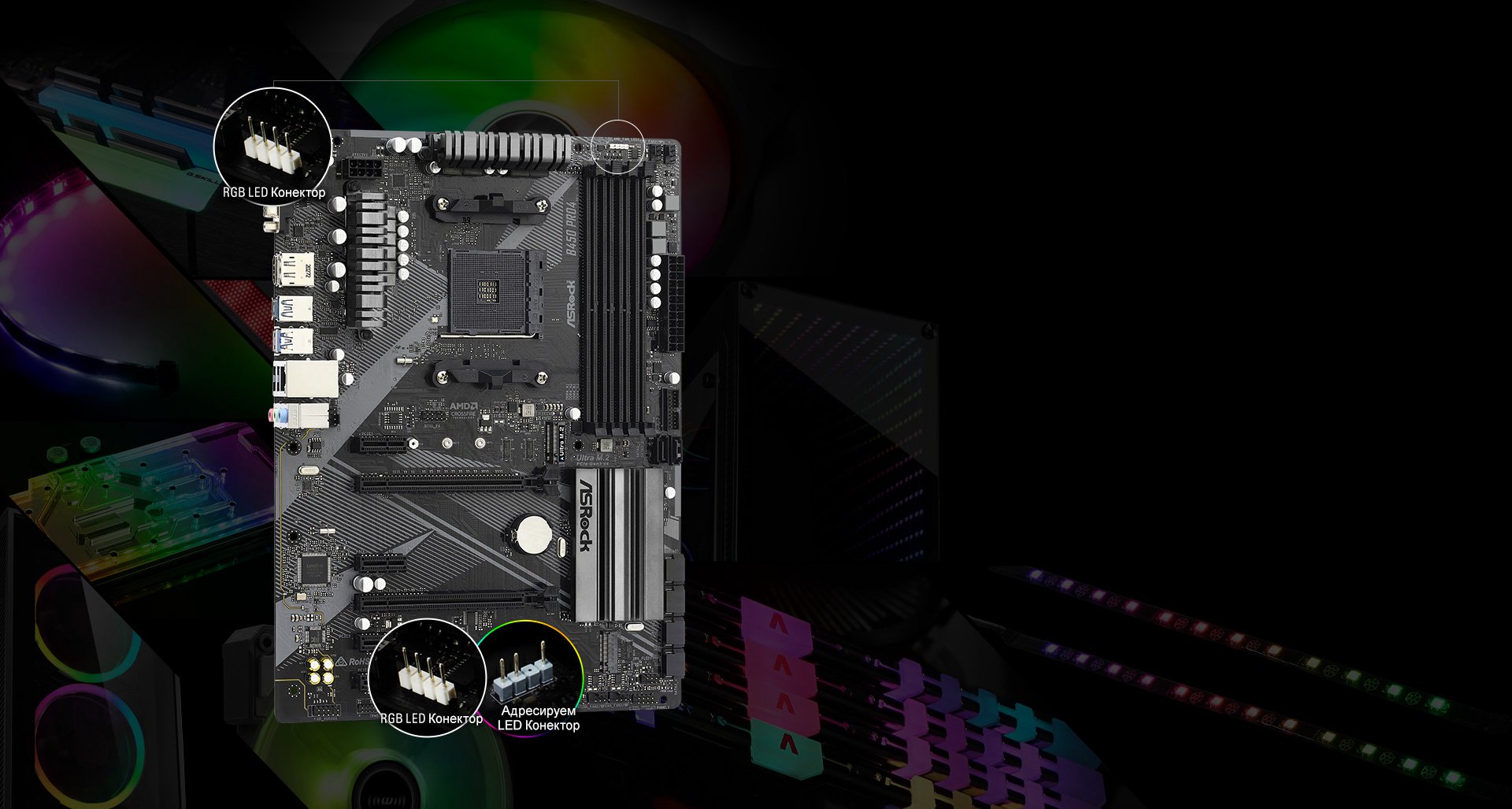

  - 1 x RGB LED Header*
  - 1 x Addressable LED Header**
  - 1 x AMD Fan LED Header***
  - 1 x CPU Fan Connector (4-pin)****
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)



  *Поддържа общо до 12V / 3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  *** Конектора на AMD Вентилатора за LED поддържа LED ленти с максимално натоварване 3А (36W) и дължина до 2,5M.

  ****Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).

  *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
• Заден панел с входове и изходи
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 1 x Порт за дисплей 1.2
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Софтуер и UEFI
  Software
  - ASRock A-Tuning
  - ASRock Polychrome SYNC
  UEFI
  - ASRock Full HD UEFI
  - ASRock Мигновен Flash
  - ASRock Easy RAID Installer



  *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
• Аксесоари
  - I/O Shield
  - 2 x SATA Data Cables
  - 2 x Screws for M.2 Sockets
• Хардуерен монитор
  - Temperature Sensing: CPU, MB
  - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Форм фактор
  - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
  - Solid Capacitor design
• OC
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit*



  *Summit Ridge do not officially support Windows^® 11.
• Сертификати
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

* EOS(End of Service), this product is no longer in production since 2026/Feb, BIOS & Driver update service is no longer available due to lack of support from chipset vendor.
