ASRock 890FX Deluxe4
World's First AMD 890FX MB Supporting Front USB 3.0

July. 30, 2010, Taipei, Taiwan – ASRock Inc., the global leading motherboard manufacturer, is proud to announce its latest motherboard 890FX Deluxe4 today. ASRock 890FX Deluxe4, based on AMD 890FX and SB850 chipsets, supporting 4 SuperSpeed USB 3.0 ports (2 on free-bundled Front USB 3.0 Panel, 2 on back panel) and 8 SATA3 ports. The unique Turbo UCC function allows you to enhance board's capability easily; the exclusive switchable cool heatpipe design makes this board to be a versatile and attractive choice too!

ASRock continuously releases valued motherboard offers of SuperSpeed USB 3.0 technology. As well as USB 3.0 (5 Gb/s), SATA3 (6 Gb/s) and eSATA3 also can be had here. With four USB3.0 ports (two from ASRock's unique Front USB 3.0 Panel, two from back I/O panel), eight SATA3 and eSATA3 connectors, ASRock 890FX Deluxe3 is clearly the one for enthusiasts.

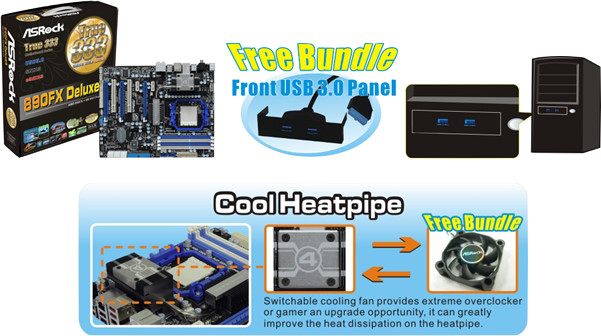

There are three PCI Express X16 slots cater for dual-GPU (ATI™ CrossFireX™, 3-way CrossFireX™ and Quad CrossFireX™) setups, two PCI Express X1 slots, two PCI slots while three DIMM slots support up to 16GB of DDR3 RAM at up to 1866MHz. The back I/O has six USB 2.0, two USB 3.0, one eSATA3, one IEEE1394, a pair of PS/2 ports, coaxial and optical S/PDIF, Gigabit Ethernet, 7.1 CH HD Audio and a Clear CMOS switch with LED. You also get onboard power and reset buttons and a two-digit LED POST display (Dr. Debug). To meet user's various needs, 890FX Deluxe4 is exclusively free-bundled with a switchable Cool Heatpipe Fan. Cool Heatpipe is a considerate and flexible design for extreme overclockers and gamers. The bundled active cooling fan provides an upgrade opportunity to greatly improve the heat dissipation on the heatpipe. If you use the water cooling CPU fan or the high tower CPU fan and want to pursue the utmost system performance during the overclocking, it is recommended to install the active cooling fan. With the easy installation process, you can freely enjoy the benefits brought from Cool Heatpipe.

ASRock 890FX Deluxe4, a full-sized ATX board, is a well-endowed inboard too. It adopts 100% Japan-made high-quality conductive polymer capacitors which can extend the motherboard life to at least 2.5 longer. Additionally, ASRock 890FX Deluxe4 also includes some tweak-friendly tools to bring you an easy-operating computing environment. Special introduce here is ASRock Turbo UCC. Turbo UCC technology, exclusive from ASRock, can provide you an all-in-one solution to unlock the hidden CPU cores in the CPU and get the amazing system performance boost by auto-overclocking, and running the system in a certainly lower power consumption level. The fancy Turbo UCC tool gives an energy-saving overclocking and CPU upgrading process.

890FX Deluxe4 (Brief Specification)

- Support for Socket AM3 processors: AMD Phenom™ II X4 / X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2 processors
- ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
- Advanced V8 + 2 Power Phase Design
- Dual Channel DDR3 1866(OC), non-ECC, un-buffered memory, 4 x DIMM slots, Max. capacity up to 16GB
- 3 x PCI Express 2.0 x16 slots, 2 x PCI Express 2.0 x1 slots, 2 x PCI slots
- ATI™ CrossFireX™, 3-Way CrossFireX™ and Quad CrossFireX™
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9123/9120
- 2 x Rear USB 3.0 ports by NEC MPD720200, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by NEC UPD720200, supports USB 1.0/2.0/3.0 up to 5Gb/s
- 8 x SATA3 6.0 Gb/s connectors
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Power/Reset/Clear CMOS Switch with LED, Dr. Debug
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), supports Blu-ray audio
- Supports ASRock OC DNA, OC Tuner, IES, Instant Boot, Instant Flash, AIWI, APP Charger, Turbo UCC, Multi-Speed Fan Control
- Free Bundle: 1 x Cool Heatpipe Fan; 1 x Front USB 3.0 Panel
