ASRock Mars features slim 26mm thickness with compact 0.74 liter size. With Intel® Core i processor and supports Dual Channel DDR4 memory.

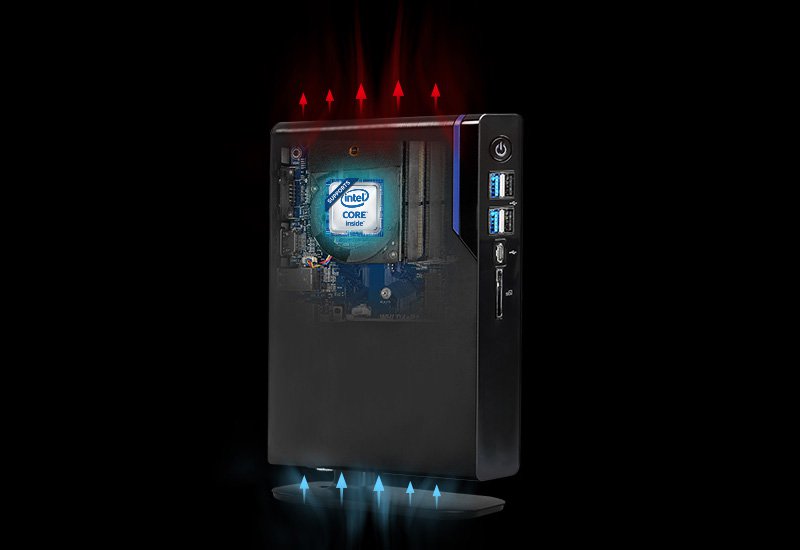

Intel® Core™ i5 Quad Core CPU
Powered by the latest Intel® Core i5 Quad Core processor. Providing immersive computing power.
*Specifications are vary by different models.

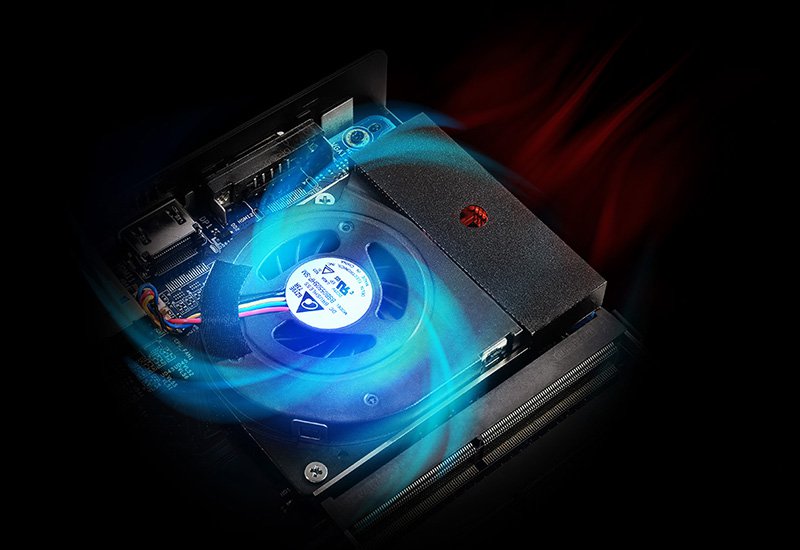

Quiet Cool
Because of high-performance thermal solution. Mars draws less than 24dB at idle and keeps CPU cool in most applications.
*Test environment: the microphone is 50cm away from test machine in Semi-Anechoic chamber

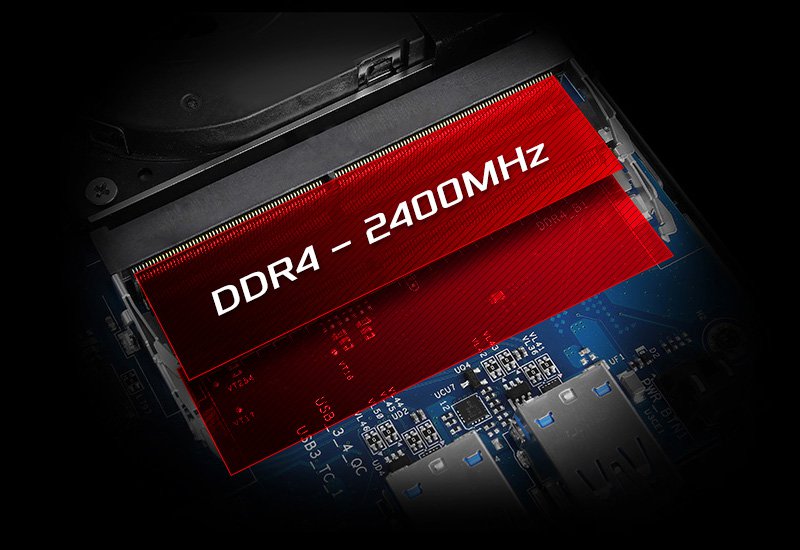

High Speed Memory
ASRock Mars mini PC supports Dual Channel DDR4 memory, up to 64GB; to deliver great performance. DDR4-2400MHz (Core i5 / Core i3) DDR4-2133MHz (Celeron)

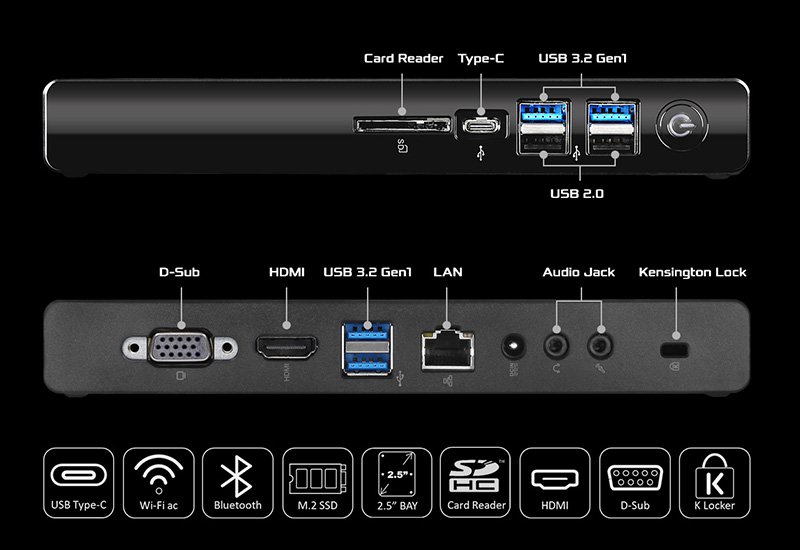

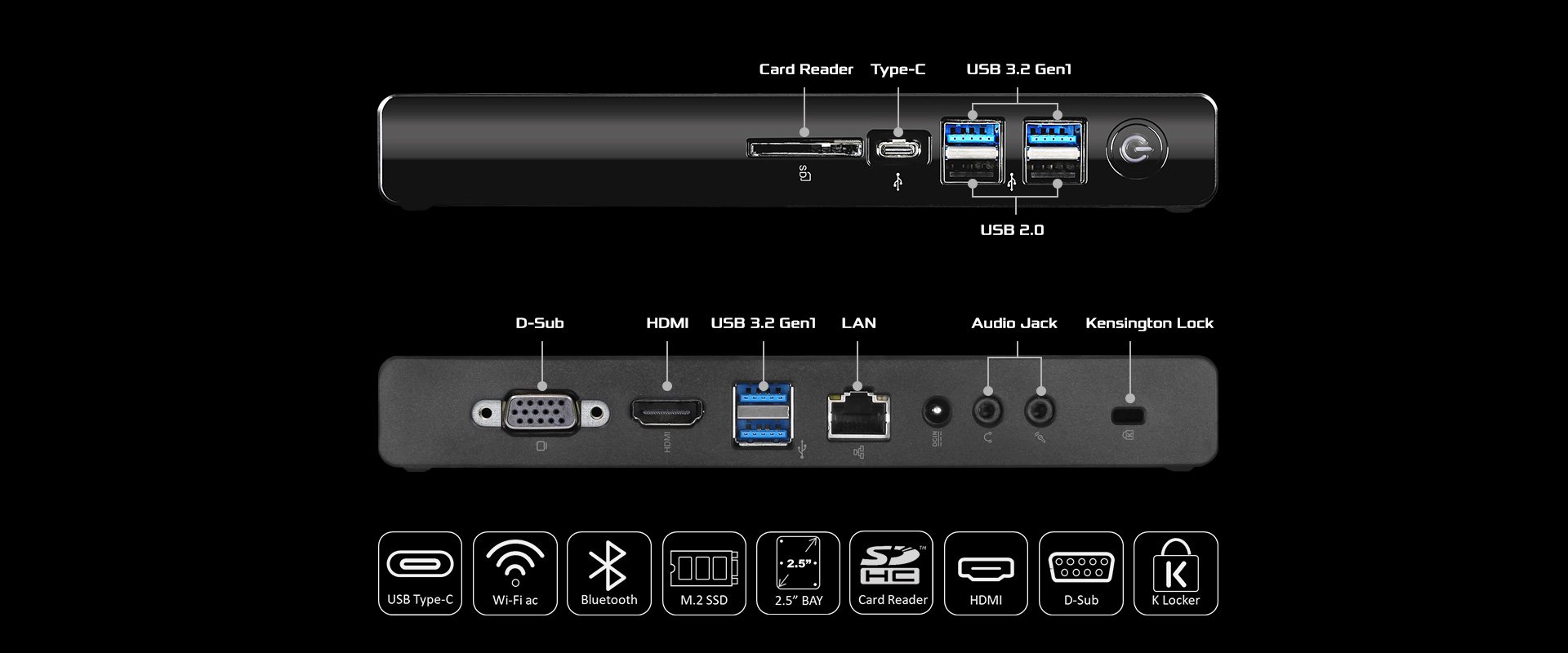

7 USB Ports!
ASRock Mars offers abundant USB devices connectivity, features five easily accessible USB ports on the front panel include one Type-C port. Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Rear: 2 x USB 3.2 Gen1 Type-A
Dual Storages
An M.2 NVMe SSD delivers up to 32Gb high speed and one SATA 6Gb 2.5-inch tray offers large storage capacity. Ultra M.2 (2280) – PCIe Gen3 x4 & SATA 6Gb (Core i5 / Core i3) Ultra M.2 (2280) – PCIe Gen2 x4 & SATA 6Gb (Cerelon) 2.5” SATA 6Gb SSD/HDD Tray
SD Card Reader
Native SD Card Reader to convenience photo access from digital camera and offering extra storage space. Please refer to SD Card support list for best compliant.
Dual Display Output
Expanding desktop by multiplying your screen area, to provide more productive and useful via HDMI (4K@30Hz) and D-Sub (FHD@60Hz), ASRock Mars supports 2 monitors at the same time.
Wireless Connectivity
ASRock Mars supports an M.2 2230 slot for Wireless + Bluetooth module to offer wider connectivity. Optional Intel® AC-3168 Wi-Fi card.
Audio Jack
ASRock Mars retains two audio jacks to let you connect external headphone and microphone.
VESA Mount
For better space planning, ASRock provides VESA mount let you mount Mars behind monitor
Mars-i5-8265U
CPU
- Intel® i5-8265U (4C8T, Turbo 3.9GHz)
Cooler
- Integrate Proprietary Fansink
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- Intel® UHD Graphics 620
Graphics Output
- 1 x HDMI (4K@30Hz) - 1 x D-Sub (1920x1080)
Audio
- 1 x Line Out, 1 x Microphone, Realtek ALC233-VB2
Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps) - 2 x USB 3.2 Gen1 Type-A (5Gbps) - 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A
Storage
- M.2: Type 2280 PCIe Gen3 x4 & SATA 6Gb - 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
LAN
- 1 x RJ45 Gigabit LAN
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Power Unit
- 65W/19V Adapter
Dimension
- 194 x 150 x 26mm (~0.7L)
OS
- Microsoft® Windows® 10 64-bit compliant
Certification
- CE, FCC
Remark
- VESA Mount - Stand
Mars-i3-8145U
CPU
- Intel® i3-8145U (2C4T, Turbo 3.9GHz)
Cooler
- Integrate Proprietary Fansink
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- Intel® UHD Graphics 620
Graphics Output
- 1 x HDMI (4K@30Hz) - 1 x D-Sub (1920x1080)
Audio
- 1 x Line Out, 1 x Microphone, Realtek ALC233-VB2
Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps) - 2 x USB 3.2 Gen1 Type-A (5Gbps) - 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A
Storage
- M.2: Type 2280 PCIe Gen3 x4 & SATA 6Gb - 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
LAN
- 1 x RJ45 Gigabit LAN
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Power Unit
- 65W/19V Adapter
Dimension
- 194 x 150 x 26mm (~0.7L)
OS
- Microsoft® Windows® 10 64-bit compliant
Certification
- CE, FCC
Remark
- VESA Mount - Stand
Mars-C4205U
CPU
- Intel® C4205U (2C2T, 1.8GHz)
Cooler
- Integrate Proprietary Fansink
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- Intel® UHD Graphics 610
Graphics Output
- 1 x HDMI (4K@30Hz) - 1 x D-Sub (1920x1080)
Audio
- 1 x Line Out, 1 x Microphone, Realtek ALC233-VB2
Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps) - 2 x USB 3.2 Gen1 Type-A (5Gbps) - 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A
Storage
- M.2: Type 2280 PCIe Gen2 x4 & SATA 6Gb - 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
