Supports Intel® 9th/8th Gen LGA1151 Processors, up to 65W
USB 3.1 Gen2 Type-C Port
Dual DisplayPort, HDMI
1 x M.2 (2280) PCIe / SATA 6G Slot
1 x 2.5" HDD/SSD Tray
1 x M.2 (2230) Wi-Fi Slot
1 x RS232 (COM) Port*
Support Intel® vPro Technology
Support Intel® Optane™ Technology
178 x 178 x 34mm / 1.07L
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
A set of IT capabilities, including manageability, security and power management, all embedded into the hardware of PCs with Intel® Core™ vPro™ processors. Available even if the OS is inoperable, powered off or hard drive has failed

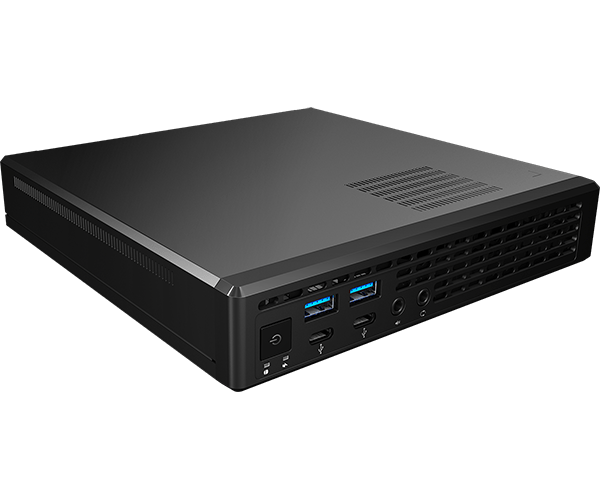

One Liter Compact Desktop
ASRock Jupiter features with book size but including great power and fits everywhere.
Great CPU performance
ASRock Jupiter 300 series supports Intel® 9th and 8th Gen LGA 1151 Processors. Up to 65W and Six Cores to offer great CPU performance.
ASRock Jupiter 300 series adopts dual channel DDR4 SO-DIMMs, supports up to 32GB DDR4-2666MHz high speed memory.
ASRock Jupiter supports various storage and WLAN: - M.2 2280 for PCIe / SATA 6G SSD - Support Intel® Optane™ Technology - 2.5” SSD/HDD 9.5mm Tray - M.2 2230 Wi-Fi connector

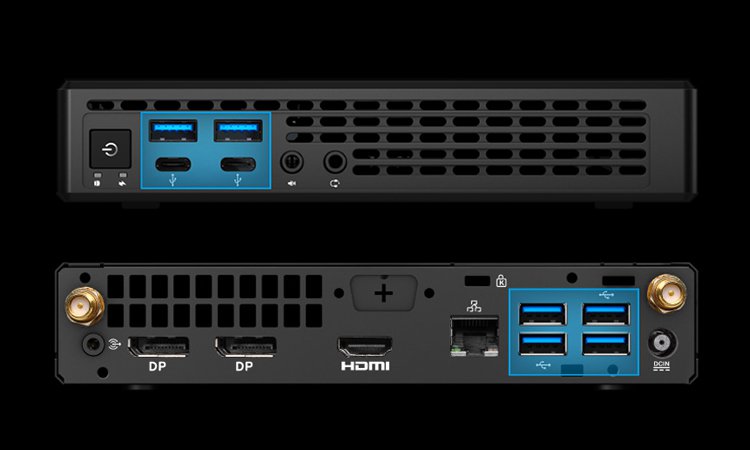

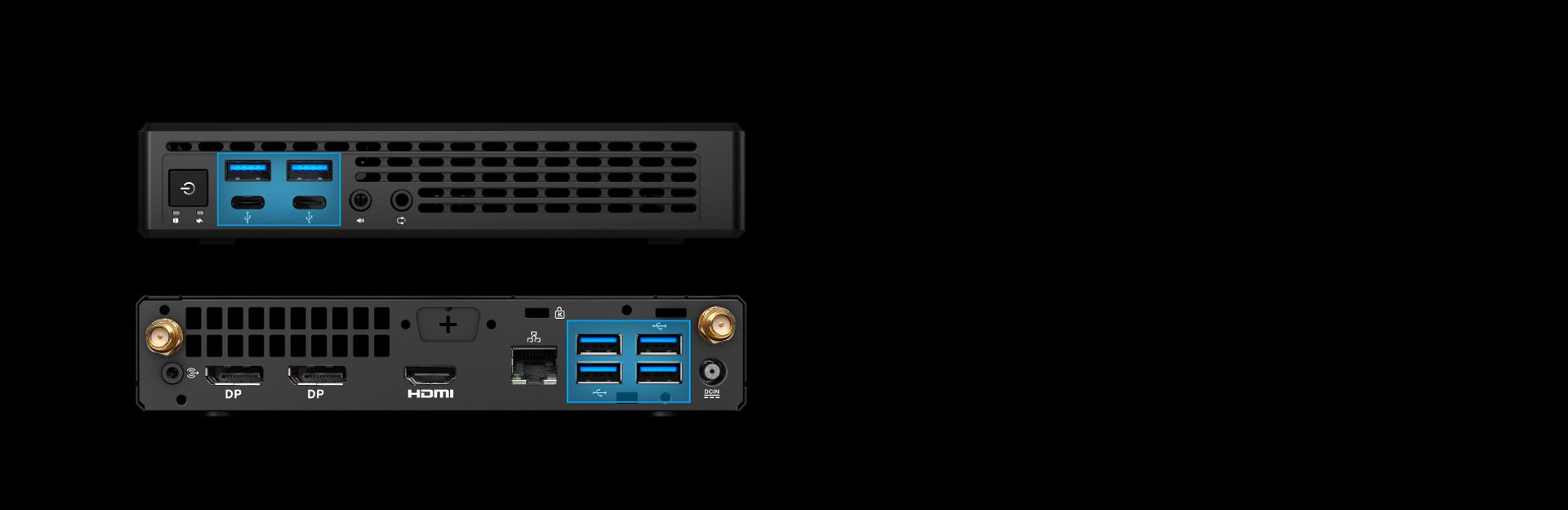

ASRock Jupiter Q370 series supports 8 USB ports: Front Side
- 2 x USB 3.1 Gen 2 Type-C - 2 x USB 3.1 Gen 1 Type-A Rear - 4 x USB 3.1 Gen 1 Type-A

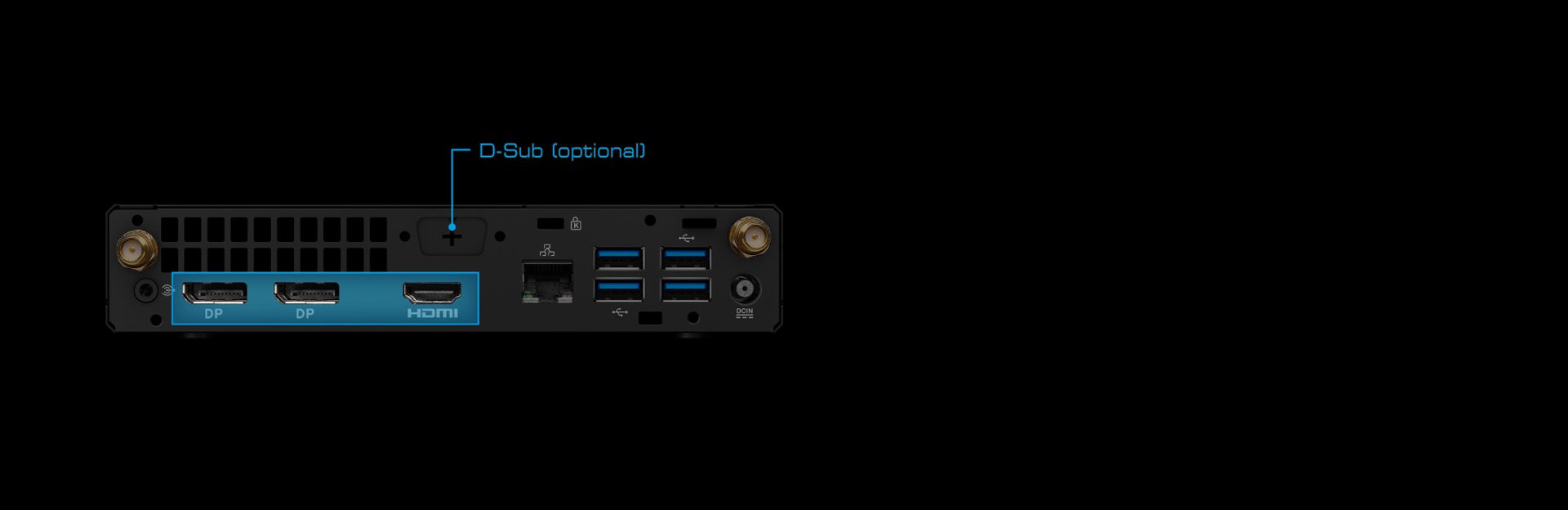

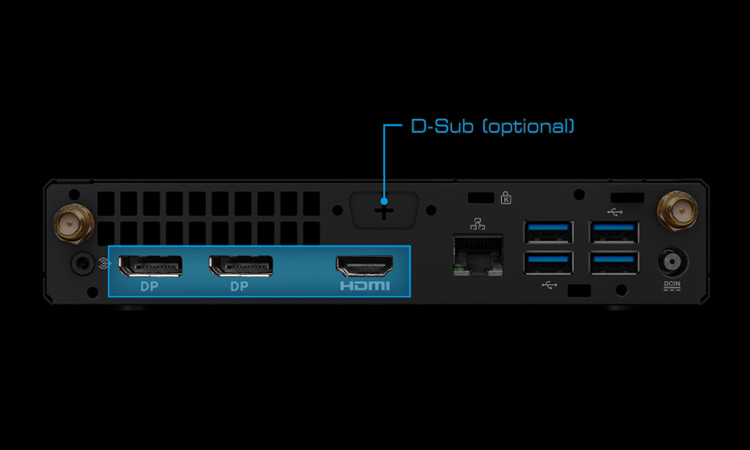

Multi Display Outputs
ASRock Jupiter Q370 series supports multi display for improved productivity and higher flexibility. Dual DisplayPort, HDMI, D-Sub (optional)
*Supports up to 3 displays simultaneously
VESA Mount & Stand
For better space planning, ASRock provide flexible placing accessories. Tri-direction VESA mount let you mount Jupiter behind monitor, or try vertical stand to save desk space.
- Supports Intel® 9th/8th Gen LGA1151 Processors (Max. TDP 65W)
- Integrated Cooling Solution
- Supports 2 x SO-DIMM DDR4-2666MHz, Max. 32GB (non-ECC)
- Intel® Q370
- Integrated Intel® UHD Graphics
- 1 x HDMI (4K@30Hz) - 2 x DisplayPort (4K@60Hz) - 1 x D-Sub*
*D-Sub shared with COM Port Supports up to 3 displays simultaneously.
- 1 x Head Phone with Mic Jack - 1 x Mic-In - 1 x 2W Speaker - Realtek ALC233
- 2 x USB 3.1 Gen2 Type-C - 2 x USB 3.1 Gen1 Type-A
- 4 x USB 3.1 Gen1 Type-A
- M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb - 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x RJ45 Gigabit LAN - Intel® Intel® I219LM
- Intel® AC-3168 Wi-Fi Module
- 1 x 4-Pin Fan Connector - 1 x DC-In Jack (Supports 19V Power Adapters) - 1 x Internal Speaker Header - 1 x 2-Pin Chassis Intrusion Header
- Support VESA standard 100 x 100mm & 75 x 75mm
- 90W/19V Adapter
- 1 x SATA Data with Power Cable - 1 x Screws Pack - 1 x Stand - 2 x Antenna
- Motherboard: 170 x 170mm (Proprietary) - Barebones: 178 x 178 x 34mm (1.0L)
