DeskMini GTX (Z390)

Supports Intel^® 9th / 8th Core™ / Pentium^® / Celeron^® CPU, up to 95W
Discrete MXM slot with Type A/B/B+, up to GeForce GTX1080
Dual DDR4 SO-DIMMs, up to 32GB, supports DDR4 4000+ (OC)
POLYCHROME Addressable RGB
4K@60Hz video outputs: HDMI, DisplayPort, mini DisplayPort
3 x Ultra M.2 PCIe Gen3 x4 Slots
Supports Intel^® Optane™ Technology
USB 3.1 Gen2 type-C port
Brand new Micro STX platform
2.7 Liter tiny size

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support
Where to Buy

POLYCHROME RGB

Onboard RGB headers and an addressable RGB header that allow DeskMini GTX/RX to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

DeskMini GTX1080 (Z390)

CPU
- Supports Intel^® 9th/8th Gen LGA1151 Processors (Max. TDP 95W)
Cooling
- Supports Intel^® LGA115x CPU Cooler (Max. Height ≦ 46mm)
Memory
- Supports 2 x SO-DIMM DDR4-4000+MHz (OC), Max. 32GB (non-ECC)
Chipset
- Intel^® Z390
Graphics
- NVIDIA^® GeForce GTX 1080 (8GB GDDR5)
Graphics Output
- 1 x HDMI (4K@30Hz)
- 1 x HDMI (4K@60Hz)
- 1 x DisplayPort (4K@60Hz)
- 1 x mini DisplayPort (4K@60Hz)
Audio
- 1 x Head Phone with Mic Jack
- 1 x Mic-In
- Realtek ALC233VB
Front USB
- 1 x USB 3.1 Gen2 Type-C
- 1 x USB 3.1 Gen2 Type-A
Rear USB
- 2 x USB 3.1 Gen2 Type-A
- 2 x USB 3.1 Gen1 Type-A
LAN
- 1 x RJ45 Gigabit LAN
- Intel^® Gigabit I219V
Storage
- M.2_1: Type 2280/2260 PCIe Gen3 x4 & SATA 6Gb
- M.2_2: Type 2280/2260/2242 PCIe Gen3 x4
- M.2_3: Type 2280/2260 PCIe Gen3 x4 & SATA 6Gb
- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
WiFi
1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors
- 2 x USB 2.0 Headers
- 1 x Front Panel Header
- 2 x 4-Pin Fan Connectors
- 1 x GPU Fan Connector
- 1 x 4-Pin DC Power DIN (Supports 19V Power Adapters)
- 1 x 2-Pin 19V Power Connector
- 1 x 4-Pin Audio Header
- 1 x Addressable LED Header
- 1 x RGB LED Header
Power Unit
- 270W/19V Adapter
Accessory
- 2 x SATA Data with Power Cable
- 1 x Screws Pack
- 1 x Intel^® AC-3168 Wi-Fi Kit
Dimension
- Motherboard: 5.8" x 7.4" (Micro-STX)
- Barebones: 213 x 154.5 x 81.9 mm (2.7L)
Security
- Kensington Lock
- Key Lock
OS
- Microsoft^® Windows^® 10 64-bit compliant
Certification
- CE, FCC

Description	Language	Download
User Manual	English	Global	China
Quick Installation Guide	Multi-Language	Global	China

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

The Small Big

Overview of Z390M-STX MXM

8 Core Power

4 GHz Memory!

2X Faster USB

POLYCHROME RGB

Discrete MXM Graphics

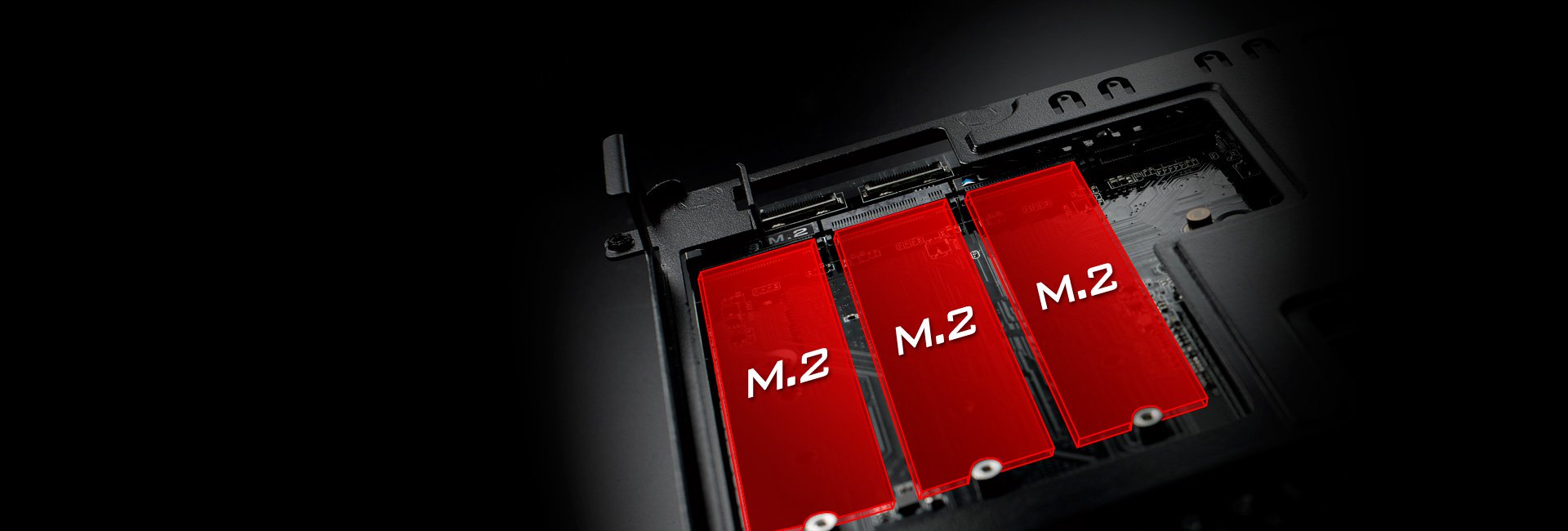

Triple Ultra M.2

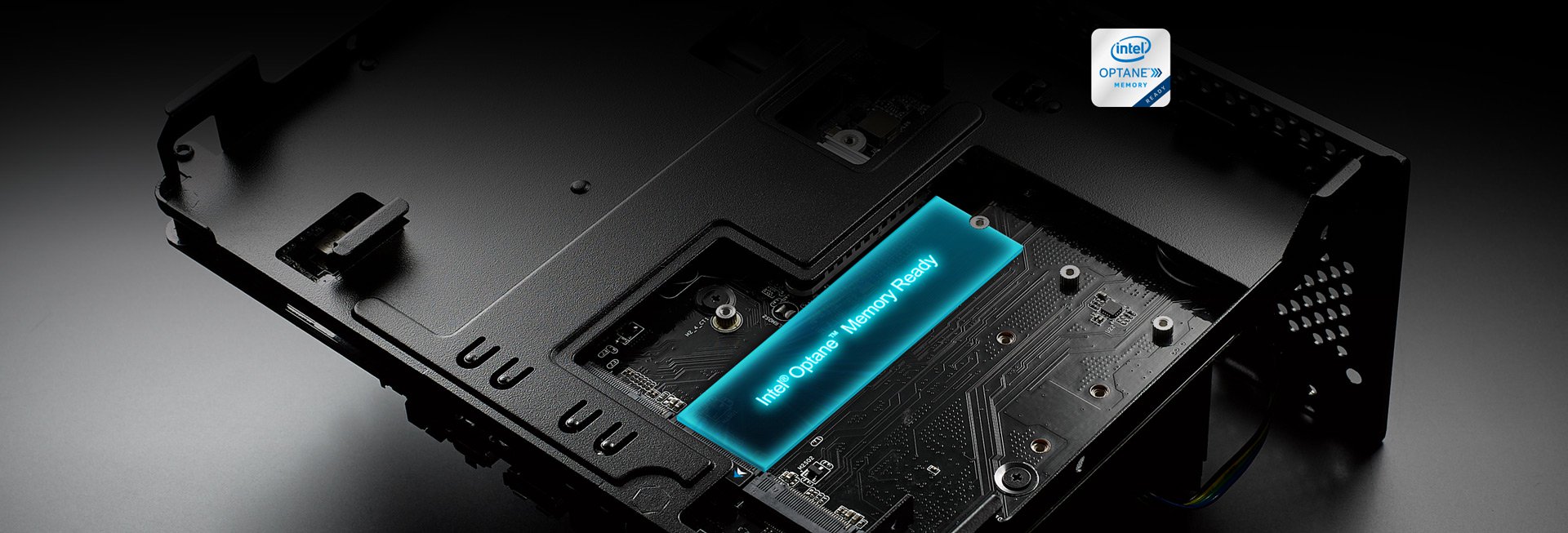

Intel^® Optane™ Memory Ready
