DeskMini 4205 Series

Intel^® Celeron^® Processor 4205U
Dual Channel DDR4 SO-DIMMs, up to 64GB
Multi Video Outputs：1 x DisplayPort, HDMI & D-Sub
2 x RJ-45 LAN Ports

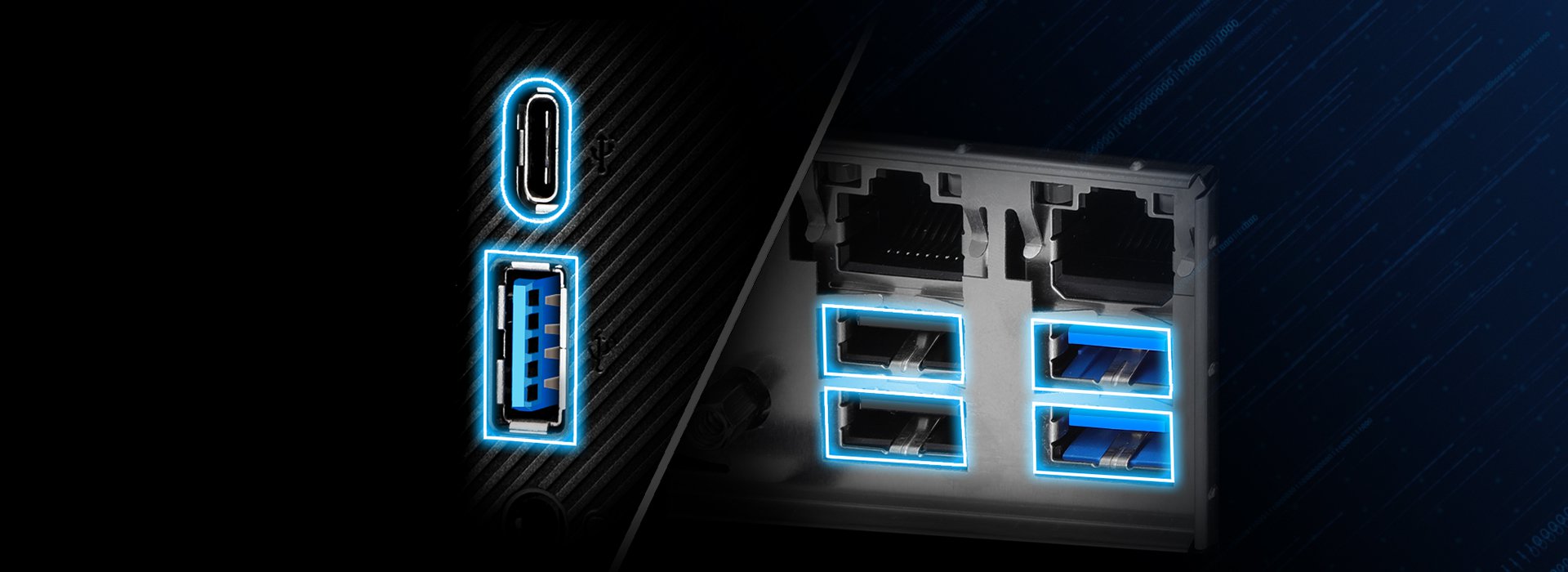

1 x USB 3.2 Gen1 Type-C port
3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0
2 x M.2 2280 SSD Slots
2 x 2.5" HDD/SSD
2 x COM ports
1 x M.2 Key-E for Wi-Fi

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

DeskMini 4205 Series

CPU
- Intel^® Celeron^® Processor 4205U (2M Cache, 1.80 GHz)
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- Intel^® UHD Graphics 610 (Intel^® Celeron^® 4205U)
Audio
- Realtek ALC269 Audio Codec
Storage
- 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Ultra M.2 Socket (M2_1), support type 2280 PCIe Gen2x4 (with 4205U)
- 1 x M.2 Socket (M2_2), supports type 2280 PCIe Gen2x2 (with 4205U)

*Supports NVMe SSD as boot disks
LAN
- 2 x Realtek RTL8111H
WLAN
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
Front I/O
- 1 x MIC-In
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
- 1 x Head Phone with MIC Jack
Rear I/O
- 1 x DC-In Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2*
- 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED

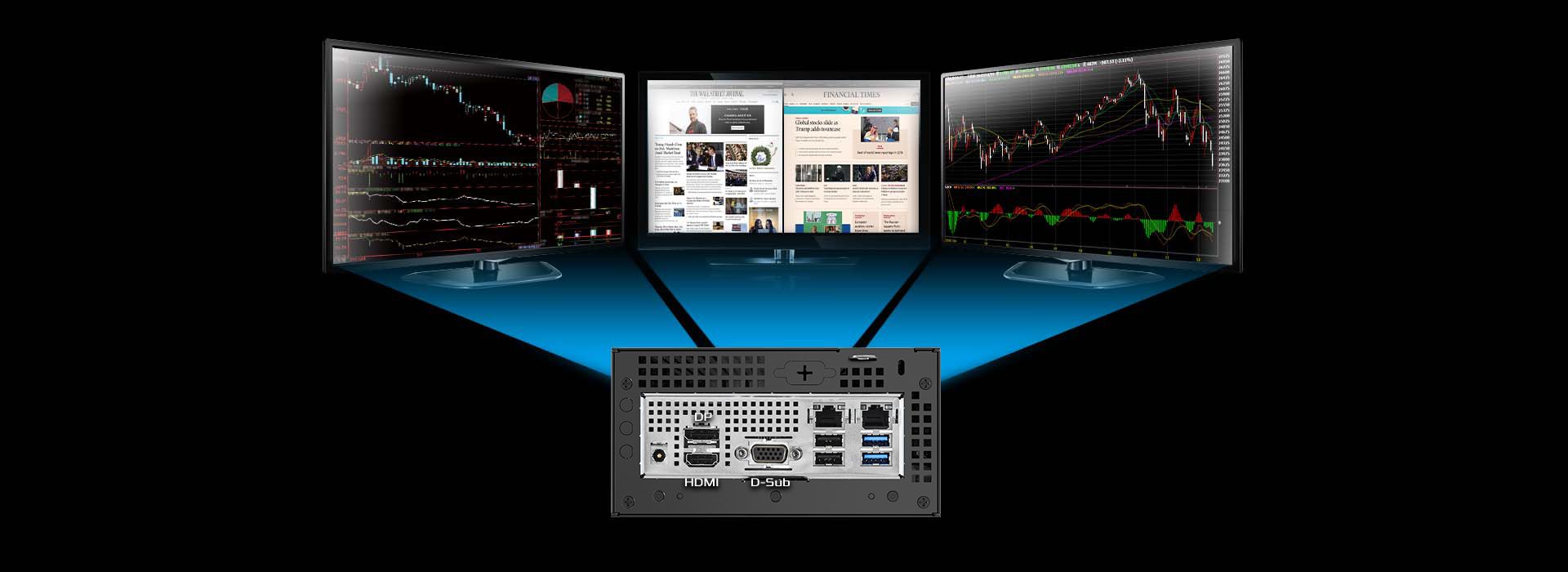

*Supports up to 3 displays simultaneously
Connectors
- 1 x USB 2.0 Header*
- 1 x Front Panel Header
- 2 x CPU fan connectors (4-Pin)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Audio Header (4-Pin)

*Supports 2 USB 2.0 ports with i3-8145U or 1 USB 2.0 port with 4205U
Accessory
- 2 x SATA Data with Power Cable
- 1 x 65W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit

Description	Language	Download
User Manual (WHLM-STX)	English	Global	China
Quick Installation Guide (WHLM-STX)	Multi-Language	Global	China
Quick Installation Guide (WHLM-STX)	简体中文 (S.Chinese)	Global	China
Quick Installation Guide (WHLM-STX)	繁體中文 (T.Chinese)	Global	China
DeskMini Addressable LED Quick Installation Guide	English	Global	China
DeskMini USB Hub Quick Installation Guide	English	Global	China
DeskMini VESA Mount Kit Quick Installation Guide	English	Global	China
DeskMini WiFi Cable Quick Installation Guide	English	Global	China
DestMini USB2.0 Front Panel Quick Installation Guide	English	Global	China
