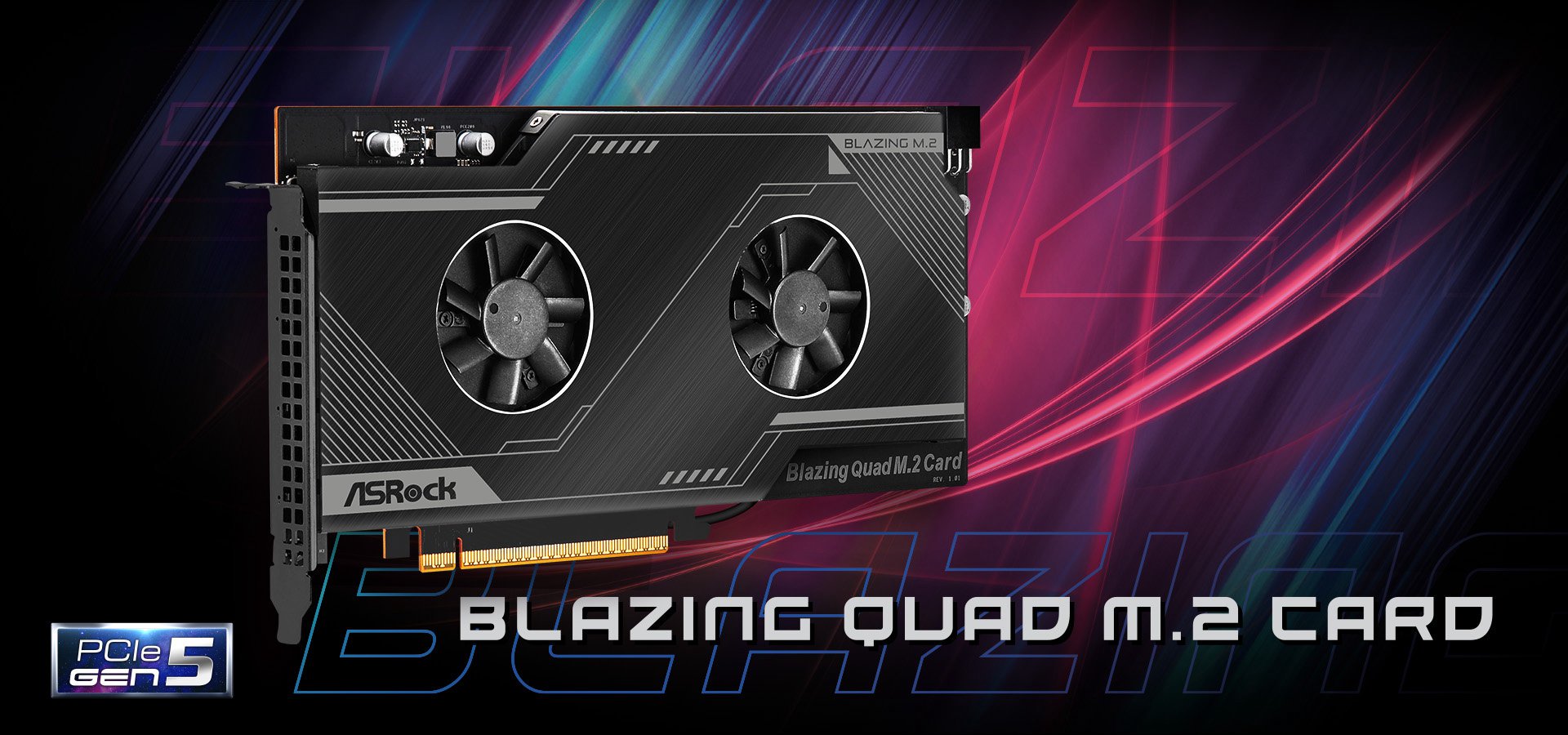

Blazing Quad M.2 Card
PCI Express 5.0x16 interface
Supports 4*2242/2260/2280/2580/22110/25110 M.2 SSD up to Gen5 x4 128Gb/s
XXL aluminum cooling fin
Dual variable speed cooling fan
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
Ultimate High-Performance Storage Expansion
Unleash the full potential of PCIe Gen5 performance capability!

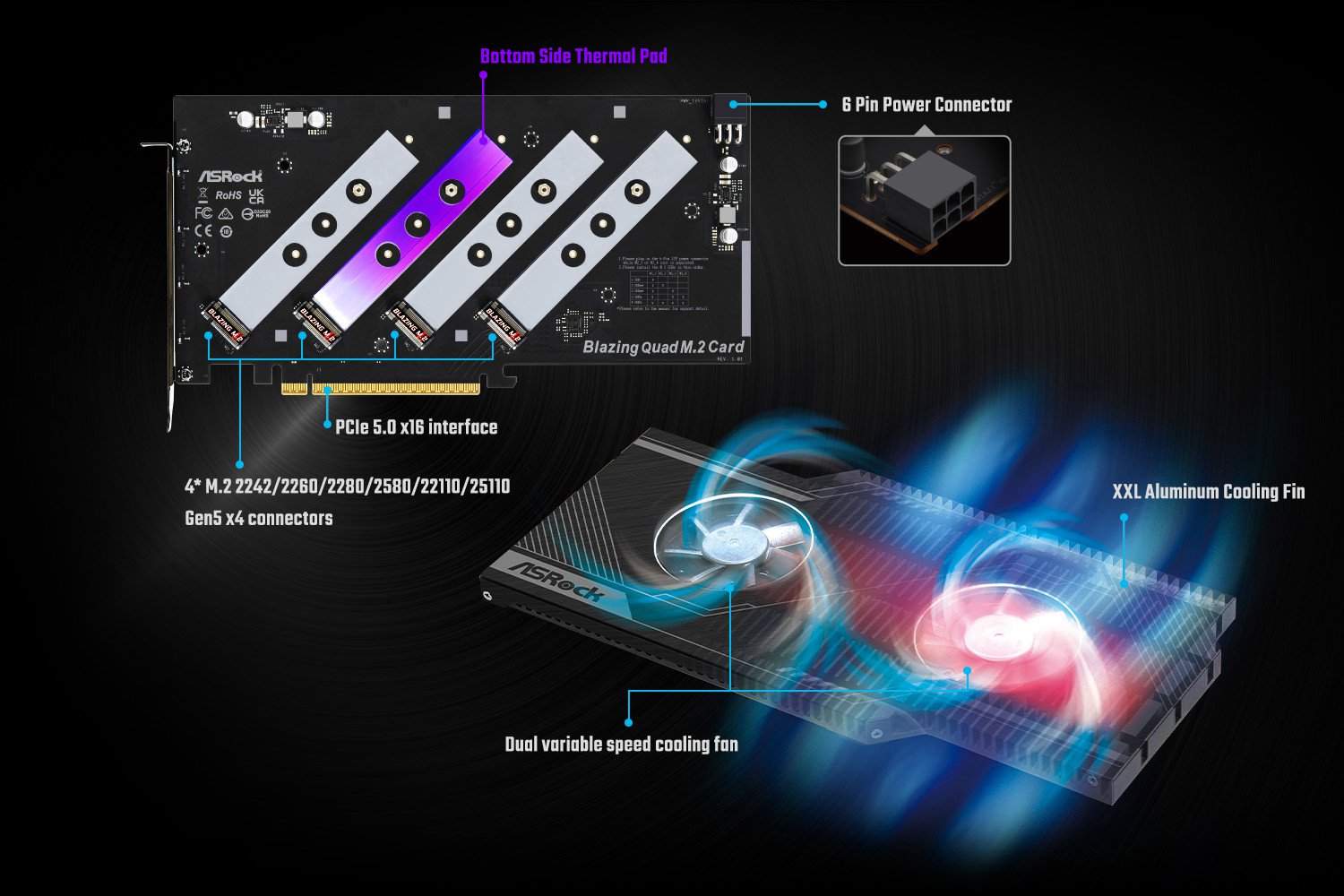

Premium Thermal Solution for Uncompromised Performance
To optimize the cooling of 4 high speed PCIe 5.0 M.2 SSDs, thermal pad, XXL aluminum heatsink and dual variable speed cooling fans is added to keep the SSD cool while maintaining peak performance.

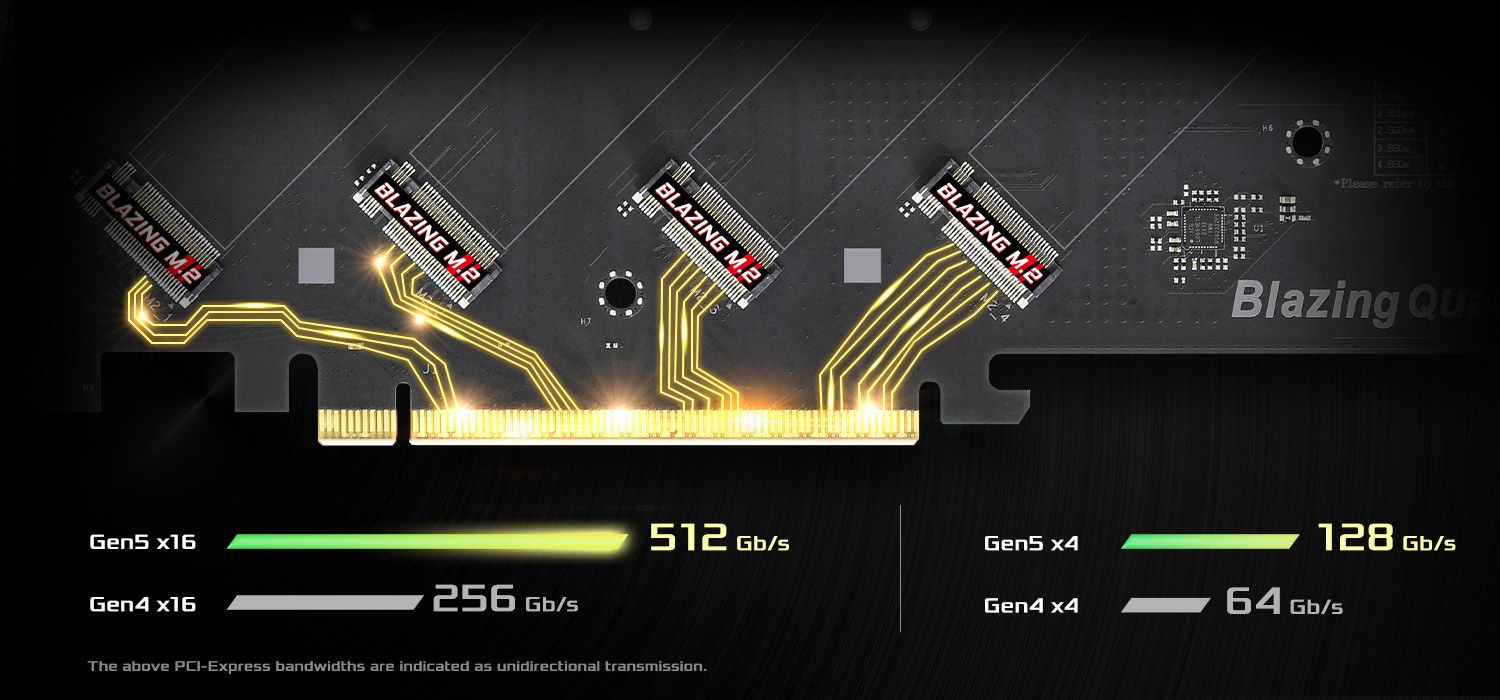

Smart Design For Better Performance
PCIe 5.0 performs twice the bandwidth compared to previous generation, the 4 x M.2 slots are also oriented at a 45-degrees angle to keep the signal traces as short as possible, giving better signal integrity for high speed data transferring.
*This graph is for simulation only

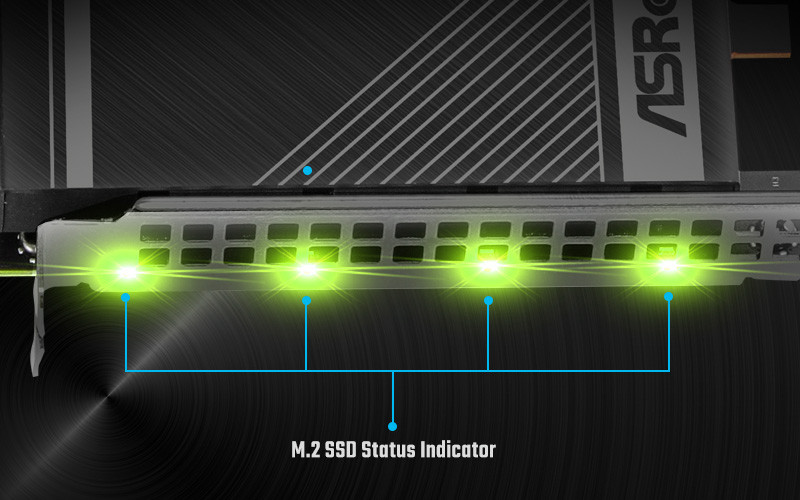

M.2 Status LED
The ASRock Blazing Quad M.2 Card has built-in 4 status LED which can be seen through the bracket, making it super easy to monitor the read/write status of your SSD drive.
- 9.60-in x 4.97-in
- PCI Express 5.0x16 interface
- 4 x Blazing M.2 Sockets (Key M), supports type 2242/2260/2280/2580/22110/25110 PCIe Gen5x4 (128 Gb/s) mode. - 1 x Graphics 12V Power Connector
- 1 x User Manual - 4 x M.2 screws
