• Egyéni tuljadonságok
  ASRock USB 3.2 Gen2
  - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
  - ASRock Thunderbolt™ 3 Type C USB 3.2 Gen2 Ports (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol)
  ASRock Super Alloy
  - XXL Aluminum Alloy Heatsink
  - Premium 60A Power Choke
  - 60A Dr. MOS
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - Matte Black PCB
  - High Density Glass Fabric PCB
  - 8 Layer PCB
  - 2oz Copper PCB
  AQUANTIA^® / Marvel 10G LAN
  Intel^® 802.11ax WiFi
  ASRock Steel Slots
  ASRock Full Coverage M.2 Heatsink
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Ultra USB Power
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• Processzor
  - Supports Intel^® Core™ X-Series Processor Family for the LGA 2066 Socket (Cascade Lake-X, Skylake X Refresh and Skylake X)
  - Digi Power design
  - 13 Power Phase design
  - Supports Intel^® Turbo Boost Max Technology 3.0
• Chipset
  - Intel^® X299
• Memória
  - Quad Channel DDR4 Memory Technology
  - 8 x DDR4 DIMM Slots
  - Supports DDR4 4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  - Max. capacity of system memory: 256GB
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots



  *Intel^® X299 does not support 1Rx16 memory modules.
  The maximum memory frequency supported may vary by processor type.
• BIOS
  - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
  - Supports Secure Backup UEFI Technology
  - ACPI 6.1 Compliant wake up events
  - SMBIOS 3.0 Support
  - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCSA, VCCPLL, CLK VDD Voltage Multi-adjustment
• Videokártyák
  - n/a
• Audio
  - 7.1 CH HD Audio with Content Protection támogatás (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Supports Purity Sound™ 4
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB isolate shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports DTS Connect
• LAN
  1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA^® / Marvell AQC107):
  - Supports Lightning/ESD Protection
  - Supports PXE
  1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I219V)
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Wireless LAN
  - Intel^® 802.11ax WiFi Module
  - Supports IEEE 802.11a/b/g/n/ax
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 2.4Gbps
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.0 + High speed class II
  - Supports MU-MIMO
• Slotok
  - 4 x PCI Express 3.0 x16 Slots*
  - 1 x PCI Express 3.0 x1 Slot
  - Supports AMD 3-Way CrossFireX™ and CrossFireX™**
  - Supports NVIDIA^® 3-Way SLI™ and SLI™**
  - NVIDIA^® NVLink™ támogatás két NVIDIA^® GeForce RTX grafikus kártyával***
  - Support NVIDIA^® SLI™ with NVIDIA^® Quadro graphics cards
  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)



  *If you install CPU with 48 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x8.
  If a M.2 PCI Express module is installed on M2_1 or M2_2, PCIE2 will downgrade to x4 mode.
  If M.2 PCI Express modules are installed on M2_1 and M2_2, PCIE2 will be disabled.
  44 sávos CPU telepítése esetén a PCIE1/PCIE2/PCIE3/PCIE5 x16/x4/x16/x8 sebességen működik.
  If a M.2 PCI Express module is installed on M2_1, PCIE2 will be disabled.
  If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0.
  If a M.2 PCI Express module is installed on M2_1, PCIE2 will be disabled.
  NVMe SSD-k támogatása rendszerindító lemezként

  **3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 48 lanes or 44 lanes.

  ***Az NVIDIA^® NVLink™ híd nem a csomag része. Az NVIDIA^® NVLink™ híd nem a csomag része..
• Tárolás
  - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug*
  - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  - 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
  - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**



  *Ha az M2_3 foglalatban SATA-típusú M.2 eszköz van, a SATA3_7 funkciója kikapcsol.

  **If you install CPU with 44 or 28 lanes, M2_2 will be disabled.
  Supports Intel^® Optane™ Technology M10 Series (M2_3 only)
  Supports PCIe RAID
  NVMe SSD-k támogatása rendszerindító lemezként
• Csatlakozó
  - 1 x Virtual RAID On CPU Header
  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header

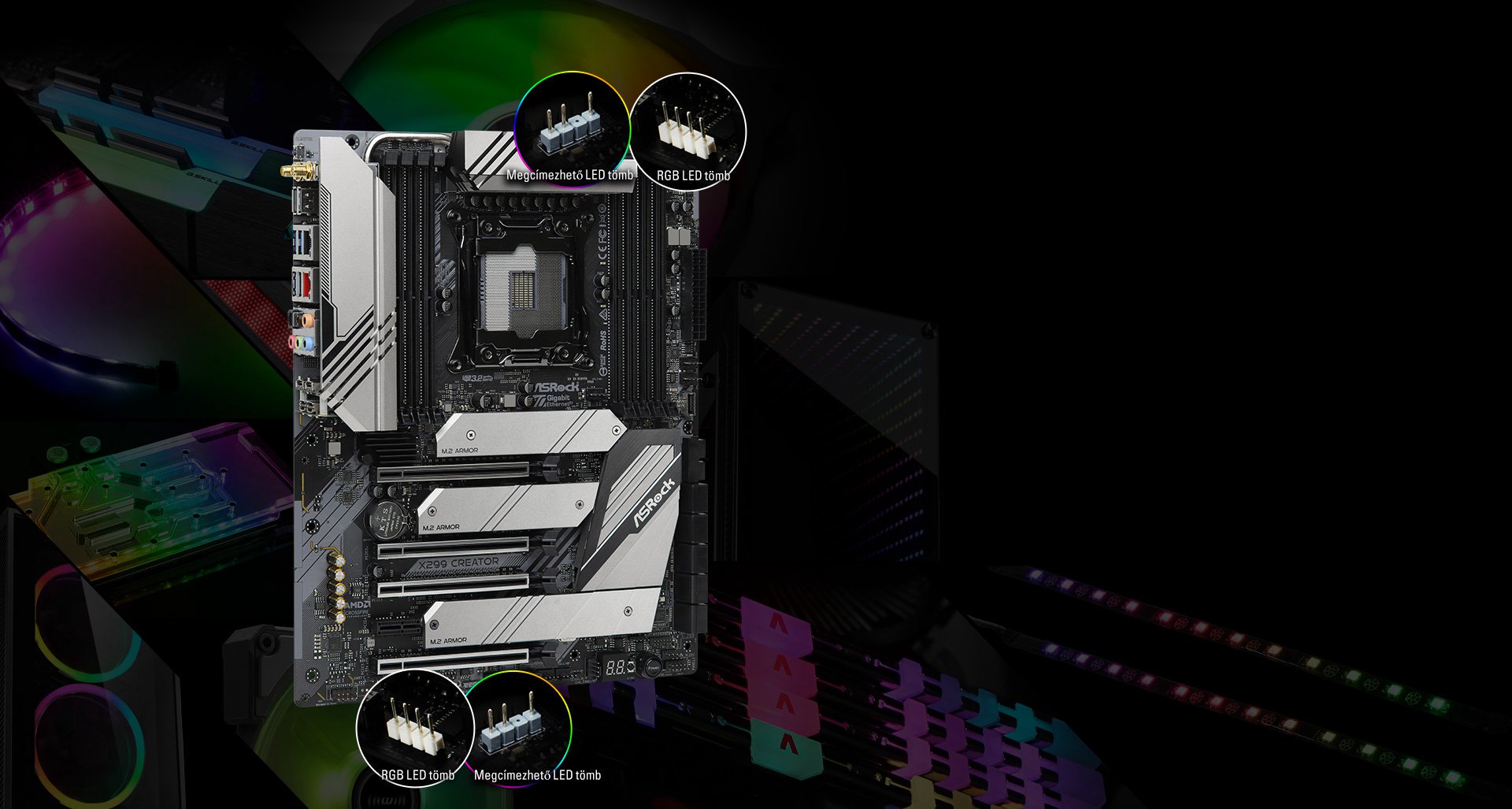

  - 2 x RGB LED Headers*
  - 2 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
  - 1 x Front Panel Type C USB 3.2 Gen2 Header (ASMedia ASM3142)
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button



  *Összesen akár 12 V/3 A, 36 W teljesítményű LED csík támogatása

  **Support in total up to 5V/3A, 15W LED Strip

  ***A CPU ventilátor csatlakozó legfeljebb 1 A (12 W) áramfelvételű CPU ventilátort támogat.

  ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
• Hátsó panel I/O
  - 2 x Antenna Ports
  - 1 x Optical SPDIF Out Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 2 x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Ports (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)*
  - 2 x Mini DisplayPort Input Ports**
  - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)***
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Button
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



  *Supports USB-PD 3.0 9V/3A(27W) and 5V/3A(15W)

  **Please choose regular mini DisplayPort to DisplayPort adapter Cables instead of right angled ones if you use two mini DisplayPort input ports simultaneously.

  ***Az Ultra USB Power tápellátást az USB3_34 portok szolgáltatják.
  Az ACPI felébresztés funkció nem támogatott az USB3_34 portokon.
• Szoftver és UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Polychrome SYNC
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Kiegészítők
  - I/O Shield
  - 4 x SATA Data Cables
  - 1 x ASRock SLI_HB_Bridge_2S Card
  - 1 x ASRock WiFi 2.4/5 GHz Antenna
  - 3 x Screws for M.2 Sockets
  - 3 x Standoffs for M.2 Sockets
• Hardware Monitor
  - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA
• Form Factor
  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 8 Layer PCB
  - 2oz Copper PCB
• Operációs rendszer
  - Microsoft^® Windows^® 10 64-bit
• Tanusítványok
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

Fenntartjuk a jogot a specifikációk előzetes bejelenetés nélküli megváltoztatására. A márka- és terméknevek a tulajdonosaik bejegyzett védjegyei. Az eredeti termék-specifikációtól eltérő konfigurációra nem vonatkozik garancia.

A fenti felhasználói felület képe csak példa. A tényleges felhasználói felület változhat a frissített szoftververzióval.
