• Unique Feature
  ASRock Super Alloy

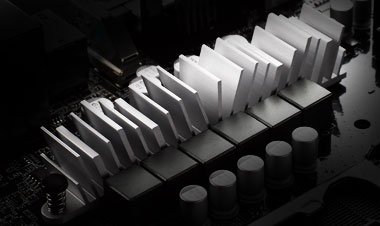

  - XXL Aluminum Alloy Heatsink
  - Premium 40A Power Choke
  - I/O Armor
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology

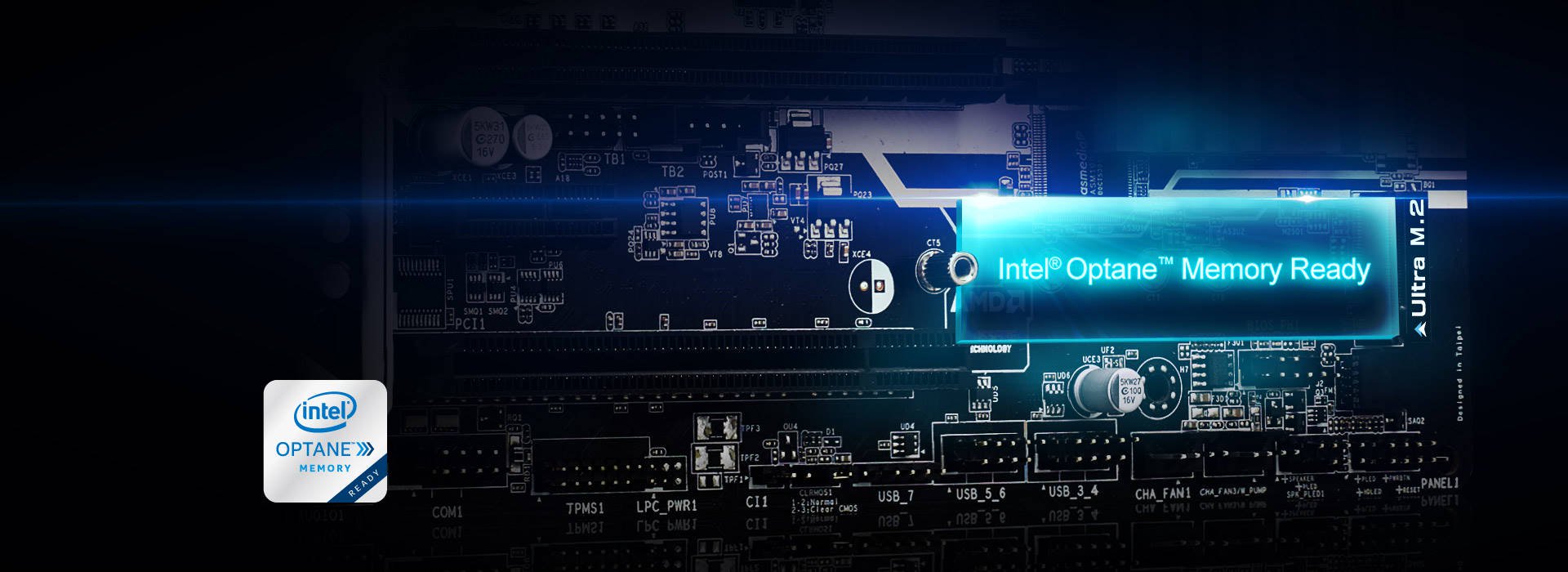

  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection
  ASRock Live Update & APP Shop
• CPU
  - Supports 7^th and 6^th Generation Intel^® Core™ i7 / i5 / i3 / Pentium^® / Celeron^® Processors (Socket 1151)
  - Digi Power design
  - 8 Power Phase design
  - Supports Intel^® Turbo Boost 2.0 Technology
• Chipset
  - Intel^® H270
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - Supports DDR4 2400/2133 non-ECC, un-buffered memory*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB*
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
  7th Gen Intel^® CPU supports DDR4 up to 2400; 6^th Gen Intel^® CPU supports DDR4 up to 2133.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU, GT_CPU, DRAM, VPP, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment
• Graphics
  - Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics
  - Gen9 LP, DX11.3, DX12
  - HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7^th Gen Intel^® CPU)
  - HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6^th Gen Intel^® CPU)
  - Max. shared memory 1024MB*
  - Three graphics output options: D-Sub, DVI-D and HDMI
  - Supports Triple Monitor
  - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with DVI-D and HDMI Ports
  - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports



  *Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **The size of maximum shared memory may vary from different operating systems.

  ***Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.

  ****Intel^® InTru™ 3D is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.
• Audio
  - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  - Premium Blu-ray Audio support
  - Supports Surge Protection (ASRock Full Spike Protection)
  - ELNA Audio Caps



  *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Giga PHY Intel^® I219V
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
  - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
  - 1 x PCI Slot
  - Supports AMD Quad CrossFireX™ and CrossFireX™

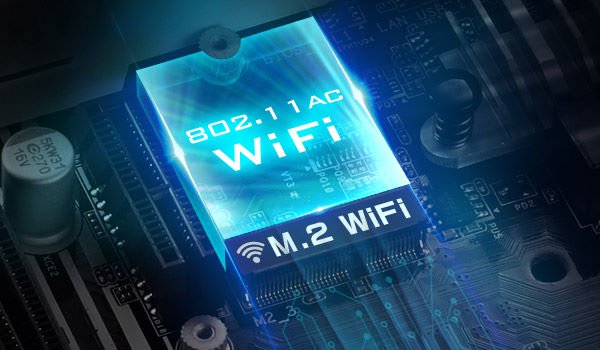

  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module



  *Supports NVMe SSD as boot disks
  If PCIE5 slot or PCI slot is occupied, PCIE4 slot will run at x2 mode.
• Storage
  - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
  - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**



  *If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
  If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

  **Supports Intel^® Optane™ Technology
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Chassis Intrusion Header
  - 1 x Power LED and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt™ AIC Connector (5-pin)
  - 1 x Thunderbolt™ AIC Connector (10-pin)***
  - 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))



  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
  CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

  ***Only one Thunderbolt™ AIC Card is supported.
• Rear Panel I/O
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock A-Tuning
  - ASRock APP Charger*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Crashless BIOS
  - ASRock UEFI System Browser
  - ASRock UEFI Tech Service
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - I/O Shield
  - 2 x SATA Data Cables
  - 3 x Screws for M.2 Sockets
• Hardware Monitor
  - Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans
  - Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPP, PCH 1.0V, VCCIO, VCCSA, VCCST
• Form Factor
  - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
  - Solid Capacitor design
• OS
  - Microsoft Windows^® 10 64-bit (For 7^th Gen Intel^® CPU)
  - Microsoft Windows^® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6^th Gen Intel^® CPU)*



  *To install Windows^® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
  For the updated Windows^® 10 driver, please visit ASRock's website for details.
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

* EOS(End of Service), this product is no longer in production since 2019/Nov, BIOS & Driver update service is no longer available due to lack of support from chipset vendor.
