ASRock > Материнские платы cравнить pезультат

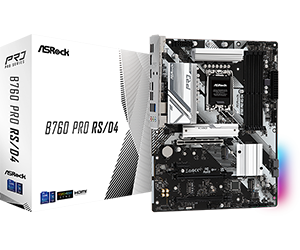

Модель	B760M Pro-A/D4 WiFi	B760 Pro RS/D4

Форм-фактор	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Уникальная Особенность	Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT - ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN, Killer 802.11axe Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker	Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield - ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Процессор	- Supports 14th, 13th & 12th Gen Intel^® Core™ Processors (LGA1700) - Supports Intel^® Hybrid Technology - Supports Intel^® Turbo Boost Max 3.0 Technology - Supports Intel^® Thermal Velocity Boost (TVB) - Supports Intel^® Adaptive Boost Technology (ABT)	- Supports 14th, 13th & 12th Gen Intel^® Core™ Processors (LGA1700) - Supports Intel^® Hybrid Technology - Supports Intel^® Turbo Boost Max 3.0 Technology - Supports Intel^® Thermal Velocity Boost (TVB) - Supports Intel^® Adaptive Boost Technology (ABT)
Чипсет	- Intel^® B760	- Intel^® B760
Память	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB** - Supports Intel^® Extreme Memory Profile (XMP) 2.0 * 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel^® Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
Слоты	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module and Intel^® CNVio / CNVio2 (Integrated WiFi / BT) - Supports AMD CrossFire™ * Supports NVMe SSD as boot disks	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module and Intel^® CNVio / CNVio2 (Integrated WiFi / BT) - Supports AMD CrossFire™ *Supports NVMe SSD as boot disks
Графическая карта	* Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Intel^® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *	- Intel^® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Аудио	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Сеть	- 2.5 Gigabit LAN 10 / 100 / 1000 / 2500 Mb / s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control< / font> - Visual User Friendly UI< / font> - Visual Network Usage Statistics< / font> - Optimized Default Setting for Game, Browser, and Streaming Modes< / font> - User Customized Priority Control< / font>	- 2.5 Gigabit LAN 10 / 100 / 1000 / 2500 Mb / s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
WiFi	- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a / b / g / n / ac / ax / axe - Supports Dual-Band 2x2 160MHz with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. A 6GHz compatible router is required for 6E functionality.	- n/a
USB	Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection *	- 1 x USB 3.2 Gen2 Type-C (Front) - 1 x USB 3.2 Gen1 Type-C (Rear) - 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front) - 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection
Задняя панель ввода/вывода	- 2 x Antenna Ports - 1 x PS / 2 Mouse / Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone	- 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 5 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
хранение	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242 / 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb / s) mode* - 4 x SATA3 6.0 Gb / s Connectors * Supports Intel^® Volume Management Device (VMD) Supports NVMe SSD as boot disks	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260 / 2280 PCIe Gen4x2 (32 Gb / s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode* - 4 x SATA3 6.0 Gb / s Connectors *Supports Intel^® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Коннекторы	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V / 3A, 36W LED Strip Support in total up to 5V / 3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). ** CPU_FAN2 / WP supports the fan power up to 2A (24W). * CHA_FAN1~4 / WP support the fan power up to 2A (24W). *** CPU_FAN2 / WP and CHA_FAN1~4 / WP can auto detect if 3-pin or 4-pin fan is in use.	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 5 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb / s Support in total up to 12V / 3A, 36W LED Strip Support in total up to 5V / 3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2 / WP supports the fan power up to 2A (24W). ***CHA_FAN1~5 / WP support the fan power up to 2A (24W). CPU_FAN2 / WP and CHA_FAN1~5 / WP can auto detect if 3-pin or 4-pin fan is in use.
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support	- 128Mb AMI UEFI Legal BIOS with GUI support
Диск с ПО
Программное обеспечение и UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - Killer Control Center - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Контроль оборудования
ОС	- Microsoft Windows 10 64-bit / 11 64-bit	- Microsoft Windows 10 64-bit / 11 64-bit
Сертификаты	- FCC, CE - ErP / EuP ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP ready (ErP / EuP ready power supply is required)
Комплект поставки	- 1 x User Manual - 1 x I / O Shield - 2 x SATA Data Cables - 2 x SMA WiFi Antenna Cables - 2 x ASRock WiFi 2.4 / 5 / 6 GHz Antennas - 1 x Plastic Cover for Wi-Fi Module - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket	- 1 x User Manual - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
