ASRock > Motherboard Compare Result

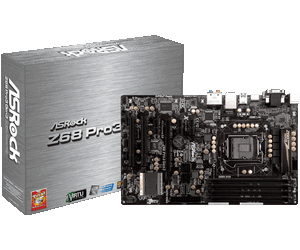

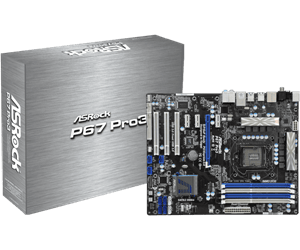

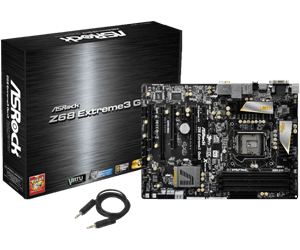

Model	Z68 Extreme3 Gen3	Z68 Pro3 Gen3	P67 Pro3	H61M/U3S3

Form Factor	- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm - Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)	- ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm - Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)	- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm - All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)
Unique Feature	- ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - Lucid Virtu - ASRock On / Off Play Technology - ASRock Dehumidifier Function - Hybrid Booster: - CPU Frequency Stepless Control< / font> - ASRock U-COP< / font> - Boot Failure Guard (B.F.G.)< / font> - Combo Cooler Option (C.C.O.) - Good Night LED	- ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - Lucid Virtu - ASRock On / Off Play Technology - ASRock Dehumidifier Function - Hybrid Booster: - CPU Frequency Stepless Control< / font> - ASRock U-COP< / font> - Boot Failure Guard (B.F.G.)< / font> - Combo Cooler Option (C.C.O.) - Good Night LED	- ASRock Extreme Tuning Utility (AXTU) - Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock Dehumidifier Function - Hybrid Booster: - CPU Frequency Stepless Control< / font> - ASRock U-COP< / font> - Boot Failure Guard (B.F.G.)< / font> - Combo Cooler Option (C.C.O.) - Good Night LED	- ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - ASRock XFast RAM - Hybrid Booster: - ASRock U-COP< / font> - Boot Failure Guard (B.F.G.)< / font> - Combo Cooler Option (C.C.O.) - Good Night LED
CPU	- Supports 3rd and 2nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package - Advanced V8 + 4 Power Phase Design - Supports Intel^® Turbo Boost 2.0 Technology - Supports Intel^® K-Series unlocked CPU - Supports Hyper-Threading Technology	- Supports 3rd and 2nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package - 4 + 2 Power Phase Design - Supports Intel^® Turbo Boost 2.0 Technology - Supports Intel^® K-Series unlocked CPU - Supports Hyper-Threading Technology	- Supports 3rd and 2nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package - Advanced V8 + 2 Power Phase Design - Supports Intel^® Turbo Boost 2.0 Technology - Supports Intel^® K-Series unlocked CPU - Supports Hyper-Threading Technology	- Supports 3rd and 2nd Generation Intel^® Core™ i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package - Supports Intel^® Turbo Boost 2.0 Technology - Supports Hyper-Threading Technology
Chipset	- Intel^® Z68	- Intel^® Z68	- Intel^® P67	- Intel^® H61 - Supports Intel^® Rapid Start Technology and Smart Connect Technology *Intel^® Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions.
Memory	- Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel^® Extreme Memory Profile (XMP) Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. *In order to maximize the system memory, please install 8GB memory module with 16 cells	- Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel^® Extreme Memory Profile (XMP) Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. *In order to maximize the system memory, please install 8GB memory module with 16 cells	- Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel^® Extreme Memory Profile (XMP) Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. *In order to maximize the system memory, please install 8GB memory module with 16 cells	- Dual Channel DDR3 memory technology - 2 x DDR3 DIMM slots - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* - Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel^® Ivy Bridge CPU Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. The highest supported DRAM frequency depends on the CPU you've installed. For detailed CPU specifications, please refer to Intel^® official website. **In order to maximize the system memory, please install 8GB memory module with 16 cells
Slots	- 2 x PCI Express 3.0 x16 slots (PCIE2 / PCIE4: single at x16 (PCIE2) / x8 (PCIE4), or dual at x8 (PCIE2) / x8 (PCIE4)) - 2 x PCI Express 2.0 x1 slots - 2 x PCI slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ *PCIe Gen3 is supported on 3rd Generation of Intel^® Core™ i5 and Core™ i7 CPUs.	- 1 x PCI Express 3.0 x16 slot (PCIE3 @ x16 mode) - 3 x PCI Express 2.0 x1 slots - 2 x PCI slots *PCIe Gen3 is supported on 3rd Generation of Intel^® Core™ i5 and Core™ i7 CPUs.	- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode) - 3 x PCI Express 2.0 x1 slots - 3 x PCI slots	- 1 x PCI Express 3.0 x16 slot (blue @ x16 mode) - 1 x PCI Express 2.0 x1 slot - 2 x PCI slots *PCIe Gen3 is supported on 3rd Generation of Intel^® Core™ i5 and Core™ i7 CPUs.
Graphics	- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® HD Graphics 2000 / 3000, Intel^® Advanced Vector Extensions (AVX) - Pixel Shader 4.1, DirectX 11 with Intel^® Ivy Bridge CPU, DirectX 10.1 with Intel^® Sandy Bridge CPU - Max. shared memory 1759MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with DVI and HDMI ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows Vista™ and Windows 7. *Intel^® InTru™ 3D is only supported under Windows 7 and Windows 7 x64.	- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® HD Graphics 2000 / 3000, Intel^® Advanced Vector Extensions (AVX) - Pixel Shader 4.1, DirectX 11 with Intel^® Ivy Bridge CPU, DirectX 10.1 with Intel^® Sandy Bridge CPU - Max. shared memory 1759MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with DVI and HDMI ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows Vista™ and Windows 7. *Intel^® InTru™ 3D is only supported under Windows 7 and Windows 7 x64.	- n / a	- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video 2.0, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 2500 / 4000 with Intel^® Ivy Bridge CPU - Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® HD Graphics 2000 / 3000, Intel^® Advanced Vector Extensions (AVX) with Intel^® Sandy Bridge CPU - Pixel Shader 5.0, DirectX 11 with Intel^® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel^® Sandy Bridge CPU. - Max. shared memory 1760MB with Intel^® Ivy Bridge CPU. Max. shared memory 1759MB with Intel^® Sandy Bridge CPU. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with DVI and HDMI ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows Vista™ and Windows 7. **Intel^® InTru™ 3D is only supported under Windows 7 and Windows 7 x64.
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support	- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Lan	- PCIE x1 Gigabit LAN 10 / 100 / 1000 Mb / s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE	- PCIE x1 Gigabit LAN 10 / 100 / 1000 Mb / s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE	- PCIE x1 Gigabit LAN 10 / 100 / 1000 Mb / s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE	- PCIE x1 Gigabit LAN 10 / 100 / 1000 Mb / s - Atheros AR8151 - Supports Wake-On-LAN - Supports PXE
WiFi	- n/a	- n/a	- n/a	- n/a
USB
Rear Panel I/O	I / O Panel - 1 x PS / 2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 4 x USB 2.0 Ports - 1 x eSATA3 Connector - 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042) - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED) - 1 x Clear CMOS Switch with LED - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone	I / O Panel - 1 x PS / 2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 4 x USB 2.0 Ports - 2 x USB 3.1 Gen1 Ports (Etron EJ168A) - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED) - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone	I / O Panel - 1 x PS / 2 Mouse Port - 1 x PS / 2 Keyboard Port - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 6 x USB 2.0 Ports - 1 x eSATA3 Connector - 2 x USB 3.1 Gen1 Ports (Etron EJ168A) - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED) - 1 x Clear CMOS Switch with LED - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone	I / O Panel - 1 x PS / 2 Mouse Port - 1 x PS / 2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x Ready-to-Use USB 2.0 Ports - 2 x Ready-to-Use USB 3.1 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED) - HD Audio Jack:Line in / Front Speaker / Microphone
Storage
RAID
Connector	- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions (SATA3_1 connector is shared with eSATA3 port) - 1 x IR header - 1 x CIR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 4 x USB 2.0 headers (support 8 USB 2.0 ports) - 1 x Dr. Debug with LED* *Check the Dr. Debug code list here.	- 4 x SATA2 3.0 Gb / s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb / s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions - 1 x IR header - 1 x CIR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU / Chassis / Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports)	- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel^® Rapid Storage), NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel^® Rapid Storage), NCQ, AHCI and Hot Plug functions (SATA3_1 connector is shared with eSATA3 port) - 1 x Floppy connector - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports) - 1 x Dr. Debug with LED* *Check the Dr. Debug code list here.	- 4 x SATA2 3.0 Gb / s connectors, support NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb / s connectors - 1 x IR header - 1 x CIR header - 1 x Print Port header - 1 x COM port header - CPU / Chassis / Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS	- 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment	- 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment	- 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment	- 32Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - Trial	- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - Trial	- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)	- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - Trial
Software and UEFI
Hardware Monitor	- CPU Temperature Sensing - Chassis Temperature Sensing - CPU, Chassis, Power Fan Tachometer - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU, Chassis Fan multi-speed control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore	- CPU Temperature Sensing - Chassis Temperature Sensing - CPU, Chassis, Power Fan Tachometer - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU, Chassis Fan multi-speed control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore	- CPU Temperature Sensing - Chassis Temperature Sensing - CPU, Chassis, Power Fan Tachometer - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature) - CPU, Chassis Fan multi-speed control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore	- CPU Temperature Sensing - Chassis Temperature Sensing - CPU, Chassis, Power Fan Tachometer - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU, Chassis Fan multi-speed control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS	- Microsoft Windows 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant	- Microsoft Windows 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant	- Microsoft Windows 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant	- Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit *Windows 8.1 is supported with Intel^® Ivy Bridge CPU for onboard VGA.
Certifications	- FCC, CE - ErP / EuP Ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP Ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP Ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP Ready (ErP / EuP ready power supply is required)
Accessories	- 1 x ASRock SLI_Bridge_2S Card - I / O Shield - 2 x SATA Data Cables (optional) - 1 x 3.5mm Audio Cable (optional)	- I / O Shield - 2 x SATA Data Cables (optional)	- I / O Shield - 2 x SATA Data Cables (optional)	- I / O Shield - 2 x SATA Data Cables (optional)
