ASRock > Motherboard Compare Result

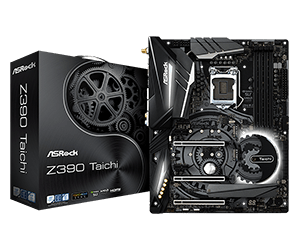

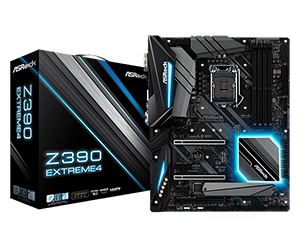

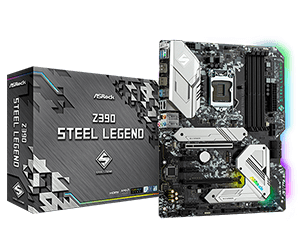

Model	Z390 Steel Legend	Z390 Phantom Gaming 9	Z390 Extreme4	Z390 Taichi

Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Unique Feature	ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb / s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb / s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Shaped PCB Design - Matte Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop	ASRock USB 3.1 Gen2 - ASRock Front Panel Type C USB 3.1 Gen2 Header (10 Gb / s) - ASRock Rear USB 3.1 Gen2 Type-A Ports (10 Gb / s) - ASRock Rear USB 3.1 Gen2 Type-C Port (10 Gb / s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I / O Armor - Matte Black PCB - High Density Glass Fabric PCB ASRock Phantom Gaming 2.5G LAN Intel 802.11ac WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop	ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb / s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb / s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I / O Armor - Matte Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop	ASRock USB 3.1 Gen2 - ASRock Front Panel Type C USB 3.1 Gen2 Header (10 Gb / s) - ASRock Rear USB 3.1 Gen2 Type-A Ports (10 Gb / s) - ASRock Rear USB 3.1 Gen2 Type-C Port (10 Gb / s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I / O Armor - Matte Black PCB - High Density Glass Fabric PCB Intel 802.11ac WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151) - Digi Power design - 8 Power Phase design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking	- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151) - IR Digital PWM - 12 Power Phase design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking - Supports ASRock Hyper BCLK Engine II	- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151) - Digi Power design - 12 Power Phase design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking	- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151) - IR Digital PWM - 12 Power Phase design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking - Supports ASRock Hyper BCLK Engine II
Chipset	- Intel Z390	- Intel Z390	- Intel Z390	- Intel Z390
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC ) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4200+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Slots	- 2 x PCI Express 3.0 x16 Slots (PCIE1 / PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module and Intel CNVi< / a> (Integrated WiFi / BT)** Supports NVMe SSD as boot disks *Supports CNVio1 WiFi module(Intel Wireless-AC 9560 / 9462 / 9461) only.	- 3 x PCI Express 3.0 x16 Slots (PCIE2 / PCIE4 / PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ - Supports NVIDIA NVLink™ with dual NVIDIA GeForce RTX series graphics cards** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I / O) - 15μ Gold Contact in VGA PCIe Slot (PCIE2) Supports NVMe SSD as boot disks *NVIDIA NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA if necessary.	- 3 x PCI Express 3.0 x16 Slots (PCIE2 / PCIE4 / PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ - Supports NVIDIA NVLink™ with dual NVIDIA GeForce RTX series graphics cards - 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module and Intel CNVi< / a> (Integrated WiFi / BT)* - 15μ Gold Contact in VGA PCIe Slot (PCIE2) Supports NVMe SSD as boot disks NVIDIA NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA if necessary. **Supports CNVio1 WiFi module(Intel Wireless-AC 9560 / 9462 / 9461) only.	- 3 x PCI Express 3.0 x16 Slots (PCIE2 / PCIE4 / PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ - Supports NVIDIA NVLink™ with dual NVIDIA GeForce RTX series graphics cards** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I / O) - 15μ Gold Contact in VGA PCIe Slot (PCIE2) Supports NVMe SSD as boot disks *NVIDIA NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA if necessary.
Graphics	- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics - DirectX 12 - HWA Encode / Decode: AVC / H.264, HEVC / H.265 8-bit, HEVC / H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.	- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics - DirectX 12 - HWA Encode / Decode: AVC / H.264, HEVC / H.265 8-bit, HEVC / H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.	- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics - DirectX 12 - HWA Encode / Decode: AVC / H.264, HEVC / H.265 8-bit, HEVC / H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, HDMI and DisplayPort 1.2 - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.	- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics - DirectX 12 - HWA Encode / Decode: AVC / H.264, HEVC / H.265 8-bit, HEVC / H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 110dB SNR DAC with Differential Amplifier - PCB Isolate Shielding - Individual PCB Layers for R / L Audio Channel - Gold Audio Jacks	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R / L Audio Channel - RGB LED - Gold Audio Jacks - 15μ Gold Audio Connector - Supports Creative Sound Blaster™ Cinema 5	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - Nichicon Fine Gold Series Audio Caps< / font> - 120dB SNR DAC with Differential Amplifier< / font> - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)< / font> - Pure Power-In< / font> - Direct Drive Technology< / font> - PCB isolate shielding< / font> - Impedance Sensing on Rear Out port - Individual PCB Layers for R / L Audio Channel< / font> - RGB LED - 15μ Gold Audio Connector< / font> - Supports DTS Connect	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - Nichicon Fine Gold Series Audio Caps< / font> - 120dB SNR DAC with Differential Amplifier< / font> - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)< / font> - Pure Power-In< / font> - Direct Drive Technology< / font> - PCB isolate shielding< / font> - Impedance Sensing on Rear Out port< / font> - Individual PCB Layers for R / L Audio Channel< / font> - RGB LED< / font> - Gold Audio Jacks< / font> - 15μ Gold Audio Connector< / font> - Supports DTS Connect
Lan	- Gigabit LAN 10 / 100 / 1000 Mb / s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning / ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE	1 x 2.5 Gigabit LAN 10 / 100 / 1000 / 2500 Mb / s (Dragon RTL8125AG): - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control< / font> - Visual User Friendly UI< / font> - Visual Network Usage Statistics< / font> - Optimized Default Setting for Game, Browser, and Streaming Modes< / font> - User Customized Priority Control< / font> - Supports Wake-On-LAN - Supports Lightning / ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 2 x Gigabit LAN 10 / 100 / 1000 Mb / s (1 x Intel I219V, 1 x Intel I211AT): - Supports Wake-On-LAN - Supports Lightning / ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE *Teaming is supported on Windows 10 RS2 and above.	- Gigabit LAN 10 / 100 / 1000 Mb / s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning / ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE	- Gigabit LAN 10 / 100 / 1000 Mb / s - 1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT - Supports Wake-On-LAN - Supports Lightning / ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE *Teaming is supported on Windows 10 RS2 and above.
WiFi	- n/a	- Intel 802.11ac WiFi Module - Supports IEEE 802.11a / b / g / n / ac - Supports Dual-Band (2.4 / 5 GHz) - Supports high speed wireless connections up to 1733Mbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO	- n/a	- Intel 802.11ac WiFi Module - Supports IEEE 802.11a / b / g / n / ac - Supports Dual-Band (2.4 / 5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II
Rear Panel I/O	- 1 x Antenna Bracket - 1 x PS / 2 Mouse / Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb / s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb / s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Intel Z390) (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)	- 2 x Antenna Ports - 1 x PS / 2 Mouse / Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 3 x USB 3.1 Gen2 Type-A Ports (10 Gb / s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb / s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Intel Z390) (Supports ESD Protection) - 3 x RJ-45 LAN Ports with LED (ACT / LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)	- 1 x Antenna Ports - 1 x PS / 2 Mouse / Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb / s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb / s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Intel Z390) (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone *Please note that the USB3_34 do not support USB Keyboard & mouse S3 / S4 / S5 Wakeup.	- 2 x Antenna Ports - 1 x PS / 2 Mouse / Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 3 x USB 3.1 Gen2 Type-A Ports (10 Gb / s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb / s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Intel Z390) (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT / LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Storage	- 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230 / 2242 / 2260 / 2280 / 22110 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. If M2_1 is occupied by a PCIE-type M.2 device, SATA3_0 will be disabled. *Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit	- 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb / s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), support M Key type 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) - 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2230 / 2242 / 2260 / 2280 / 22110 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. *Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit	- 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb / s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230 / 2242 / 2260 / 2280 / 22110 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. *Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit	- 6 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb / s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), support M Key type 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) - 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2230 / 2242 / 2260 / 2280 / 22110 M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. *Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Connector	- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) Support in total up to 12V / 3A, 36W LED Strip Supports in total up to 5V / 3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2 / WP, CHA_FAN1 / WP, CHA_FAN2 / WP and CHA_FAN3 / WP can auto detect if 3-pin or 4-pin fan is in use.	- 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 6 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel Z390) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM1562 Retimer) - 1 x Performance Mode / Easy OC Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED Support in total up to 12V / 3A, 36W LED Strip Supports in total up to 5V / 3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2 / WP, CHA_FAN1~6 / WP can auto detect if 3-pin or 4-pin fan is in use.	- 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z390) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel Z390) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header Support in total up to 12V / 3A, 36W LED Strip Supports in total up to 5V / 3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2 / WP, CHA_FAN1 / WP, CHA_FAN2 / WP and CHA_FAN3 / WP can auto detect if 3-pin or 4-pin fan is in use.	- 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 6 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel Z390) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM1562 Retimer) - 1 x Performance Mode / Easy OC Header - 1 x Dr. Debug with LED Support in total up to 12V / 3A, 36W LED Strip Supports in total up to 5V / 3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis / Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2 / WP, CHA_FAN1~6 / WP can auto detect if 3-pin or 4-pin fan is in use.
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment	- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core / Cache, GT Core / Cache, DRAM, VTT DDR, PCH 1.05V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment	- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core / Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment	- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core / Cache, GT Core / Cache, DRAM, VTT DDR, PCH 1.0V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Software and UEFI	Software - ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.	Software - ASRock Phantom Gaming Tuning - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC - ASRock Key Master UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.	Software - ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.	Software - ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Hardware Monitor	- Temperature Sensing: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Tachometer: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Multi-Speed Control: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST	- Temperature Sensing: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Tachometer: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Multi-Speed Control: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.05V, VCCIO, DRAM VPP, VCCSA, VCCST, DMI, CPU Cold Bug Killer	- Temperature Sensing: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Tachometer: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Multi-Speed Control: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO	- Temperature Sensing: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Tachometer: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU / Water Pump, Chassis / Water Pump Fans - Fan Multi-Speed Control: CPU, CPU / Water Pump, Chassis / Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, DRAM VPP, VCCSA, VCCST, DMI, CPU Cold Bug Killer
OS	- Microsoft Windows 10 64-bit / 11 64-bit	- Microsoft Windows 10 64-bit / 11 64-bit	- Microsoft Windows 10 64-bit / 11 64-bit	- Microsoft Windows 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP / EuP ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP ready (ErP / EuP ready power supply is required)	- FCC, CE - ErP / EuP ready (ErP / EuP ready power supply is required)
Accessories	- Quick Installation Guide, Support CD, I / O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets	- Quick Installation Guide, Support CD, I / O Shield - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 1 x ASRock WiFi 2.4 / 5 GHz Antenna - 3 x Screws for M.2 Sockets	- Quick Installation Guide, Support CD, I / O Shield - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 3 x Screws for M.2 Sockets	- Quick Installation Guide, Support CD, I / O Shield - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 2 x ASRock WiFi 2.4 / 5 GHz Antennas - 3 x Screws for M.2 Sockets
