about LiveMixer

LIVE MIX LIFE MAX

LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.

Broadcasting

Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.

Content Creation

Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.


- Content Creator
- Video Editing
- Photo Editor
- Game Development

Multiple Streaming Devices

We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.


AVerMedia logo

Elgato logo
Overview

Effectiveness and Uniqueness

Provides stability and unique features enhancing effectiveness.

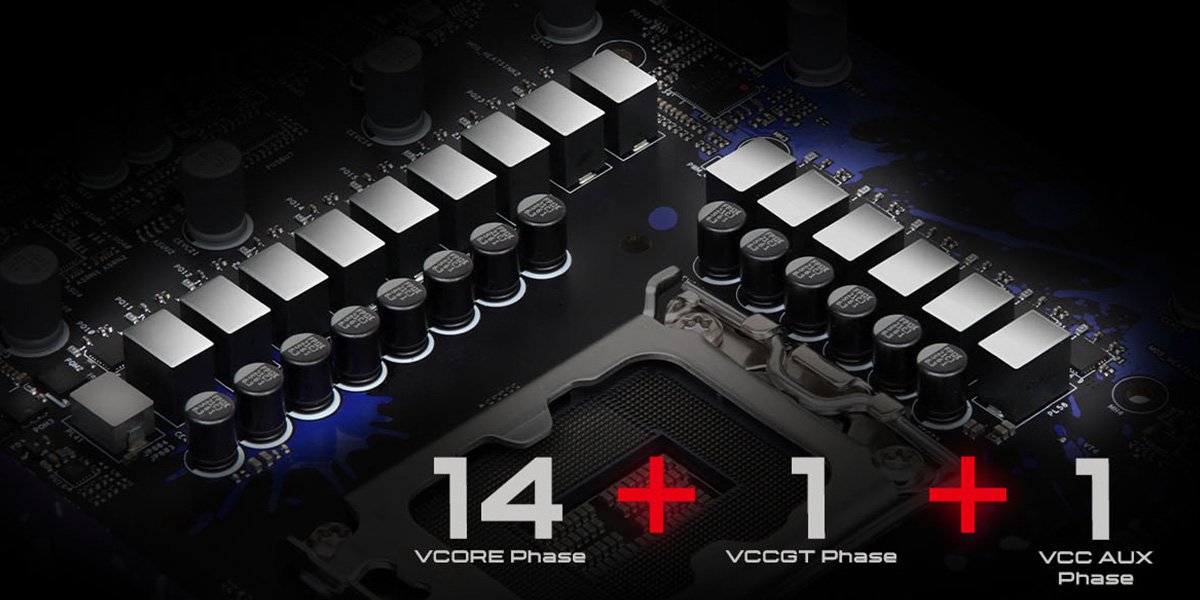

  • 14 + 1 + 1 power phase with Smart Power Stage(SPS) and Nichicon 12K capacity.

    14 + 1 + 1 power phase with Smart Power Stage(SPS) and Nichicon 12K capacity.

    Optimized VRM design for solid performance

    Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

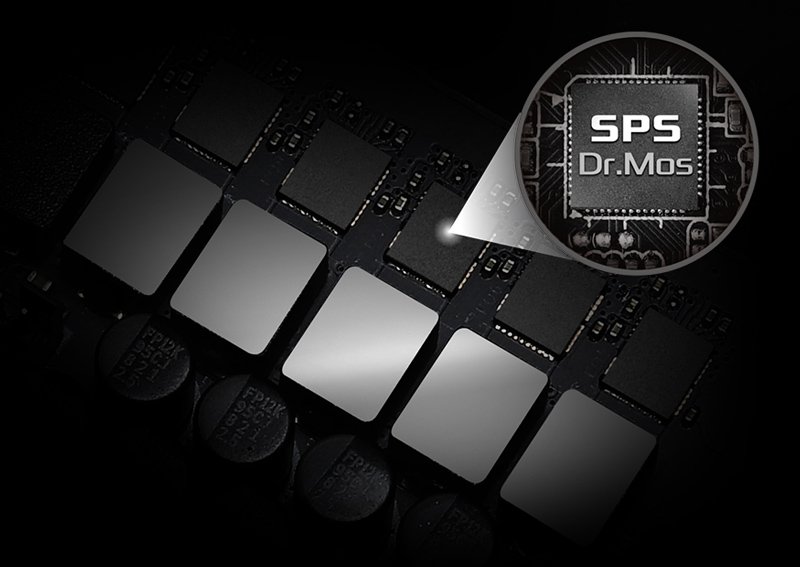

    SMART POWER STAGE(SPS)

    SMART POWER STAGE(SPS)

    Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
    * Vcore only

    NICHICON 12K CAPICITY

    Offers 20% longer lifespans and provides more stability and reliability.
    * VRM only

    2oz Copper PCB

    2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

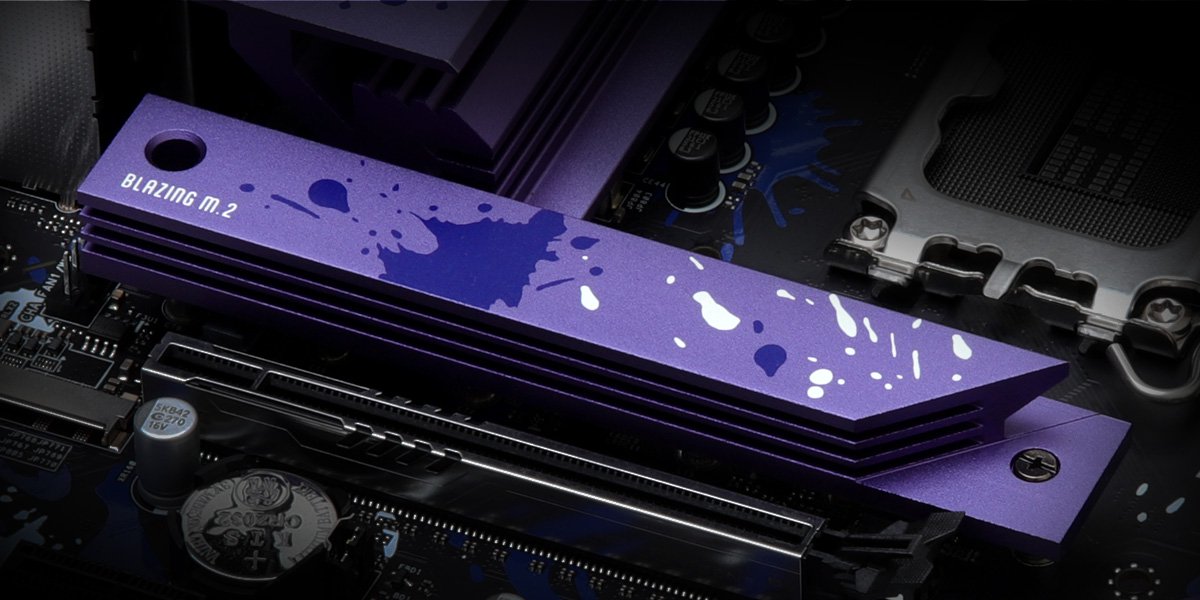

  • Blazing M.2[PCIe Gen5 x4]

    Blazing M.2[PCIe Gen5 x4]

    Blazing Fast Data Transfer and Great Heat Dissipation

    Accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed.

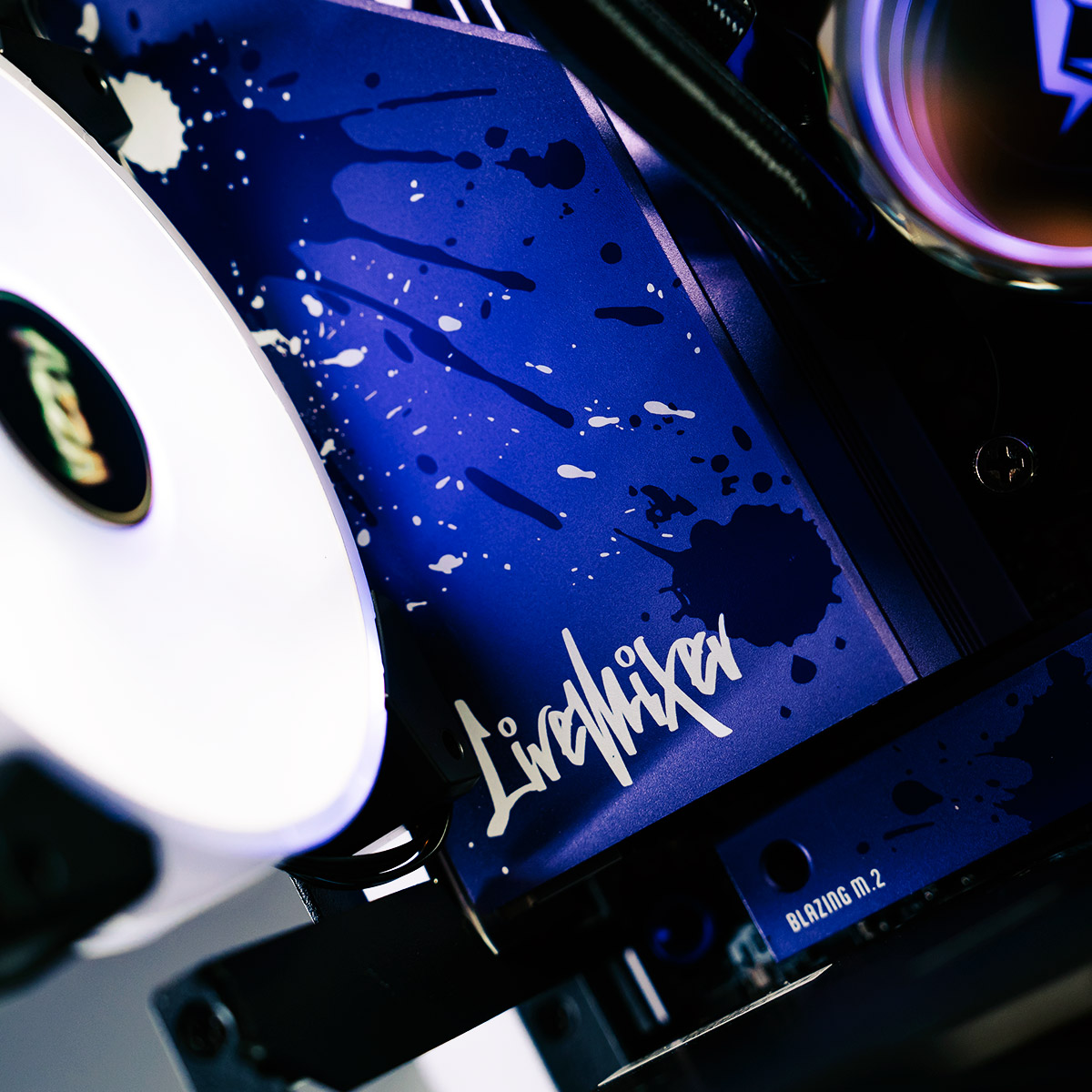

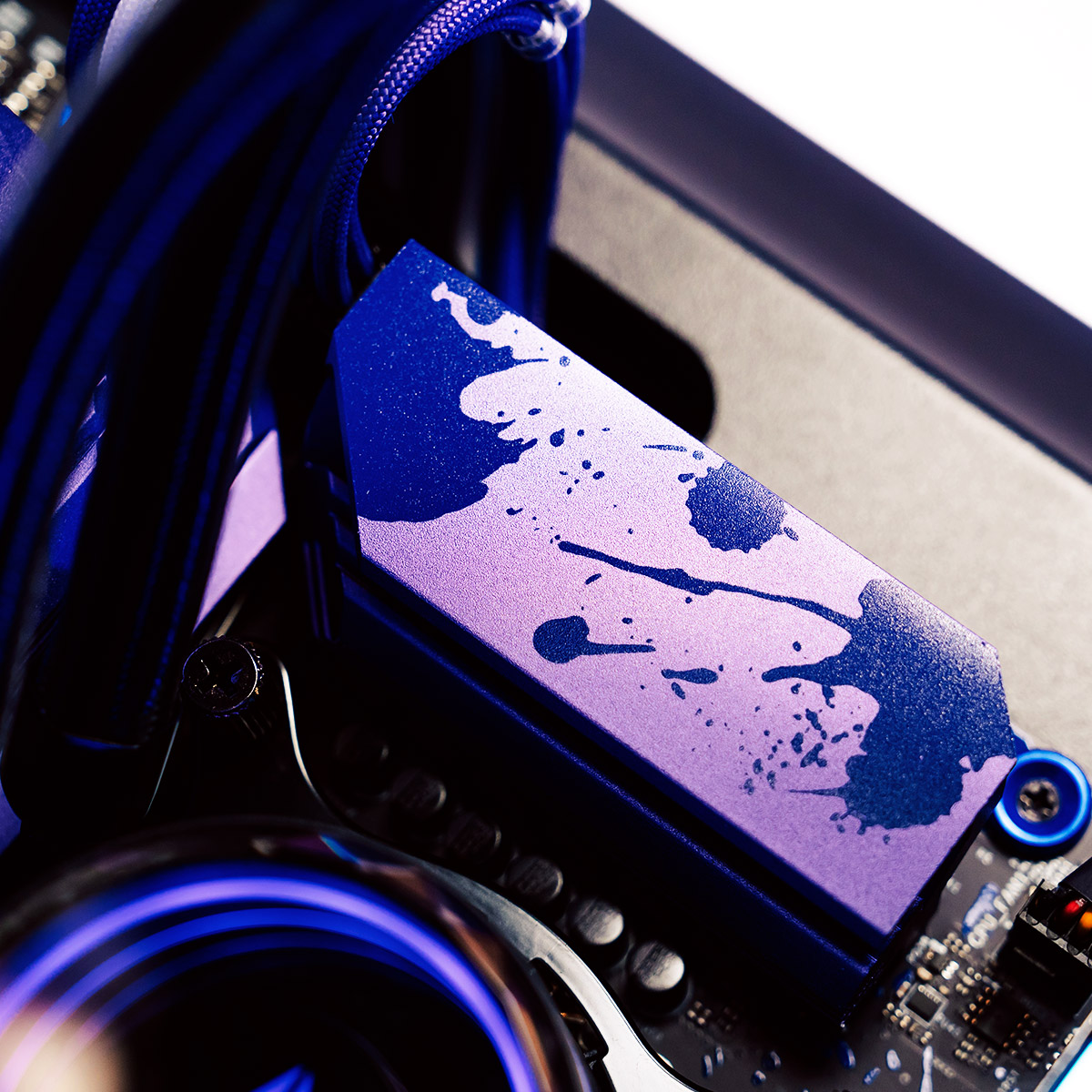

    MULTI-LAYER M.2 HEATSINK

    Lower the temperature of your high-speed SSD to perform better and more stably.

    ANTI-DROP SCREW DESIGN

    Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design makes installation process more easily and eliminates risk of missing screw and could be installed easily.

  • Lightning Gaming Ports

    Lightning Gaming Ports

    Mice/Keyboard control with lower jitter and latency
    Lightning Gaming Ports

    Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

    Lightning Gaming Ports
  • Ultra USB Power

    Ultra USB Power

    Stable power and better sound experience!
    Ultra USB Power

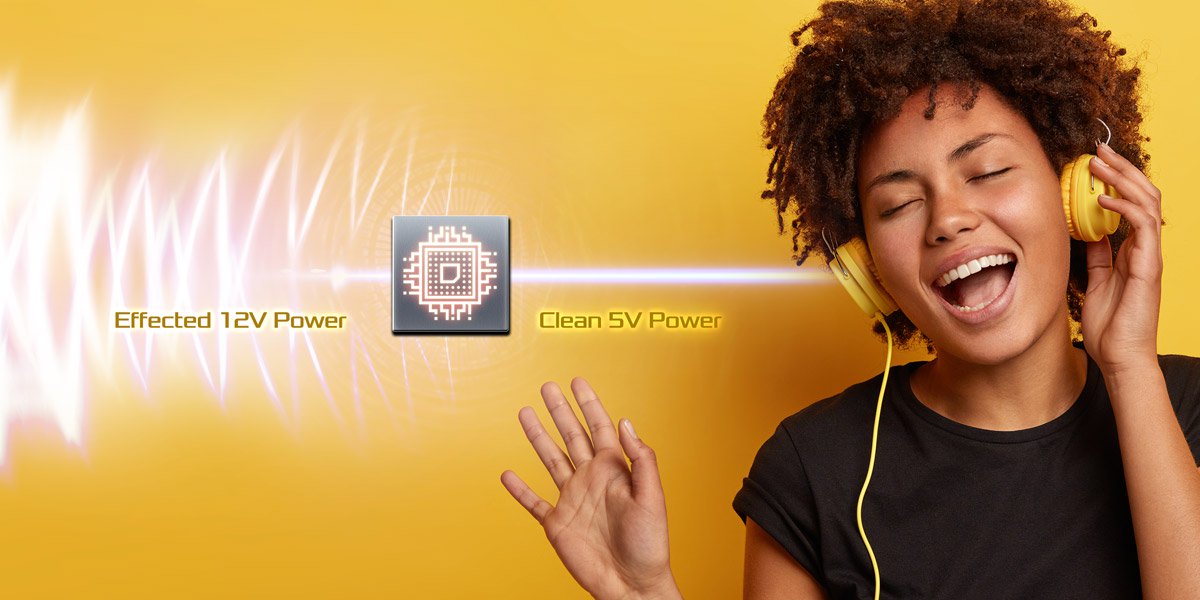

    Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.

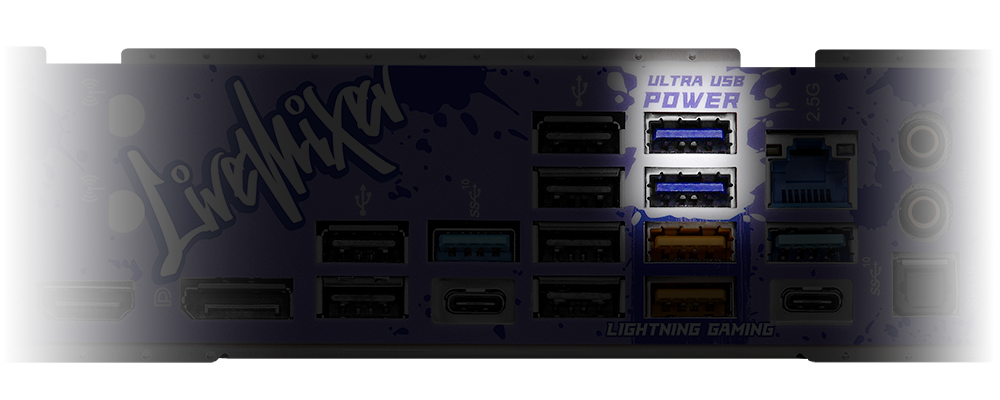

    Z790-LiveMixer_io

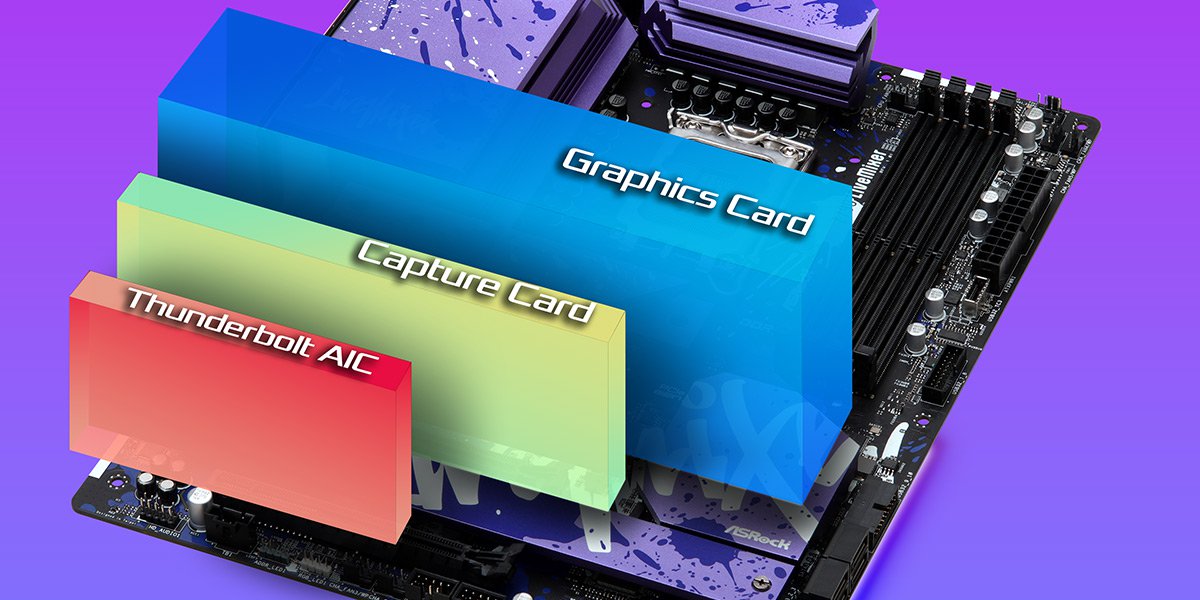

  • Dual PCIe x4 Slots & Thunderbolt Header

    Dual PCIe x4 Slots & Thunderbolt Header

    Provides great connectivity for the use of capture card and Thunderbolt AIC at the same time.
    Dual PCIe x4 Slots & Thunderbolt Header

    Provides great connectivity for the use of capture card and Thunderbolt AIC at the same time.

  • PCIe 5.0 + Surface-Mount Tech

    PCIe 5.0 + Surface-Mount Tech

    PCIe 5.0 + Surface-Mount Tech

    Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
    The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Features Make Better

Optimizes your user experience.

  • DDR5 Memory

    DDR5 Memory

    Supports DDR5 memory with max. 128GB capacity.
  • 23 USB Ports

    23 USB Ports

    Provides great connectivity to multiple USB devices.
  • Dragon 2.5G LAN

    Dragon 2.5G LAN

    Fulfills requirement of content creators and high-quality streaming media.
  • Polychrome Sync

    Polychrome Sync

    Allows users to synchronize RGB LED devices and create their own unique lighting effects.
  • Nahimic Audio

    Nahimic Audio

    Offers you the most engaging listening experience, vibrant and rich with details.
  • Auto Driver Installer

    Auto Driver Installer

    Allow users to download and install all necessary drivers automatically.
