Awards
PCgamer - Ridiculous Power

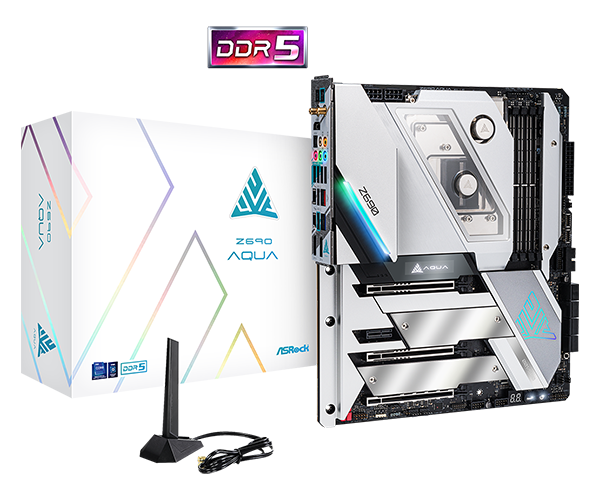

Z690 AQUA

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 20 Phase SPS Dr.MOS Power Design
  • Supports DDR5 6400MHz (OC)*
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C**
  • Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC,
    WIMA Audio Caps, Nahimic Audio
  • 8 SATA3
  • 1 Hyper M.2 (PCIe Gen4 x4)
  • 2 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 Thunderbolt™ 4/USB4 Type-C
  • 2 USB 3.2 Gen2x2 Front Type-C
  • 2 Rear USB 3.2 Gen2 Type A
  • 8 USB 3.2 Gen1 (4 Rear, 4 Front)
  • AQUANTIA® / Marvell 10G LAN, Killer E3100 2.5G LAN
  • Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
  • Status OLED + Polychrome SYNC*
    *Actual support may vary by CPU
    **The display specification of Thunderbolt™ port varies by the specification of DisplayPort input from the graphics card.
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
