X299 Steel Legend
  • Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

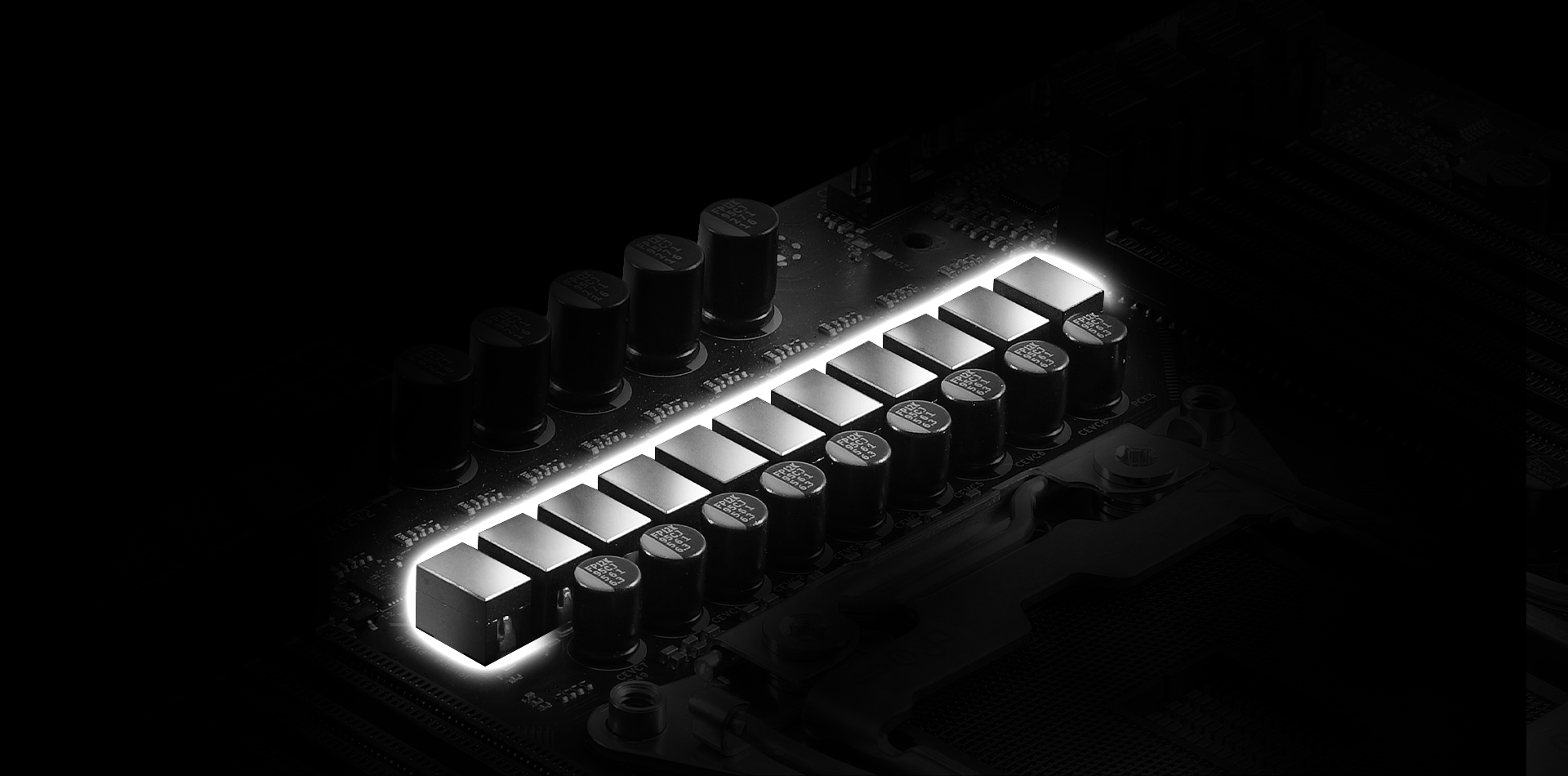

  • 11 Power Phase Design, Dr. MOS, Dual Power Connectors

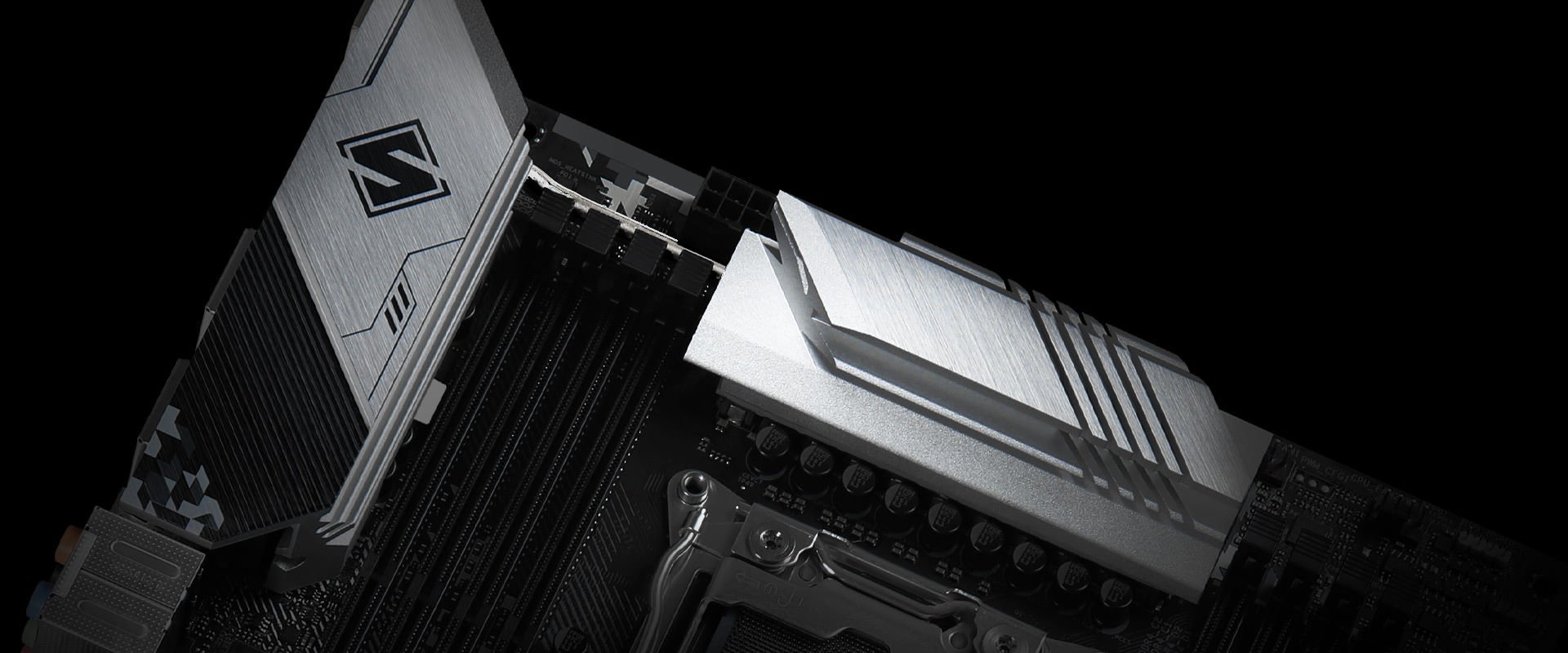

  • XXL Aluminum Alloy Heatsink & Heatpipe Design
  • Supports DDR4 4200+(OC)

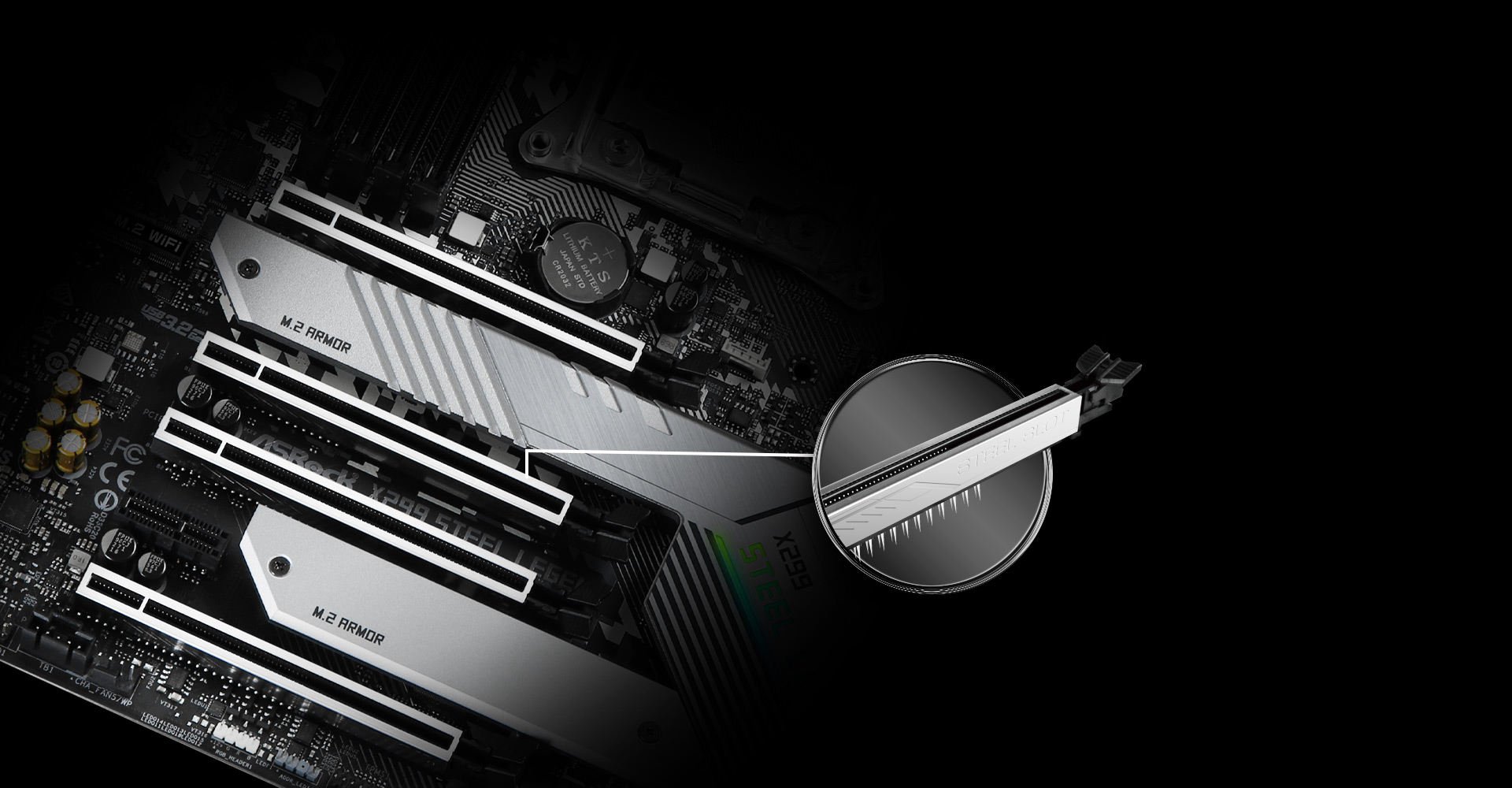

  • 4 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  • NVIDIA® NVLINK™, 3-Way SLI™, AMD 3-Way CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4

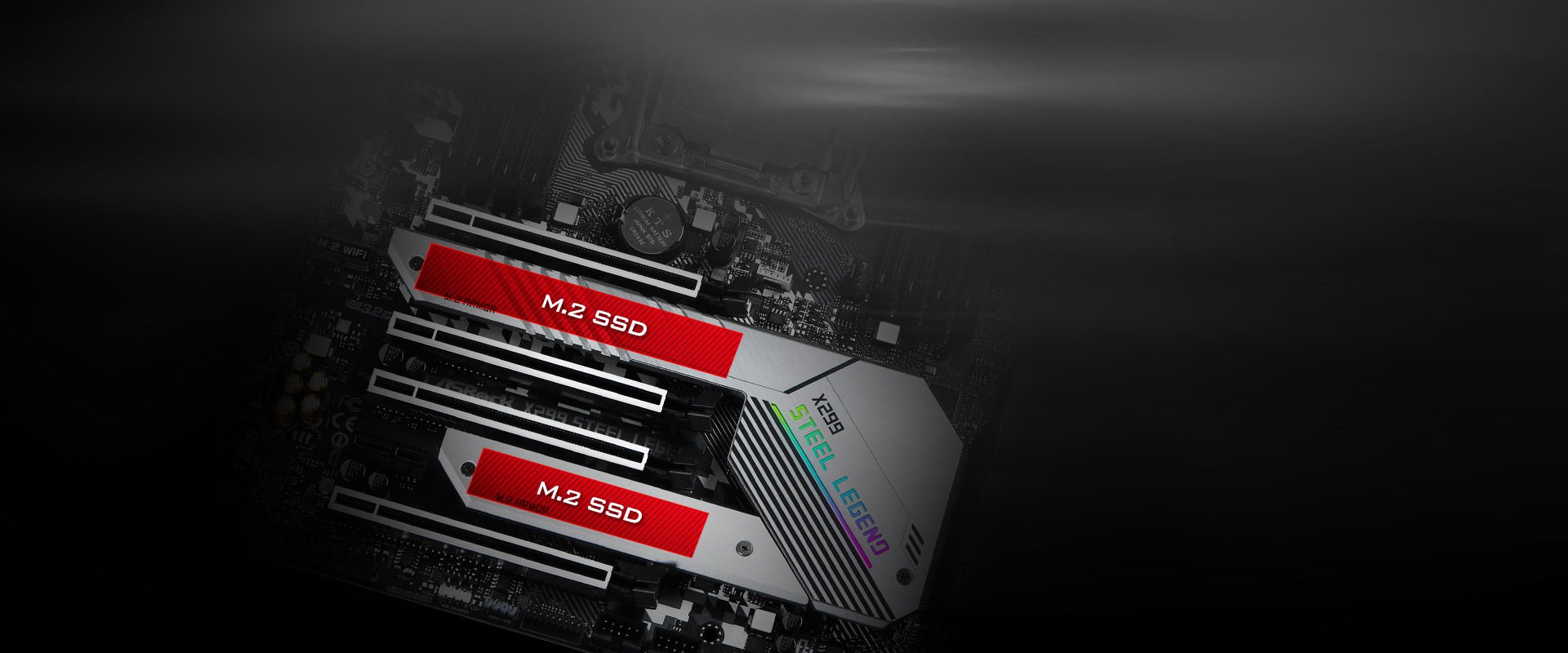

  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 1 USB 3.2 Gen2 x2 Type-C (20Gb/s)
  • 6 USB 3.2 Gen1 (2 Front, 3 Rear, 1 x Front Type-C)
  • 8 USB 2.0 (4 Front, 4 Rear)
  • Dual Intel® Gigabit LAN

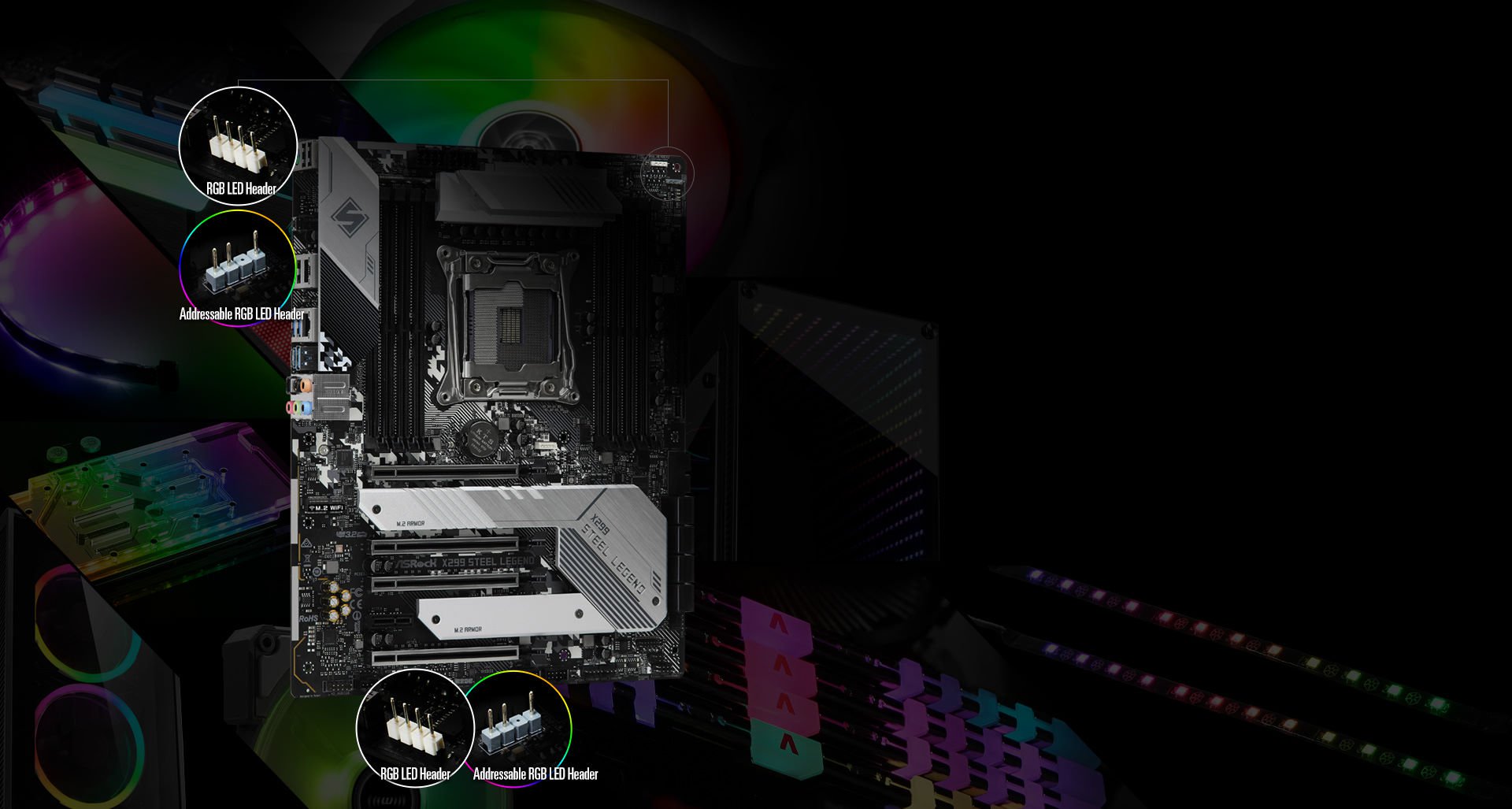

  • ASRock Polychrome RGB LED
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
