Product Photo
  • Product Thumbnail 1
Awards
BCCHardware.com - Super Gear Top Pick
ThinkComputers.org - 8/10
PcTriber.Net - HOT STUFF
OCWorkbench - Gold
Beareyes.com.cn - Editor's Choice
ProClockers - Recommended
CPU3D - Recommended
PC Achat - Le Choix

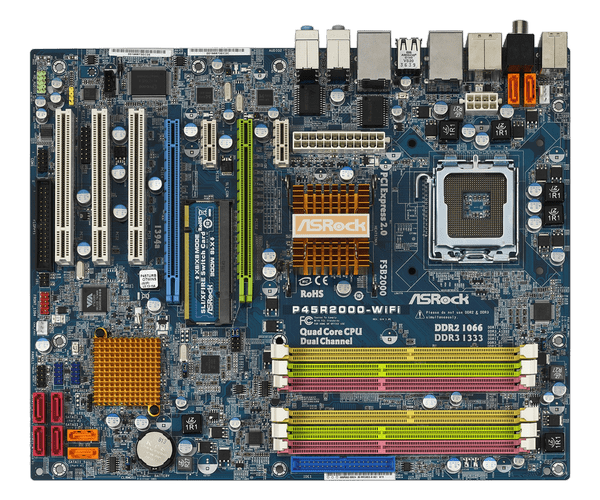

P45R2000-WiFi

  • LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
  • All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)
  • Intel® P45 + ICH10R Chipsets
  • Compatible with FSB 2000/1600/1333/1066/800 MHz CPUs
  • Supports Dual Channel DDR3 1333/1066 (4 x DIMM slots) with max. capacity up to 8GB and Dual Channel DDR2 1066/800/667 (2 x DIMM slots) with max. capacity up to 8GB
  • Supports ATI™ CrossFire™
  • 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode)
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and Hot Plug functions
  • 2 x eSATA2 3.0 Gb/s connectors
  • Dual GLAN: 2 x PCIE Gigabit LAN 10/100/1000 Mb/s
  • Supports 2 x IEEE 1394 ports (one port on back panel, one header on board)
  • 7.1 CH Windows® Vista™ Premium Level HD Audio with Content Protection, supports DAC with 110dB dynamic range (ALC890 Audio Codec)
  • 1 x WiFi/E header
  • Supports ASRock Instant Boot
  • Supports I. O. T. (Intelligent Overclocking Technology), ASRock OC Tuner
  • Windows® Vista™ Premium 2008 Logo Ready
  • Free Bundle: 1 x ASRock WiFi-802.11g Module, 1 x Antenna, 1 x ASRock XFire Switch Card
  • ASRock DualLAN_SPDIF I/O: 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port, 2 x eSATA2 Ports, 2 x RJ-45 LAN Ports with LED, 1 x IEEE 1394 Port, 6 x USB 2.0 Ports
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
