• CPU
  - Supports 10^th Gen Intel^® Core™ Processors (Socket 1200)
  - 4 Power Phase design
  - Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  - Intel^® H410
• Memory
  - Dual Channel DDR4 Memory Technology

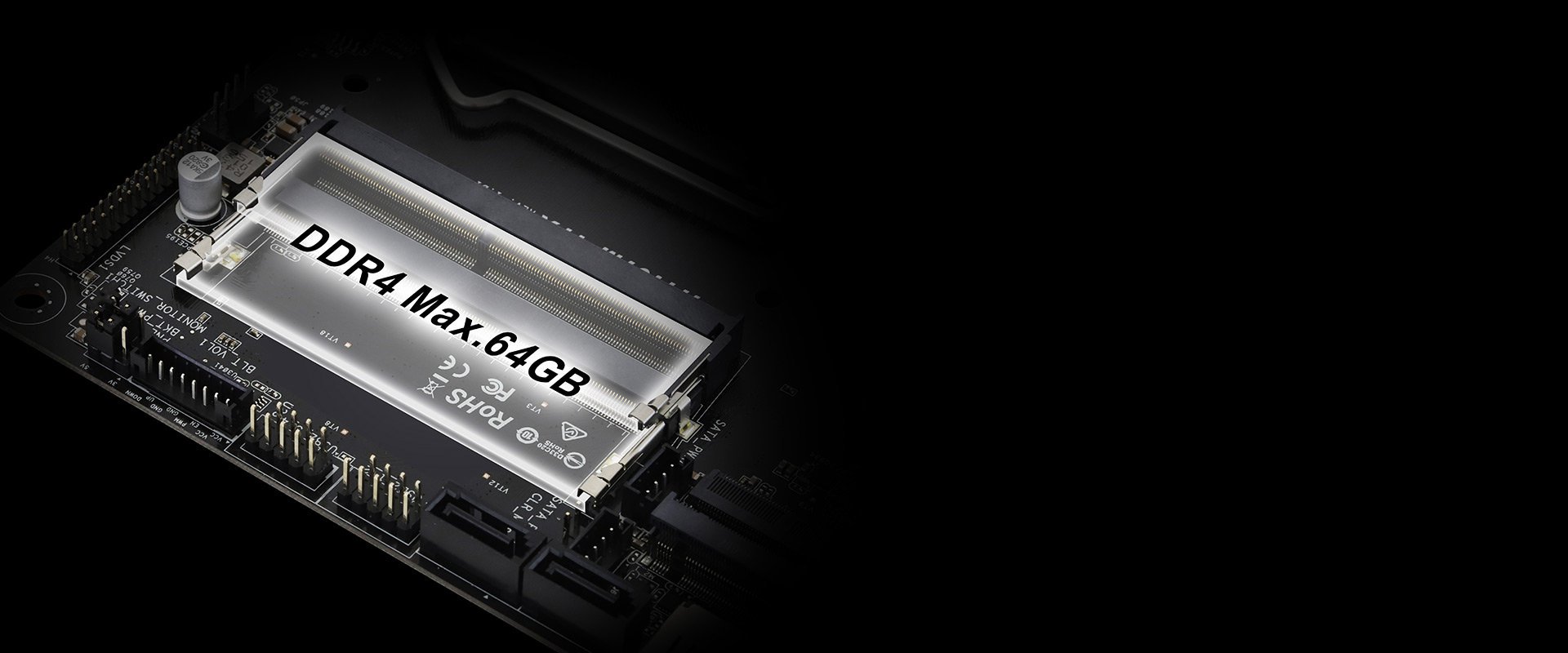

  - 2 x DDR4 SO-DIMM Slots
  - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  - Max. capacity of system memory: 64GB**
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0



  *Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
• Graphics
  - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  - Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, Intel^® SGX Content Protection, UHD/HDR Blu-ray Disc
  - Three graphics output options: 2 x HDMI, 1 x LVDS ports

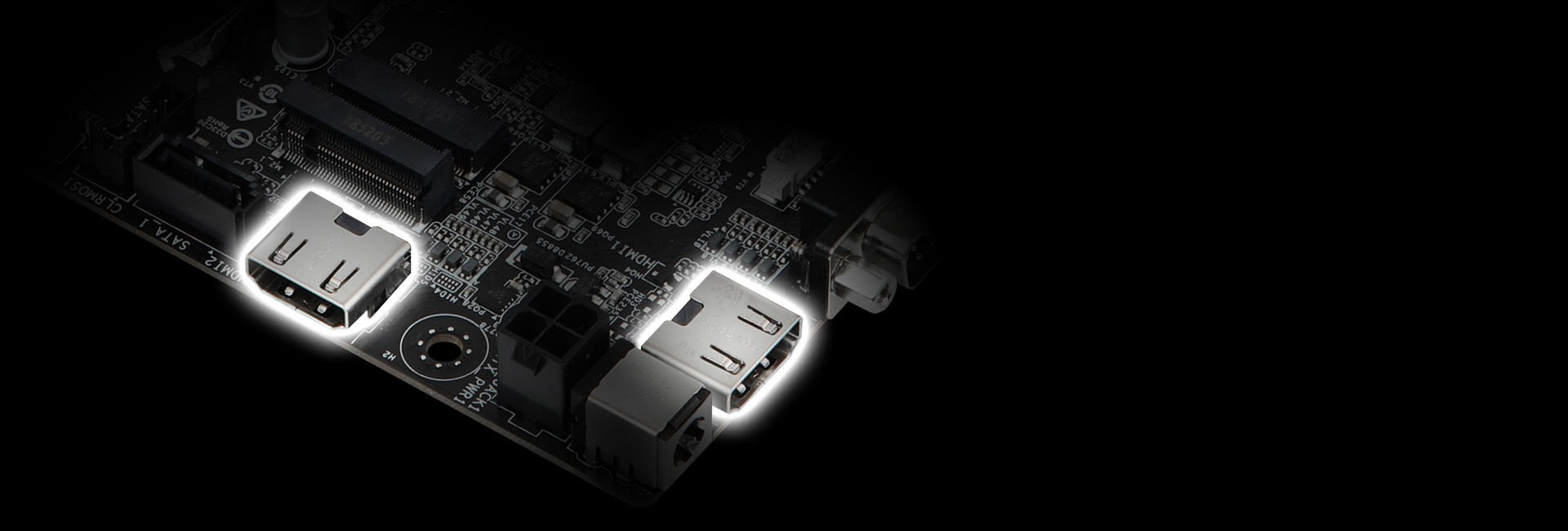

  - Supports 2 x HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - HDMI x 1 port (Rear)
  - HDMI x 1 port (Internal)
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports LVDS with max. resolution up to 1920x1080 @ 60Hz
  - Supports HDCP 2.3 with HDMI 1.4 Port
  - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port



  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.
• Audio
  - Realtek ALC233 Audio Codec
  - 1 x Headphone Jack
  - 1 x MIC-In
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Storage
  - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  - 1 x Ultra M.2 Socket, supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*



  *Supports NVMe SSD as boot disks
• Connector
  - 1 x Chassis Intrusion Header
  - 1 x Backlight inverter voltage selection header
  - 1 x FPD brightness header
  - 1 x Panel voltage selection header
  - 1 x Panel Off Header
  - 1 x LVDS Connector
  - 2 x CPU Fan Connectors (4-pin)*
  - 1 x 4 pin 19V Power Connector (2-Pin)
  - 1 x Thermal Sensor Header
  - 1 x Front Panel Audio Connector
  - 1 x Internal Speaker Header (4-Pin)
  - 2 x SATA Power Connectors
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)



  *The CPU Fan Connectors support the CPU fan of maximum 1A (12W) fan power.
• Rear Panel I/O
  - 1 x DC Jack (Compatible with the 19V power adapter)
  - 1 x Serial Port: COM
  - 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)
  - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line out / Microphone
• Unique Feature
  ASRock Super Alloy
  - Matte Black PCB
  - High Density Glass Fabric PCB

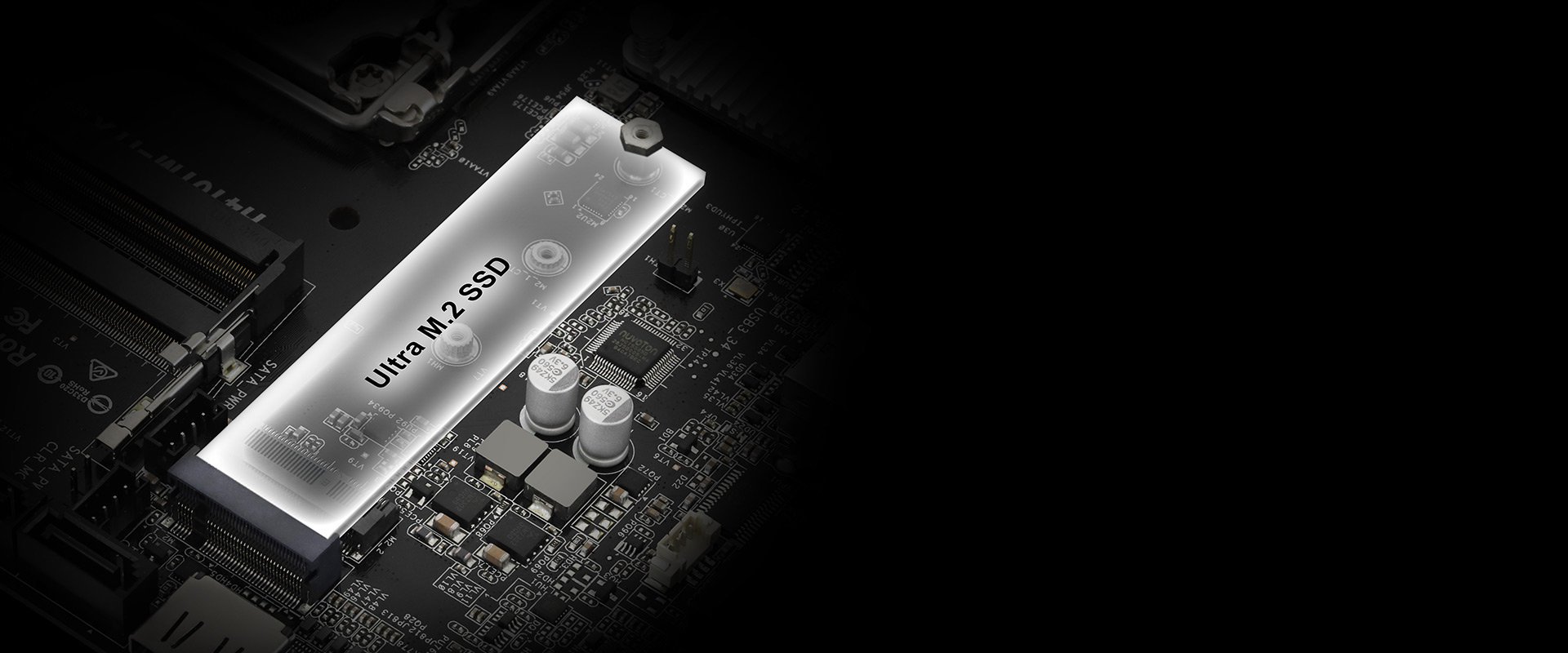

  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• Accessories
  - Quick Installation Guide (optional)
  - I/O Shield (optional)
  - 1 x SATA Data Cable (optional)
  - 1 x SATA Power Cable (optional)
  - 2 x Screws for M.2 Sockets
• Hardware Monitor
  - CPU Temperature Sensing
  - CPU Fan Tachometer
  - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU Fan Multi-Speed Control
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor

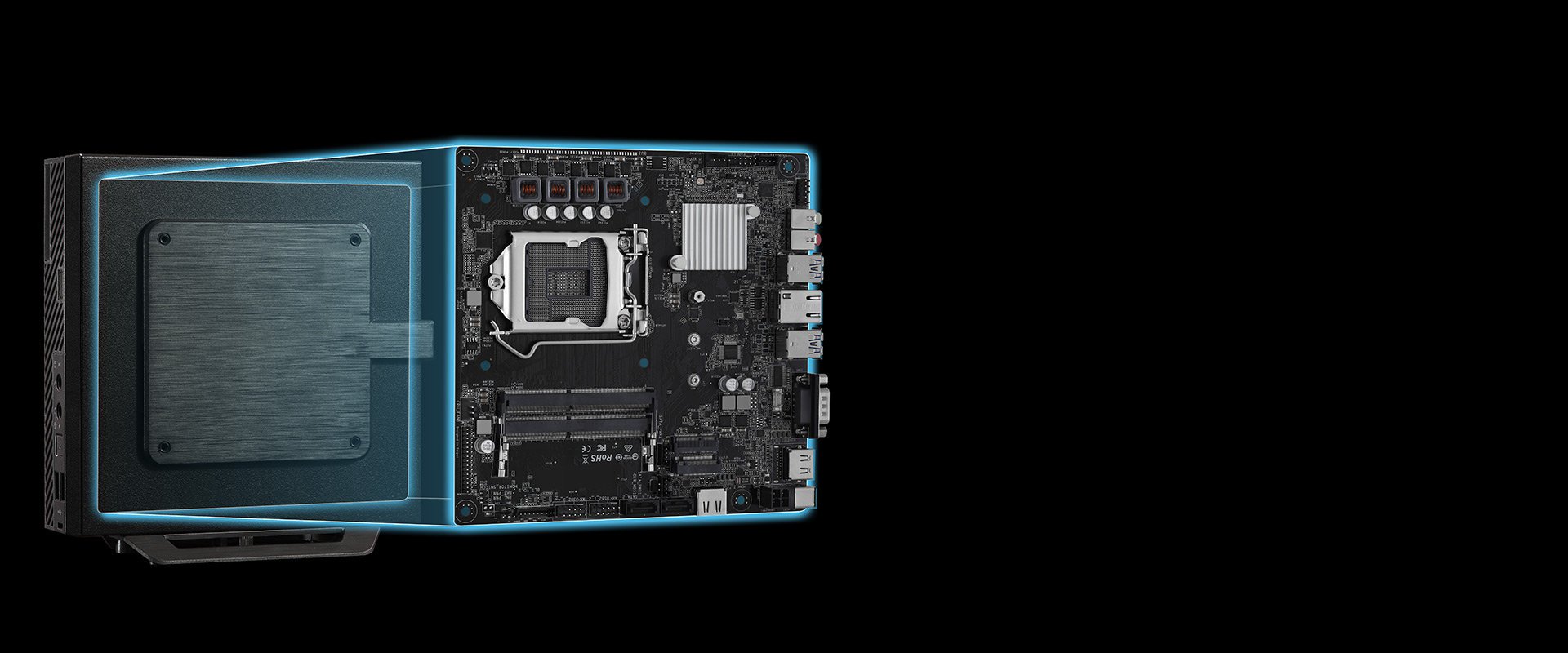

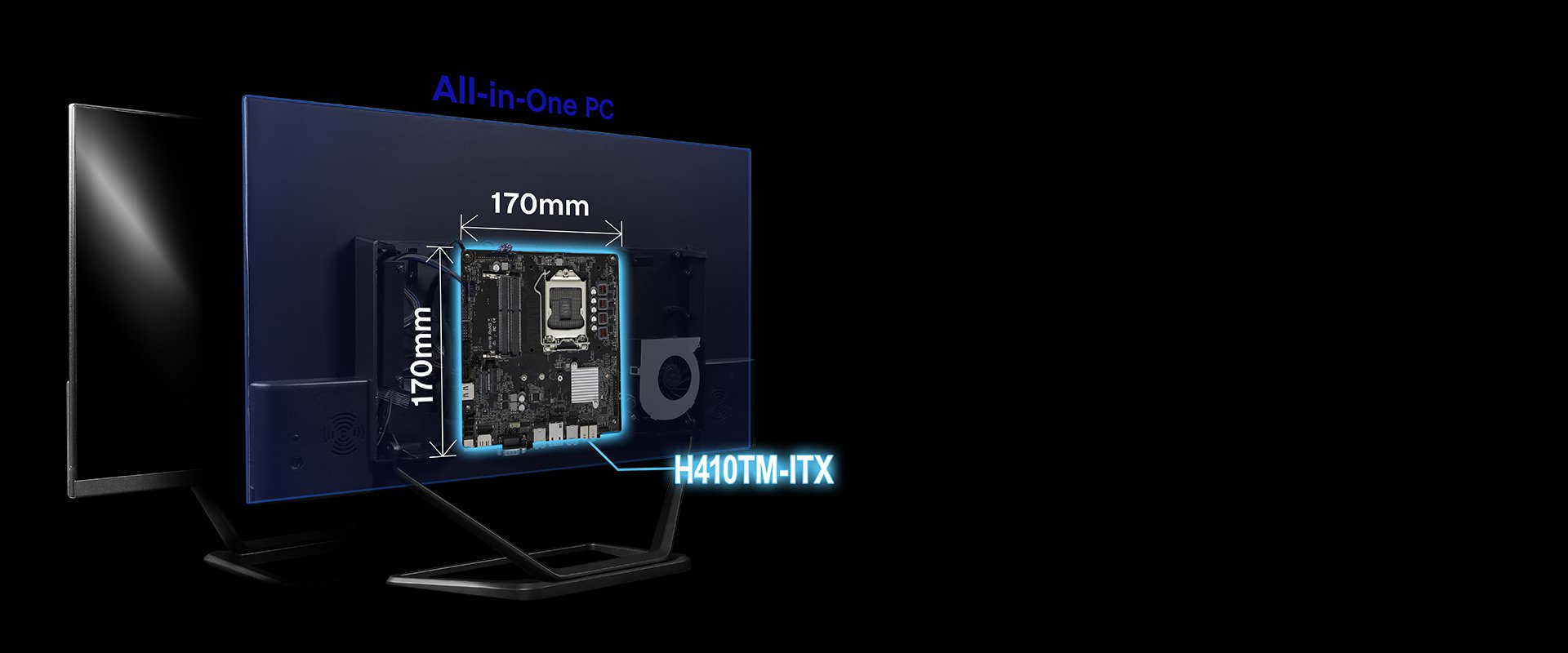

  - Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
  - Solid Capacitor design
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
