• Einzigartige Features
  Hervorragende Produktivität
  - PCIe Gen5 (Graphics, M.2)
  - Eight Channel DDR5
  - USB4 Type-C Ports (40 Gb/s)
  Solide Haltbarkeit

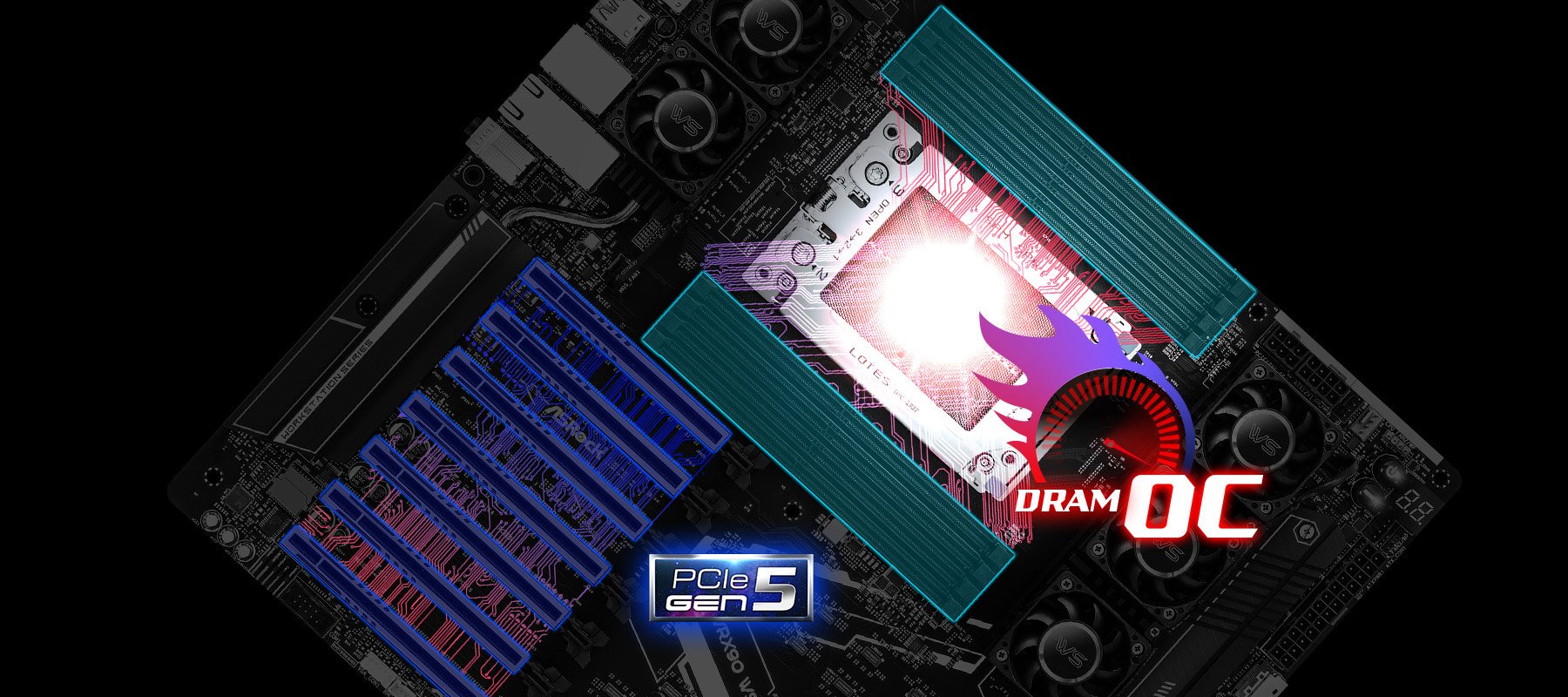

  - Ultra-verlustarmes PCB
  - 18+3+3 Power Phase, 110A SPS for VCore
  - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  Ultraschnelle Konnektivität
  - Dual Intel^® 10G LAN
  EZ-Update
  - ASRock Auto-Treiber-Installer
• CPU
  - Supports AMD Ryzen™ Threadripper™ PRO Processors
  - Supports AMD Socket sTR5
  - Supports ASRock Hyper BCLK Engine
• Chipsatz
  - AMD WRX90
• Arbeitsspeicher
  - Eight Channel DDR5 Memory Technology
  - 8 x DDR5 DIMM Slots*
  - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
  - Max. capacity of system memory: 2TB



  *Der S3-Modus (Ruhezustand) wird nur unterstützt, wenn 1 / 2 / 4 DIMM-Speichermodule installiert sind.
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
• Grafik

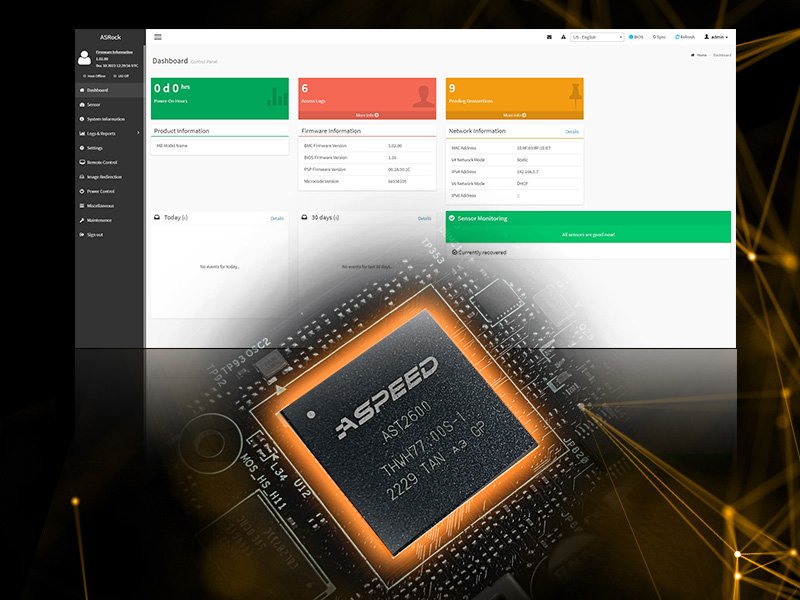

  - Aspeed AST2600 BMC Controller
  - 1 x DisplayPort 1.1a with max. Auflösung up to 1920x1200 @ 60Hz*



  *DisplayPort 1.1a does not support audio function.
• Audio
  - 7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC1220 Audio Codec)
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Nahimic Audio
• LAN
  2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel^® X710-AT2)
  - Support PXE 1 x Dedicated IPMI (Realtek RTL8211F)
• Steckplätze
  CPU:
  - 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*

  - 15μ Gold Contact in VGA PCIe Slots



  *Unterstützt NVMe-SSD als Boot-Festplatte
• Speicherplatz
  CPU:

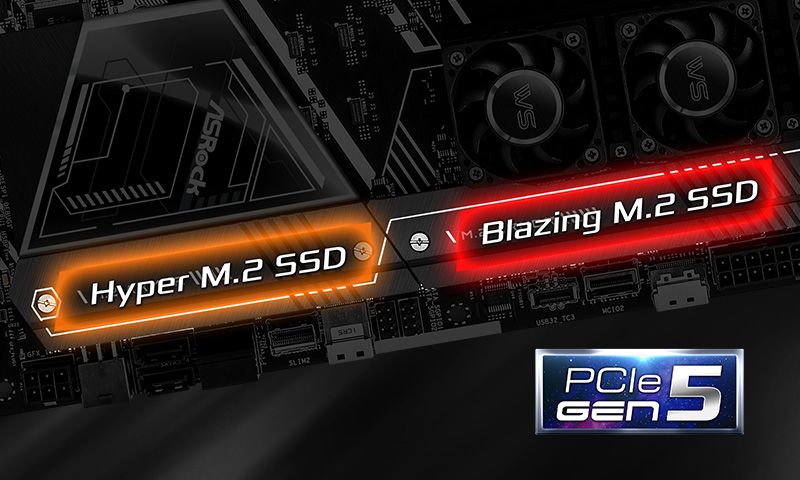

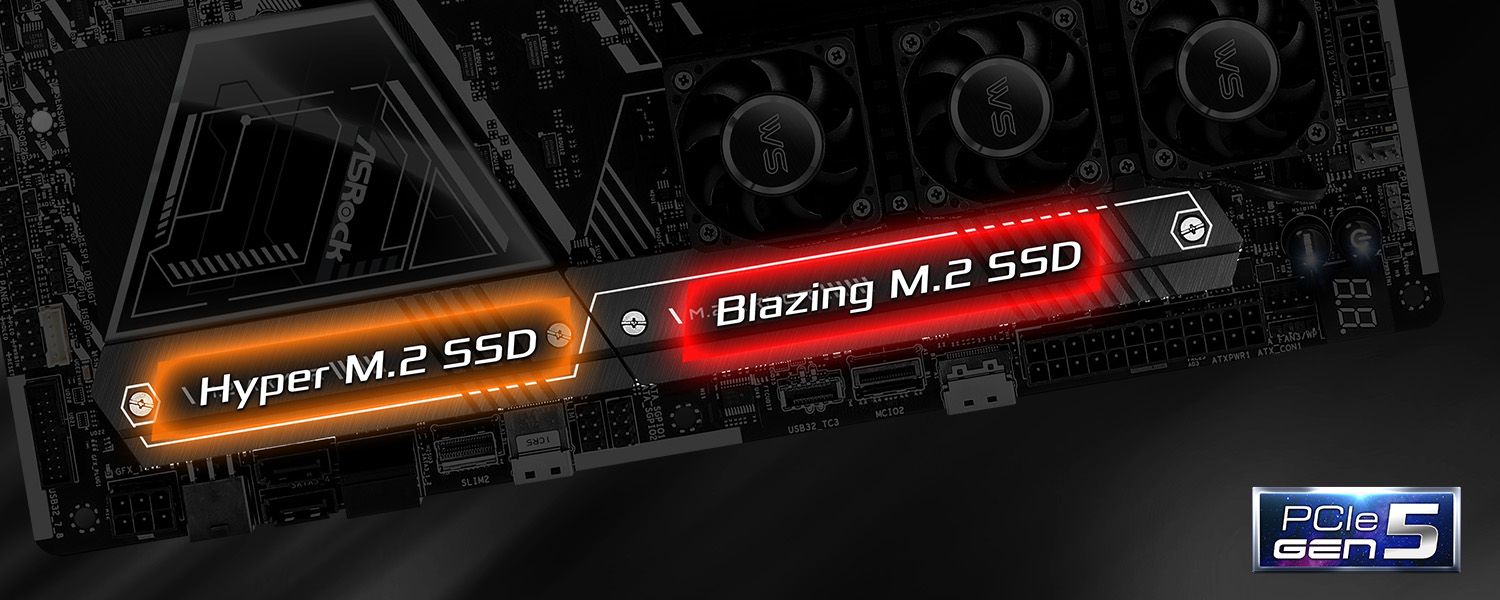

  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*

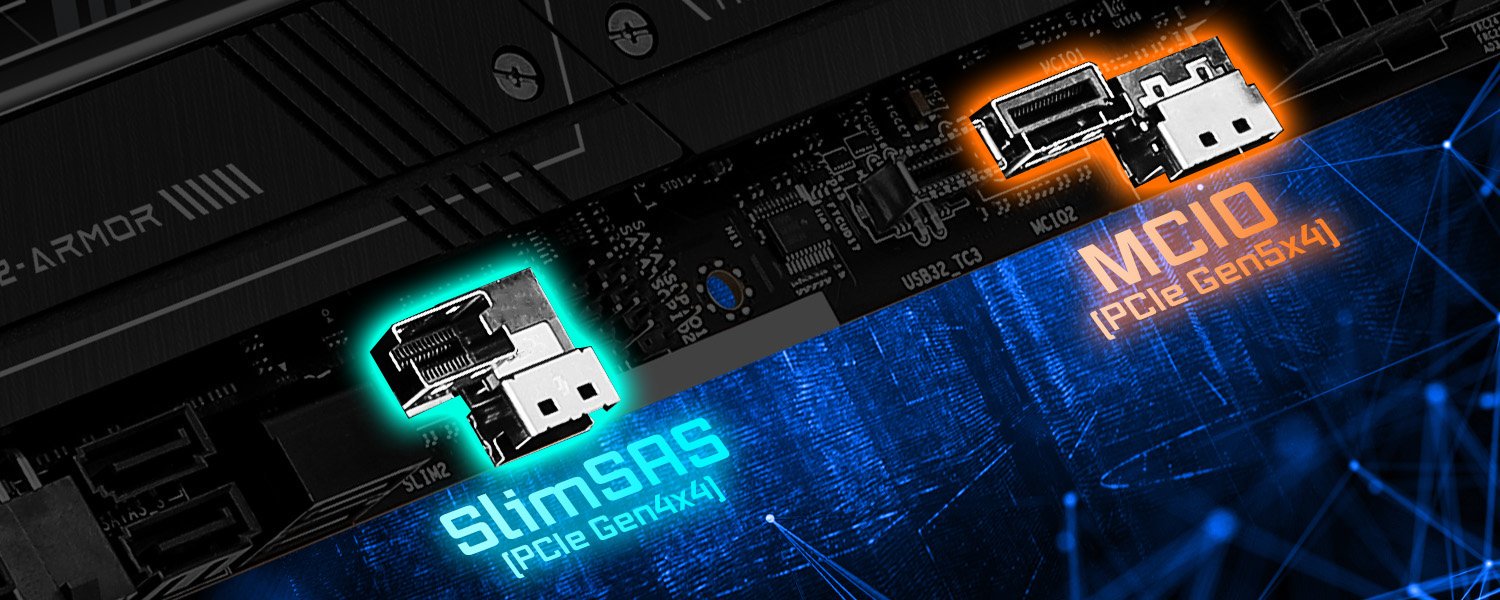

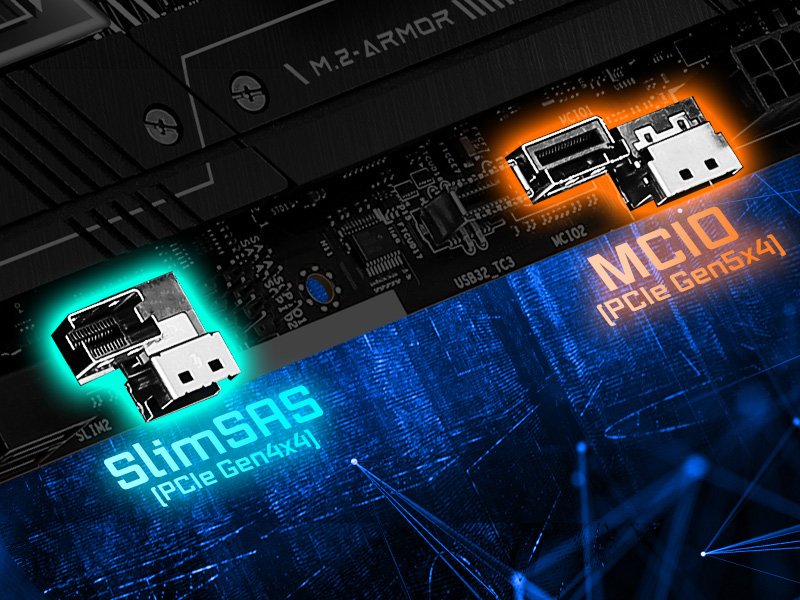

  - 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
  - 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
  - 4 x SATA3 6.0 Gb/s Connectors



  *Unterstützt NVMe-SSD als Boot-Festplatte
• RAID
  - Supports RAID 0, RAID 1 and RAID 10 for SATA Speichergeräte
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe Speichergeräte*



  *Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  CPU:
  - 2 x USB4 Type-C (Rear)
  - 4 x USB 3.2 Gen2 Type-A (Rear)
  Chipset:
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  - 4 x USB 2.0 (Front)



  *All USB ports support ESD Protection
• Anschluss
  - 2 x Thermistor-Kabel Headers
  - 1 x Front VGA Header
  - 1 x COM Port Header
  - 1 x Power LED and Speaker Header
  - 1 x Intelligent Platform Management Bus Header
  - 1 x PSU SMBus Header
  - 1 x BMC SMBus Header
  - 1 x Auxiliary Panel Header
  - 2 x Addressable LED Headers*
  - 1 x CPU Fan Connector (4-pin)**
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 1 x 3 pin ATX Power Connector*****
  - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
  - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
  - 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*******
  - 1 x Right Angle Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  - 2 x SGPIO Headers
  - 1 x CPU HP-SMBus Connector
  - 1 x Non Maskable Interrupt Button Header
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED
  - 1 x Clear CMOS Button



  *Support in total up to 5V/3A, 15W LED Strip

  **CPU_FAN1 supports the fan power up to 1A (12W).

  ***CPU_FAN2/WP supports the fan power up to 2A (24W).

  ****CHA_FAN1~3/WP support the fan power up to 2A (24W).

  *****Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU.

  ******It is required to connect both ATX12V1 and ATX12V2; Andernfalls wird das System möglicherweise nicht richtig hochgefahren.
  It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking.

  *******It is required to connect 6 pin PCIE 12V Power Cables to either GFX_12V1 or GFX_12V2; Andernfalls wird das System möglicherweise nicht richtig hochgefahren.
• Blende
  - 1 x DisplayPort 1.1a
  - 1 x Optical SPDIF Out Port
  - 2 x USB4 Type-C Ports (40 Gb/s)*
  - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  - 2 x USB 3.2 Gen1 Type-A Ports
  - 2 x RJ-45 LAN Ports
  - 1 x RJ45 Dediziertes IPMI-LAN Port
  - 1 x Line-Out-Buchse (Gold Audio Jack)
  - 1 x Mikrofon-Eingangsbuchse (Gold Audio Jack)



  *USB_TC1 supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging; USB_TC2 supports USB PD 3.0 up to 5V@3A (15W) charging.
• Software und UEFI
  Software
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock Full HD UEFI
  - ASRock Auto-Treiber-Installer
  - ASRock Sofort-Flash



  *Diese Tools können im Live Update & APP Shop heruntergeladen werden.
• Produktzubehör
  - 1 x Benutzerhandbuch
  - 1 x I/O Shield
  - 4 x SATA Data Cables
  - 2 x Thermistor-Kabels
  - 1 x Multi PSU Adaptor Cable
  - 2 x Screws for M.2 Sockets
  - 2 x Standoffs for M.2 Sockets
• Formfaktor
  - EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm
  - 14 Layer PCB
  - 2oz Copper PCB
• Betriebssystem
  - Microsoft^® Windows^® 11 64-bit
• Zertifizierungen
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
  - CEC Tier II ready

Die Spezifikationen können ohne vorherigen Hinweis geändert werden. Die Marken und Produktnamen sind Schutzmarken der jeweiligen Firmen. Alle Konfigurationen die von den original Spezifikationen abweichen werden nicht garantiert.

Das oben abgebildete User-Interface ist ein Referenzbeispiel. Das tatsächliche User-Interface kann von der Abbildung abweichen.
