B650M-HDV/M.2

  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

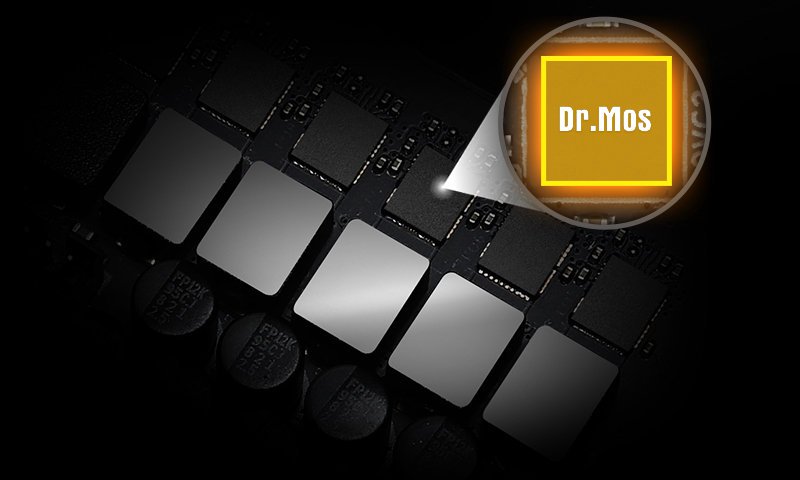

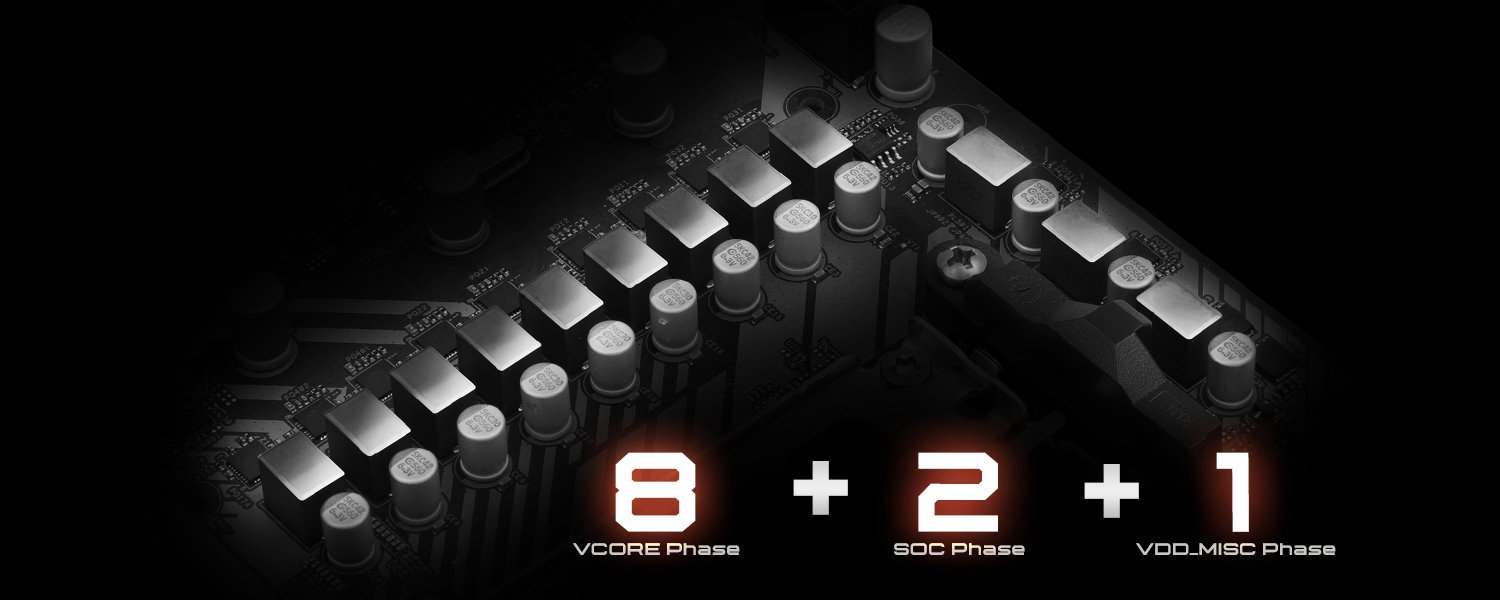

  • 8+2+1 Power Phase, Dr.MOS
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 7200+ (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
    1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2 Front Type-C,
    7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

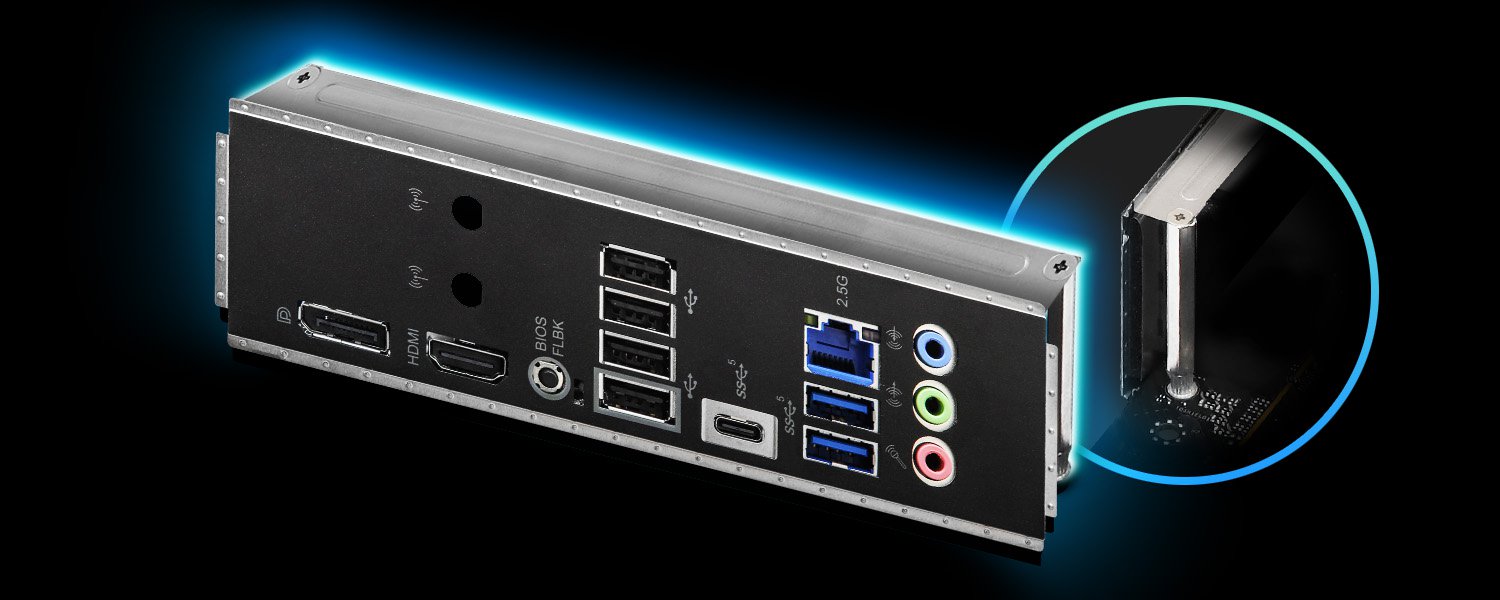

  • Pre-Installed I/O Shield
    *Actual support may vary by CPU.
