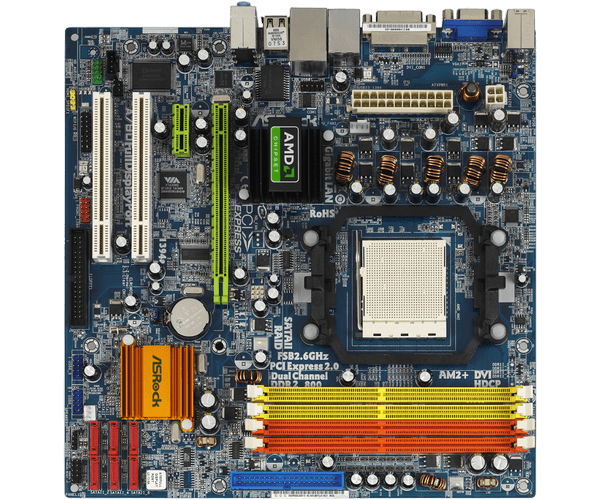

A780FullDisplayPort
  • Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  • AMD 780G + SB700 Chipsets
  • AM3 CPU Ready!
  • FSB 2600 MHz (5.2 GT/s)
  • Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
  • Integrated AMD RV610 graphics, DX10 class iGPU, Pixel Shader 4.0, Max. shared memory 512MB
  • Supports ATI™ Hybrid CrossFireX™
  • 1 x PCI Express 2.0 x16 slots (green @ x16 mode)
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
  • Supports PCIE Gigabit LAN 10/100/1000 Mb/s
  • Supports 2 x IEEE 1394 ports (one port on back panel, one header on board)
  • Graphics Output Options: D-Sub, DVI-D, HDMI and DisplayPort
  • Supports HDCP function to enjoy better quality with High Definition HDCP Encryption contents
  • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
  • 1 x WiFi/E header
  • Supports ASRock OC Tuner
  • Windows® Vista™ Premium 2008 Logo Ready
  • Free Bundle: 1 x ASRock DisplayPort Card, 1 x DVI-to-HDMI Converter
  • ASRock 1394_DVI I/O Plus: 1 x VGA/D-Sub Port, 1 x VGA/DVI-D Port, 1 x IEEE 1394 Port, 6 ready-to-use USB Ports
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
