Z590M Pro4

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors

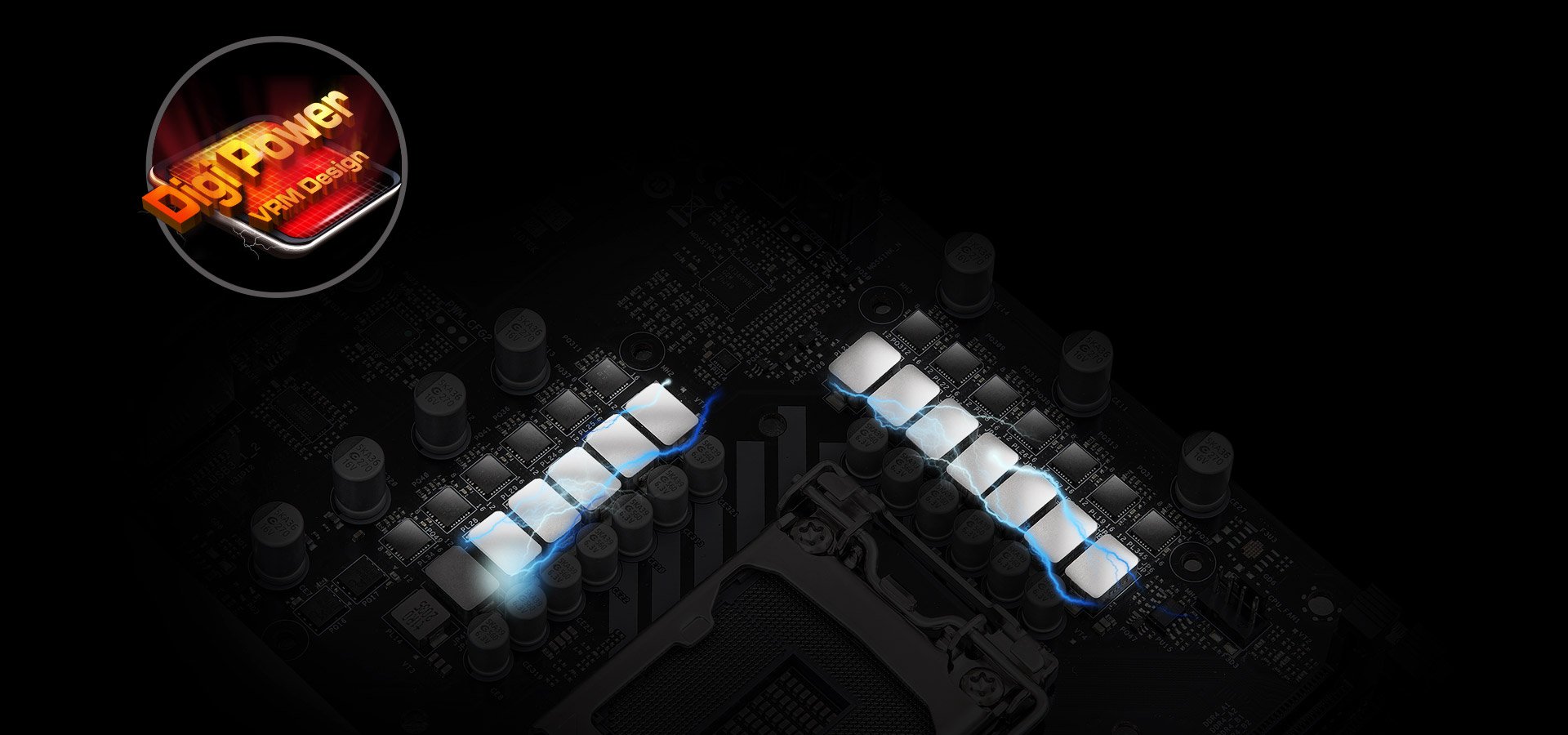

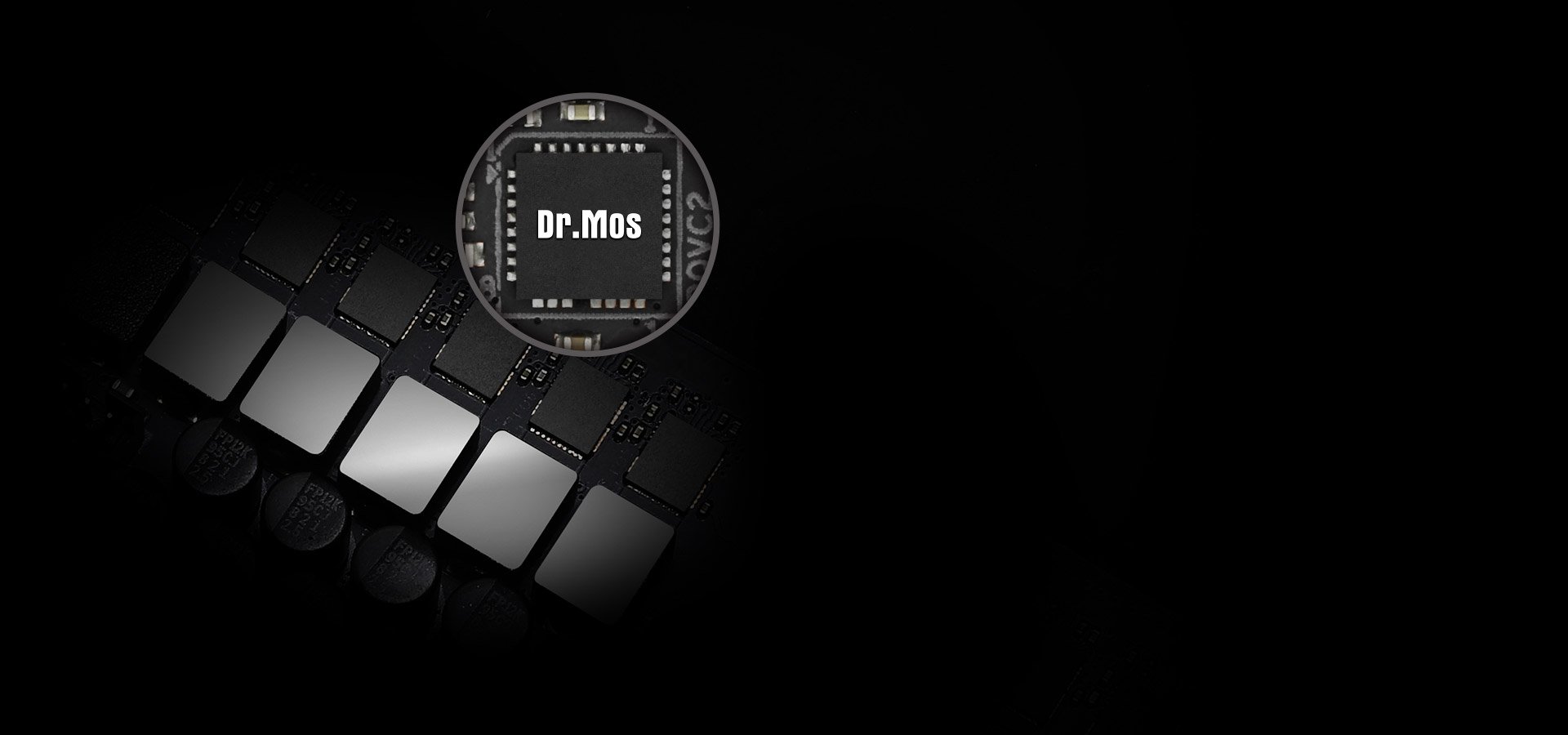

  • 12 Phase Dr.MOS Power Design
  • Supports DDR4 4800MHz (OC)

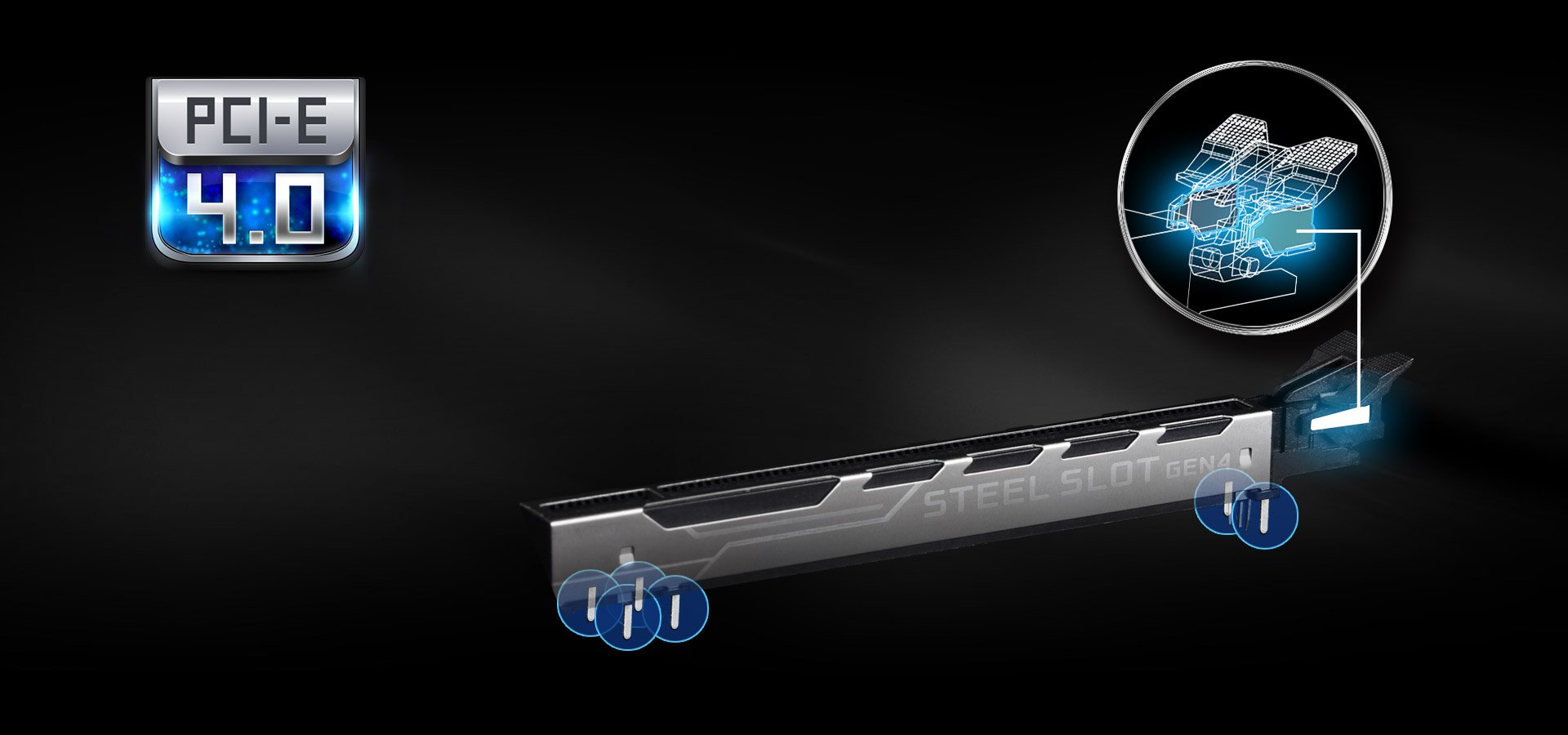

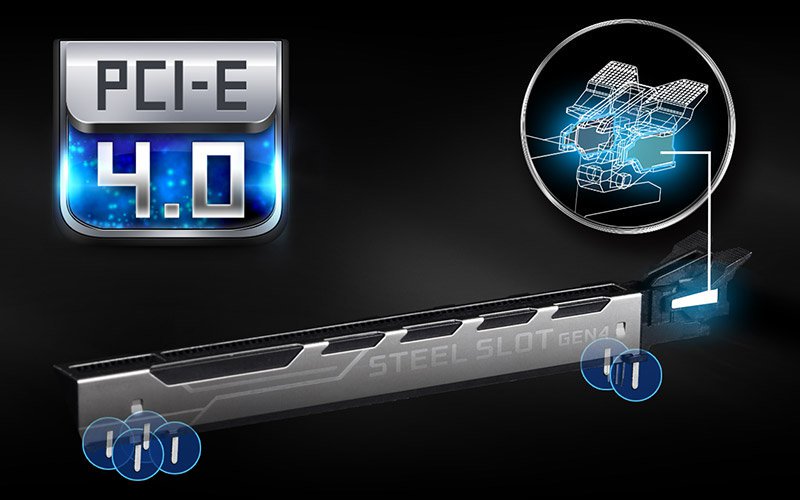

  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
    1 x M.2 Key-E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

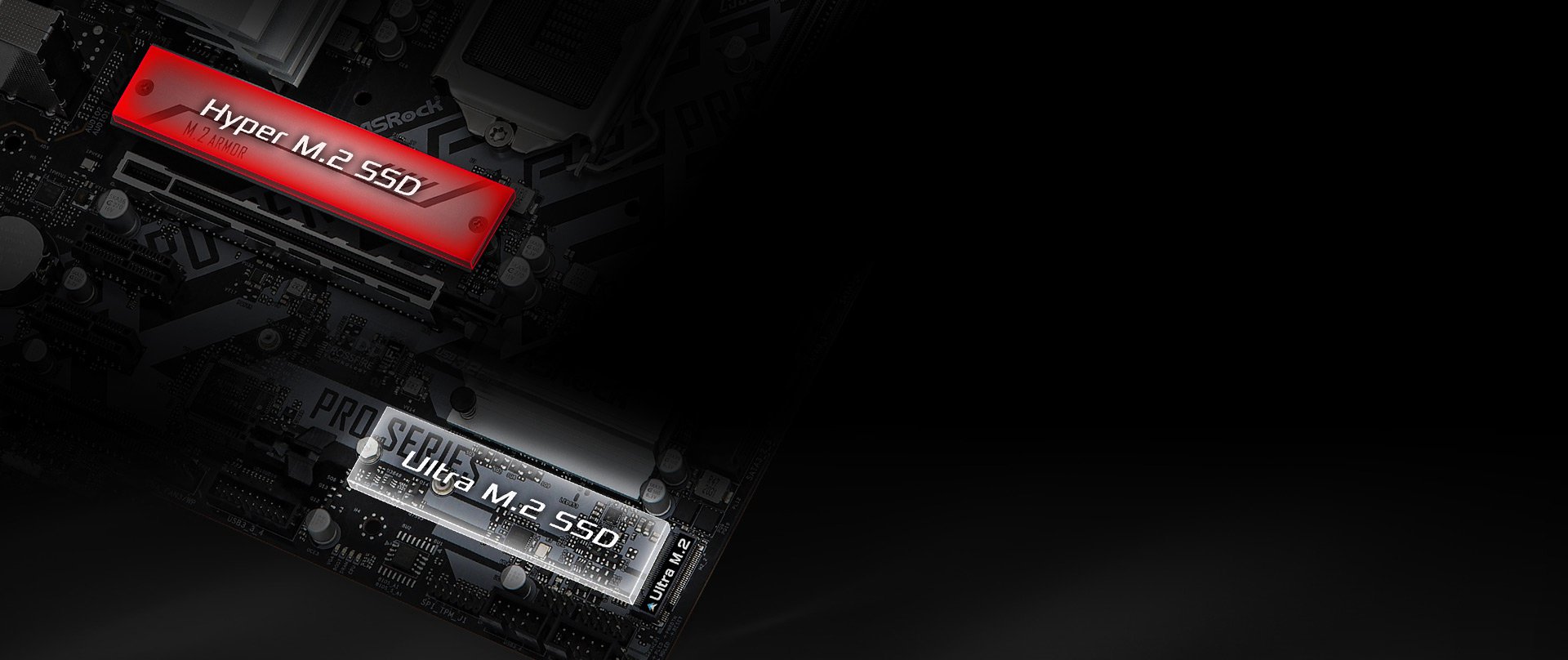

  • 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
    1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 x Rear USB 3.2 Gen2 (10Gb/s)
    7 x USB 3.2 Gen1 (2 x Rear, 4 x Front, 1 x Front Type-C), 6 x USB 2.0 (2 x Rear, 4 x Front)
  • Intel® Gigabit LAN
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
