• Unique Feature
  Superb Productivity
  - Dual Channel DDR5
  Rock-Solid Durability
  - 8+1+1 Power Phase design
  EZ Update
  - ASRock Auto Driver Installer
• CPU
  - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Chipset
  - AMD A620
• Memory
  - Dual Channel DDR5 Memory Technology
  - 2 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  - Max. capacity of system memory: 128GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.0 TMDS/FRL 6G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz
  - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
• Slots
  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  - 1 x PCI Slot
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  * Supports NVMe SSD as boot disks
• Storage
  CPU:

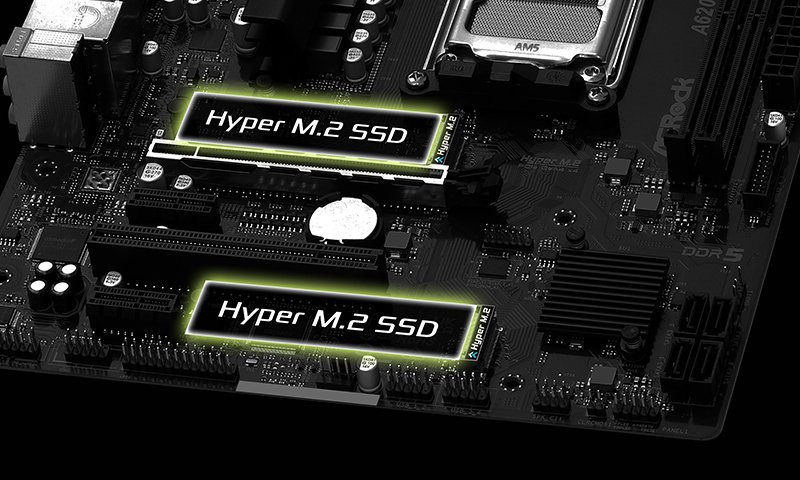

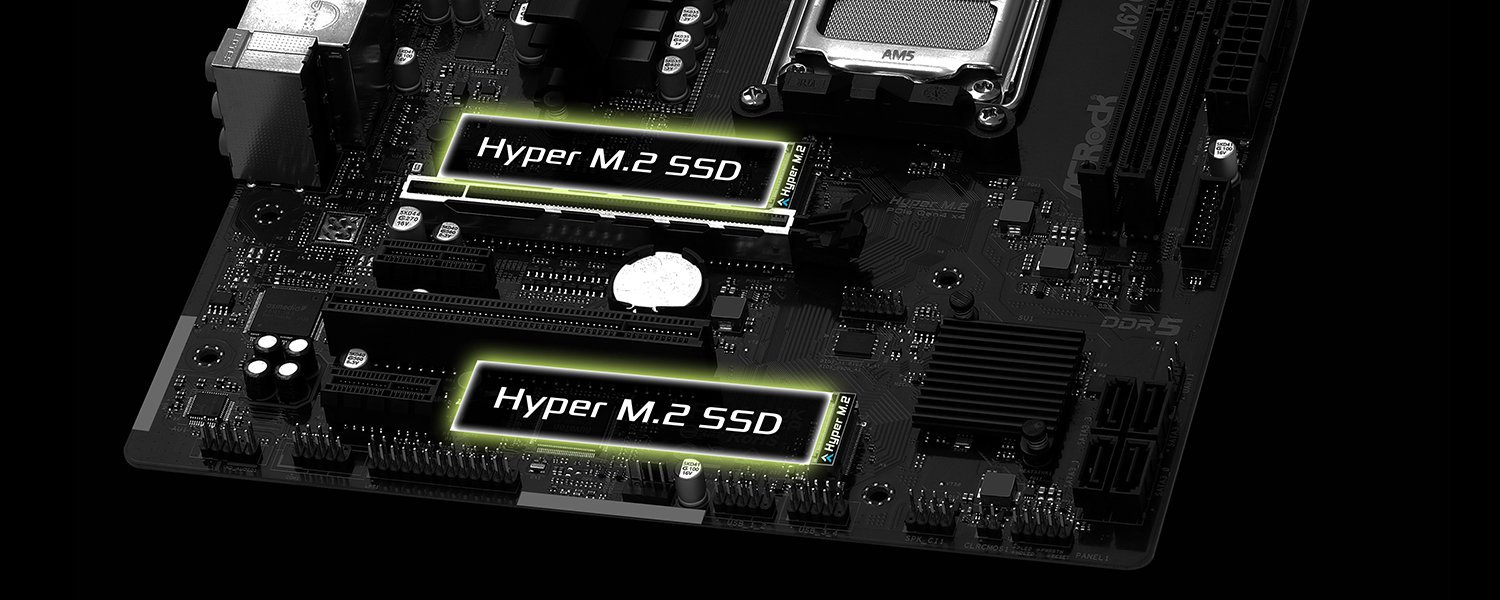

  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 4 x SATA3 6.0 Gb/s Connectors



  * Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*



  * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  CPU:
  - 4 x USB 3.2 Gen1 Type-A (Rear) Chipset:
  - 1 x USB 3.2 Gen2 Type-C (Rear)
  - 1 x USB 3.2 Gen2 Type-A (Rear)
  - 2 x USB 3.2 Gen1 Type-A (Front)
  - 4 x USB 2.0 (Front)



  * All USB ports support ESD Protection
• Connector
  - 1 x Print Port Header
  - 1 x SPI TPM Header
  - 1 x COM Port Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis Fan Connector (4-pin)**
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)



  * CPU_FAN1 supports the fan power up to 1A (12W).
  ** CHA_FAN2 supports the fan power up to 1A (12W).
  *** CHA_FAN1/WP support the fan power up to 2A (24W).
  *** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x Serial Port: COM2
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  - 4 x USB 3.2 Gen1 Type-A Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
• OS
  - Microsoft Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
