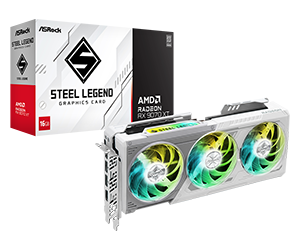

| Model |  Radeon RX 9070 XT Steel Legend Dark 16GB |  Radeon RX 9070 XT Steel Legend 16GB |
|---|
| Graphics Engine | - AMD Radeon™ RX 9070 XT | - AMD Radeon™ RX 9070 XT |
| Bus Standard | - PCI® Express 5.0 x16 | - PCI® Express 5.0 x16 |
| DirectX | - 12 Ultimate | - 12 Ultimate |
| OpenGL | - 4.6 | - 4.6 |
| Memory | - 16GB GDDR6 | - 16GB GDDR6 |
| Engine Clock | - Boost Clock: Up to 2970 MHz* - Game Clock: 2400 MHz** *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. | - Boost Clock: Up to 2970 MHz* - Game Clock: 2400 MHz** *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | - 4096 | - 4096 |
| Memory Clock | - 20 Gbps | - 20 Gbps |
| Memory Bus | - 256-bit | - 256-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 | - Digital Max Resolution: 7680 x 4320 |
| Interface | - 3x DisplayPort 2.1a - 1x HDMI 2.1b | - 3x DisplayPort 2.1a - 1x HDMI 2.1b |
| HDCP | - Yes | - Yes |
| Multi-view | - 4 | - 4 |
| Power Connector | - 2x 8-pin | - 2x 8-pin |
| Accessories | - 1x Quick Installation Guide | - 1x Quick Installation Guide |
| Dimensions | - 298 x 131 x 58 mm, 2.9-slot | - 298 x 131 x 58 mm, 2.9-slot |
