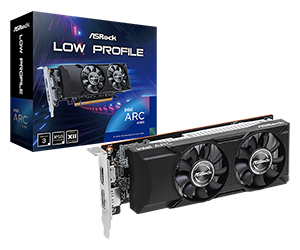

| Model |  Intel Arc A380 Challenger ITX 6GB OC |  Intel Arc A380 Low Profile 6GB |
|---|
| Graphics Engine | - Intel® Arc™ A380 Graphics | - Intel® Arc™ A380 Graphics |
| Bus Standard | - PCI® Express 4.0 x8 | - PCI® Express 4.0 x8 |
| DirectX | - 12 Ultimate | - 12 Ultimate |
| OpenGL | - 4.6 | - 4.6 |
| Memory | - 6GB GDDR6 | - 6GB GDDR6 |
| Engine Clock | - Base Clock: 2250 MHz | - Base Clock: 2000 MHz |
| Stream Processors | - 128 | - 128 |
| Memory Clock | - 15.5 Gbps | - 15.5 Gbps |
| Memory Bus | - 96-bit | - 96-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 | - Digital Max Resolution: 7680 x 4320 |
| Interface | - 1 x HDMI™ 2.0b - 3 x DisplayPort™ 2.0 with DSC | - 1 x HDMI™ 2.0b - 1 x DisplayPort™ 2.0 with DSC |
| HDCP | - Yes | - Yes |
| Multi-view | - 4 | - 2 |
| Power Connector | - 1 x 8-pin | |
| Accessories | - 1 x Quick Installation Guide | - 1 x Quick Installation Guide - 1 x Full Height Bracket |
| Dimensions | - 190 x 124 x 39 mm, 2-slot | - 169 x 69 x 39 mm, 2-slot |
