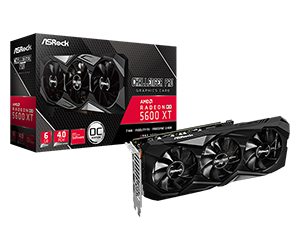

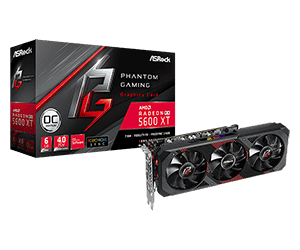

| Model |  Radeon RX 5600 XT Phantom Gaming D3 6G OC |  Radeon RX 5600 XT Challenger Pro 6G OC |
|---|
| Graphics Engine | - AMD Radeon™ RX 5600 XT | - AMD RX 5600 XT |
| Bus Standard | - PCI® Express x16 Gen4 | - PCI® Express x16 Gen4 |
| DirectX | - 12 | - 12 |
| OpenGL | - 4.6 | - 4.6 |
| Memory | - GDDR6 6GB | - GDDR6 6GB |
| Engine Clock | - Boost Clock: Up to 1750 MHz - Game Clock: Up to 1670 MHz - Base Clock: 1530 MHz *Need to update L10 version VBIOS or later | - Boost Clock: Up to 1750 MHz * - Game Clock: Up to 1615 MHz - Base Clock: 1420 MHz |
| Stream Processors | - 2304 | - 2304 |
| Memory Clock | - 14 Gbps *Need to update L12 version VBIOS or later | - 14.0 Gbps |
| Memory Bus | - 192-bit | - 192-bit |
| Resolution | - Digital Max Resolution: 8K HDR 60Hz | - Digital Max Resolution: 8K HDR 60Hz |
| Interface | - 1 x HDMI 2.0b - 3 x DisplayPort 1.4 with DSC 1.2a | - 1 x HDMI 2.0b - 3 x DisplayPort 1.4 with DSC 1.2a |
| HDCP | - Yes | - Yes |
| Multi-view | - 4 | - 4 |
| Power Connector | - 1 x 8-pin | - 1 x 8-pin |
| Accessories | - 1 x Quick Installation Guide | - 1 x Quick Installation Guide |
| Dimensions | - 290.6 x 126.5 x 53.1 mm | - 279.93 x 117.70 x 52.42 mm |
