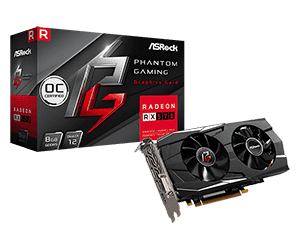

| Model |  Phantom Gaming X Radeon RX570 8G OC |  Phantom Gaming D Radeon RX570 8G OC |
|---|
| Graphics Engine | - AMD Radeon™ RX 570 | - AMD Radeon™ RX 570 |
| Bus Standard | - PCI® Express 3.0 x16 | - PCI® Express 3.0 x16 |
| DirectX | - 12 | - 12 |
| OpenGL | - OpenGL 4.5 | - OpenGL 4.5 |
| Memory | - GDDR5 8GB | - GDDR5 8GB |
| Engine Clock | - Up to 1280 MHz | - Up to 1270 MHz |
| Stream Processors | - 2048 | - 2048 |
| Memory Clock | - 7000 MHz | - 7000 MHz |
| Memory Bus | - 256-bit | - 256-bit |
| Resolution | - Digital Max Resolution: 8K (7680 x 4320) | - Digital Max Resolution: 8K (7680 x 4320) |
| Interface | - 1 x Dual-link DVI-D - 1 x HDMI 2.0 - 3 x DisplayPort 1.4 | - 1 x Dual-link DVI-D - 1 x HDMI 2.0 - 3 x DisplayPort 1.4 |
| HDCP | - Yes | - Yes |
| Multi-view | - 5 | - 5 |
| Power Connector | - 1 x 8-pin | - 1 x 6-pin |
| Accessories | - 1 x Support CD - 1 x Quick Installation Guide | - 1 x Support CD - 1 x Quick Installation Guide |
| Dimensions | - 278.81 x 126.78 x 41.91mm | - 236.2 x 127.5 x 41.91 mm |
