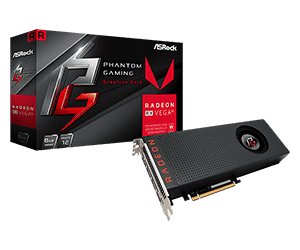

| Model |  Phantom Gaming X Radeon RX VEGA 56 8G |  Phantom Gaming X Radeon RX580 8G OC |
|---|
| Graphics Engine | - AMD Radeon™ RX VEGA 56 | - AMD Radeon™ RX 580 |
| Bus Standard | - PCI Express x16 Gen3 | - PCI® Express 3.0 x16 |
| DirectX | - 12 | - 12 |
| OpenGL | - OpenGL 4.5 | - OpenGL 4.5 |
| Memory | - HBM2 8GB | - GDDR5 8GB |
| Engine Clock | - Boost Clock: 1471 MHz - Base Clock: 1156 MHz | - Up to 1380 MHz |
| Stream Processors | - 3584 | - 2304 |
| Memory Clock | - 800 MHz | - 8000 MHz |
| Memory Bus | - 2048-bit | - 256-bit |
| Resolution | - Digital Max Resolution: 8K (7680 x 4320) | - Digital Max Resolution: 8K (7680 x 4320) |
| Interface | - 1 x HDMI 2.0 - 3 x DisplayPort 1.4 | - 1 x Dual-link DVI-D - 1 x HDMI 2.0 - 3 x DisplayPort 1.4 |
| HDCP | - Yes | - Yes |
| Multi-view | - 4 | - 5 |
| Power Connector | - 2 x 8-pin | - 1 x 8-pin |
| Accessories | - 1 x Support CD - 1 x Quick Installation Guide | - 1 x Support CD - 1 x Quick Installation Guide |
| Dimensions | - 280 x 127.2 x 41 mm | - 278.81 x 126.78 x 41.91mm |
