ION 330-BD
 |
- Intel® Dual Core Atom™ 330
- NVIDIA® ION™ graphics processor
- BD Combo
- Small (2.5L)
- Silent (acoustic below 26 dB)
- Stylish (High gloss outlook)
- Energy Star 5.0 level (Low power consumption)
- ASRock OC Tuner (Overclocking)
- ASRock Instant Boot
Note: Below specifications may differ from areas and change without notice. Please check the specific specifications with your local dealers.
|
 Youtube Live Demo
Awards.gif) .gif) .gif) .gif) .gif)  .gif)     .gif) .gif)  .gif)   .gif)   .gif) .gif)  .gif)  .gif)   .gif)  .gif)    .gif)  .gif)   .gif) .gif)  .gif)
Features
Dual-Core Atom 330  A nettop, based on the Intel ® Atom™ processor, is a an innovative device offering basic PC functionality. These purpose-built devices deliver an affordable basic computing experience and easy access to the Internet. low power solution designed for:• Content consumption + light content creation• Easy access to the Internet • Basic computing + light multitaskingNVIDIA® ION™ GPU with Full HD 1080p playback capability  ASRock ION 330 comes with the latest Atom™ + NVIDIA ® ION™ graphics processor. It satisfies you with the high quality audio and visual environment. Comparing with other system configuration, ASRock ION 330 provides 10 times faster in speed for graphics and video encoding performance scaling. In addition, it also supports Full HD 1080p (Blu-ray /HD-DVD) * playback, 3D gaming, premium Windows ® vista, and Windows ® 7. * Blu-ray/HD-DVD disc is supported by Blu-ray/HD-DVD drive. BD Combo  BD (Blu-ray Disc) Combo technology ushers in a new era of digital life. With the same physical dimension with DVDs and CDs, BD Combo is capable of burning and reading DVD and CD as well. Blu-ray disc has even 10 times storage capacity of standard DVD. By adopting the SATA port, BD Combo provides an easy installation. BD Combo can definitely bring you the efficient and stable data transfer as well as the dazzling audio and visual experience. Small (save more space)
Silent (acoustic below 26 dB)
Energy Star 5.0 level (Low power consumption)  Energy Star is an international standard for energy efficient consumer products. Devices carrying the Energy Star logo save 20%-30% on average. ASRock NetTop series Energy Star 5.0 Test Result: | Model Name | CPU | Memory | OS | Supply Voltage | | 115 Volts AC, 60 Hz | 100 Volts AC, 50 Hz | 230 Volts AC, 50 Hz | | ASRock ION 330 series | Atom 330 | 1G 800 x 2 | XP | 99.461 TEC(KWh) | 98.226 TEC(KWh) | 101.147 TEC(KWh) |
ASRock NetTop series fully support Energy Star 5.0 ASRock Instant Boot  ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC in just a blink of an eye! Not only it saves energy, money, it also helps system running speed. This feature is applicable to both Windows ® XP and Windows ® Vista™! ASRock OC Tuner  ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance. All Solid Capacitors Design  Our long life solid capacitor is sourced form 100% Japan-made high-quality Conductive Polymer Capacitors. Dual-Channel Memory Design  ASRock ION 330 comes with Dual-Channel memory, which is 2 times faster than the single channel memory. Comparing with other NetTop which supports only single channel memory, ASRock ION 330 with Dual Channel memory design can truly deliver the performance of Atom 330 dual-core CPU. ASRock Top Production & Quality Control   - EMI Test - Vibration Test - Drop Test - Acoustic Test - Thermal Shock Test - Power Consumption Test - Power Line Disturbance Test
Software Suite
 ASRock Software suite, offers a string of user-friendly software, ensures you will have the rich operating experience. Cyberlink media tool provides a zero barriers way to play, burn, backup, and edit your multimedia contents.
CyberLink DVD Suite - OEM & Trial
CyberLink Power2Go 6.1 LE - OEM, is the All-Media Disc Burning software which offers a hassle-free approach to burn, backup videos, photos, music and data onto Blu-ray Discs and DVDs.
CyberLink MediaShow 4.1 SE - OEM, is a fast and easy way to preserve and share your life’s best moments. It has a string of features such as one-click fixes, face tagging.. etc and provides a convenient way for organizing and sharing your photos and videos.
CyberLink PowerDVD 8.0 DTS - Trial, world-renowned PowerDVD 8 DTS delivers outstanding DVD movie playback quality on your PC.
CyberLink PowerDirector 8.0 - Trial, is a powerful video editing tool with unlimited possibilities. It offers more, video enhancement and editing tools, enables you to edit high-definition videos including AVCHD, and allows output to PSP iPod and Blu-ray Disc.
CyberLink PowerBackup 2.5 - Trial, provides the safest way to protect your valuable data. With this, you will no need to worry about the data damage or loss anymore.
Accessories
Product Specifications
| Specifications |
| CPU | - Intel® Atom™ 330 1.6GHz (Dual core) |
| OS | - Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant |
| Chipset | - NVIDIA® ION™ graphics processor |
| Memory | - 2GB DDR2 800 MHz memory, support dual channel, maximum memory capacity 4GB*
*Due to the CPU limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32 / 64-bit OS. |
| VGA | - NVIDIA® ION™ graphics, support DX10 / Full HD 1080p (Blu-ray / HD-DVD)* playback
*Blu-ray/HD-DVD disc is supported by Blu-ray/HD-DVD drive. |
| HDD | - 2.5” HDD 320GB |
| ODD | - BD Combo*
*For CD-RW write type, only support 4x, 8x, 10x CD-RW Disc format. |

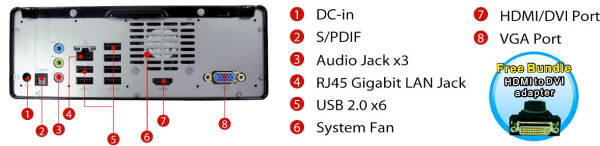

| I/O | - 1 x HDMI (with HDMI to DVI adapter), 1 x D-Sub VGA, 6 x USB 2.0, 1 x S/PDIF (Optical) |
| LAN | - Gigabit LAN |
| Sound | - HD Audio 5.1 channel |
| System Acoustic | - Below 26dB |
| Power Unit | - 65W/19V Adapter |
| Dimension | - 195mm (W) x 70mm (H) x 186mm (L) |
| Volume (liters) | - 2.5L |
| Weight | - 1.7Kg |
Please noted that AHCI mode is not supported under Windows® XP/XP 64bit OS.
