ION 330HT series introduction (Chinese version with English subtitle)
ION 330HT series introduction Part I
ION 330HT series introduction Part II
Intel® Dual Core Atom™ 330
Equipped with the Intel® Dual Core Atom™ 330 Processor, ASRock ION 330 series bring you the highest performance with the lowest power consumption.
NVIDIA® ION™ GPU with Full HD 1080p playback capability
ASRock ION 330 series come with the powerful NVIDIA® ION™ graphics processor which is well-known for it’s outstanding graphics performance.
EuP 2.0 Ready
Save most power consumption with ASRock NetTop ION 330 series ! By adopting Nuvoton NCT6775F IC, these two models have achieved the EuP2.0 standard which indicates the total AC power consumption of the completed system is under 0.5W in off mode.
Get the Cinema-Style Sound from your PC! With DTS, ASRock ION 330 series can let you enjoy a better way of experiencing music, movies and games. It delivers the advanced and excellent audio quality, enables you to hear every detail in riveting surround sound.
802.11 b/g/n wireless LAN
Much faster wireless connections over longer distance! High speed networking of 802.11n (150Mbps) for fast download, file transfer and media streaming.
Capable to support RAID 0, 1 by adopting the 2nd 2.5” HDD
Unprecedentedly, ASRock ION 330 series are capable to support RAID 0, 1 by adopting the second 2.5” HDD in the 2.5 Liter system! You can enjoy a faster transfer speed and never be afraid the data loss or damages!
Powered eSATA/USB port
Powered eSATA/USB connector can not only support USB device, but also eSATA devices without additional power source. It is compatible with both eSATA and USB interfaces.

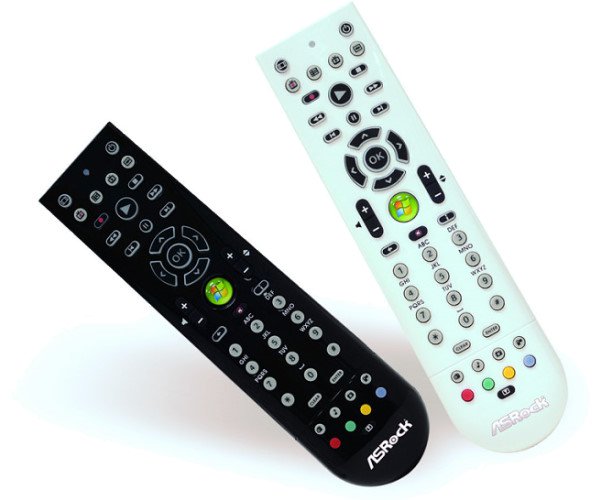

MCE Remote Controller
Enjoy more of your favorite entertainment by MCE (Media Center Edition) remote controller! The MCE features the entertainment center which allows you to enjoy a more convenient way of watching DVDs, TV, listening to music, and so on by the easy-operate remote controller.
Energy Star 5.0 Level
We require every ASRock NetTop pass the Energy Star 5.0 standard, in order to avoid unnecessary power consumption.
Allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), but also provides clean OS and saves the most power energy.
ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance.
HDMI™ (High-Definition Multimedia Interface)
This product supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
Home Theater PC designed for you
MCE remote controller: The bundled ASRock exclusive remote controller and Microsoft MCE (Media Center Edition) build up your entertainment database. You can use the MCE remote controller to power on your PC, and enjoy all the video and audio entertainments at the first time, just like the use of general audio/video devices!
ASRock ION 330HT series mini HTPC supports various formats of HD videos downloaded from internet using software.

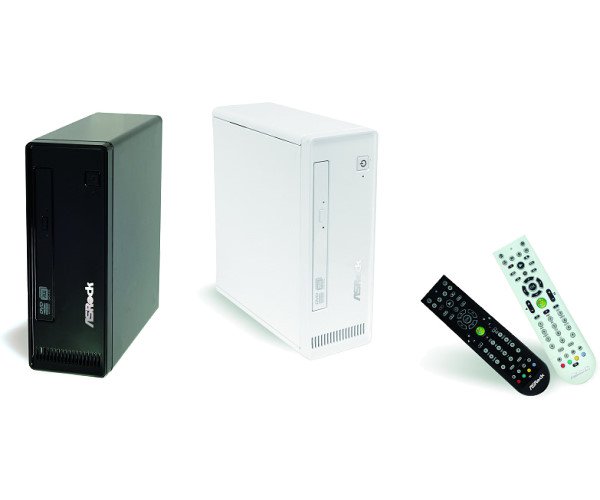

ASRock ION 330HT series HTPC is extraordinarily designed with High Glossy Surface Paint housing, which is similar to the paint of a Mercedes-Benz. It has a streamlined and compact appearance with the dazzling black and white color to display a calm and reserved mood. The small, sleek, fashionable designs provide the ultra-portable function for our HTPC, and it’s ideal for setting in your living room!
It comes with Intel low-power Atom 330 dual-core processor, with first-class overclocking performance. It also has equipped with NVIDIA ION Graphics processer and supports hardware-based decoding function which provides you the stable and excellent HD1080p high definition video/audio playback capability.
Build-in ALC890 chip supports DTS decoding function, which converts the traditional audio output into 7.1-channel surrounding audio. You can enjoy the cinema-style entertainment and can even hear every detail in riveting surround sound at home.
ASRock ION 330HT series HTPC is running a silent operation which is merely 26dB, to ensure you a quiet computing environment even when you put the ASRock ION 330HT system beside your bed or on the desk.
High speed WiFi 802.11n bandwidth sharing function
ASRock ION 330HT series mini HTPC, has two invisible antennas (placed in a vertical/horizontal position) hidden inside the front panel, which provide larger signal coverage and faster connection speed. With the unrestricted-direction antennas design, the HTPC can be used as the wireless network receiver, as well as the network bandwidth sharing device.
Supports 802.11n wireless network standard which provide better signal coverage and faster speed than ordinary network sharing devices.
A perfect BT downloading machine - Environment-friendly and power-saving
It has passed the Energy Star 5.0 certification. There’s no power waste when execute BT downloading task. You can enjoy the real green digital life!
ASRock is the 1st to achieve EUP 2.0 standard which is a provision regulated by European Union to define the power consumption for the completed system (will execute in 2013)! By adopting the NuvoTon NCT6775F IC, the power consumption of ASRock ION 330HT series HTPC in off mode is lower than 0.5W. This will help your system to save energy by 80%.
If the ambient temperature (without air-conditioner) is higher than 28°C, normally the mini PC system works in this circumstance may easily crash or some components may be damaged. However, ASRock ION 330HT series, with excellent efficiency in cooling fan and perfect thermal design, can allow the ambient temperature up to 40°C. Moreover, with 100% Japan-made high-quality all solid capacitor design, even if it operates for a long time, the system is not easy to crash!
ASRock exclusive Good night LED function can turn off the unnecessary LEDs for you. When you download through BT at night or enjoy a movie with the lights off. You won’t be disturbed by the annoying LED lights any more.
The only mini HTPC which supports 2nd HDD and RAID 0, 1 function in industry
When using RAID 0, you can enlarge the HDD capability and greatly improve the system performance.
When using RAID 1, you can back up your favorite photos, videos and documents at any time. It helps you to protect the important files which are shared with the family You can enjoy your digital life without worrying about data loss or damage!
ASRock Software Suite
ASRock Software suite, offers a string of user-friendly software, ensures you will have the rich operating experience.
CyberLink DVD Suite - OEM & Trial
CyberLink Power2Go 6.1 LE - OEM, is the All-Media Disc Burning software which offers a hassle-free approach to burn, backup videos, photos, music and data onto Blu-ray Discs and DVDs. CyberLink MediaShow 4.1 SE - OEM, is a fast and easy way to preserve and share your life’s best moments. It has a string of features such as one-click fixes, face tagging.. etc and provides a convenient way for organizing and sharing your photos and videos. CyberLink PowerDVD 8.0 DTS - Trial, world-renowned PowerDVD 8 DTS delivers outstanding DVD movie playback quality on your PC. CyberLink PowerDirector 8.0 - Trial, is a powerful video editing tool with unlimited possibilities. It offers more, video enhancement and editing tools, enables you to edit high-definition videos including AVCHD, and allows output to PSP iPod and Blu-ray Disc. CyberLink PowerBackup 2.5 - Trial, provides the safest way to protect your valuable data. With this, you will no need to worry about the data damage or loss anymore.
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
- NVIDIA® ION™ graphics processor
- Support DDR2 800MHz, 2 x SO-DIMM slots, default 2GB (2 x 1GB), Maximum up to 4GB*
*Due to the CPU limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32 / 64-bit OS.
- NVIDIA® ION™ Graphics, support DX10 / Full HD 1080p (Blu-ray)* playback
*Blu-ray disc is supported by Blu-ray drive.
- 320GB 2.5" HDD, capable to support RAID 0, 1 by adopting the 2nd 2.5" HDD
*Please noted that AHCI/RAID mode is not supported under Windows® XP/XP 64bit OS.
- DVD Super Multi
- 802.11b/g/n wireless LAN

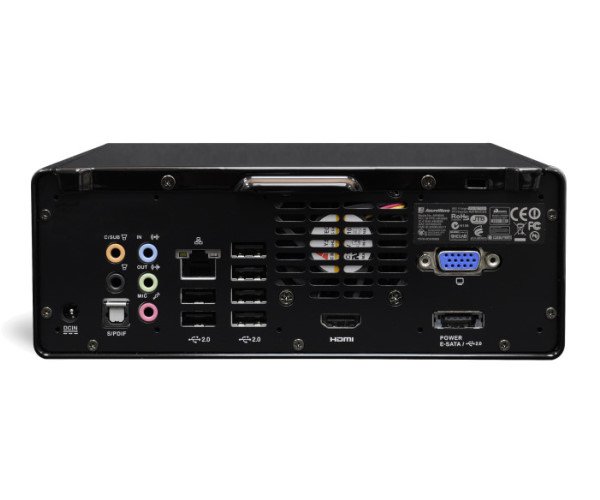

- 1 x HDMI, 1 x D-Sub VGA, 6 x USB 2.0, 1 x S/PDIF, 1 x Powered eSATA/USB*
*For Powered eSATA function, Hot Plug function is supported in RAID / AHCI mode only. IDE mode does not support Hot Plug function.
- Gigabit LAN
- 7.1 CH HD Audio with DTS
- Below 26dB
- MCE Remote Controller
- 65W/19V Adapter
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
