Riser Kit Free

Install graphics cards directly on the motherboard to avoid physical damage and ensure ultimate stability.

PCI-E STEEL SLOTS

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

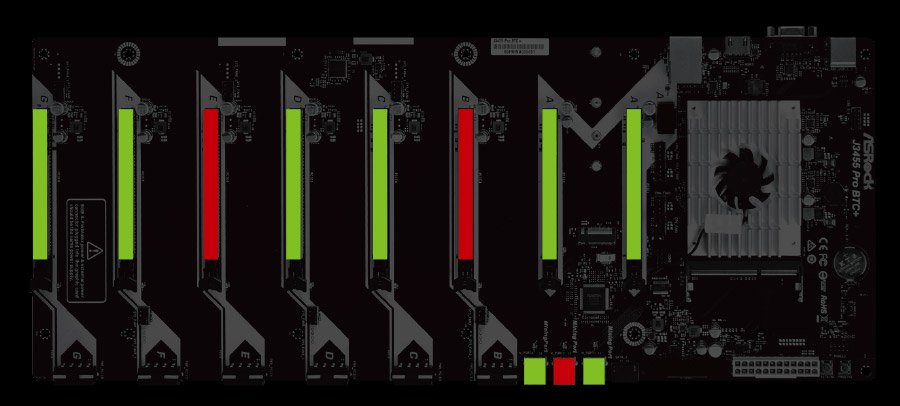

Smart PCIe State Detection

This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.

Graphics Card Debug LED

ASRock also placed a faulty graphics card debug LED behind every mining ports & PCIe slots so you may monitor the status even without a screen!

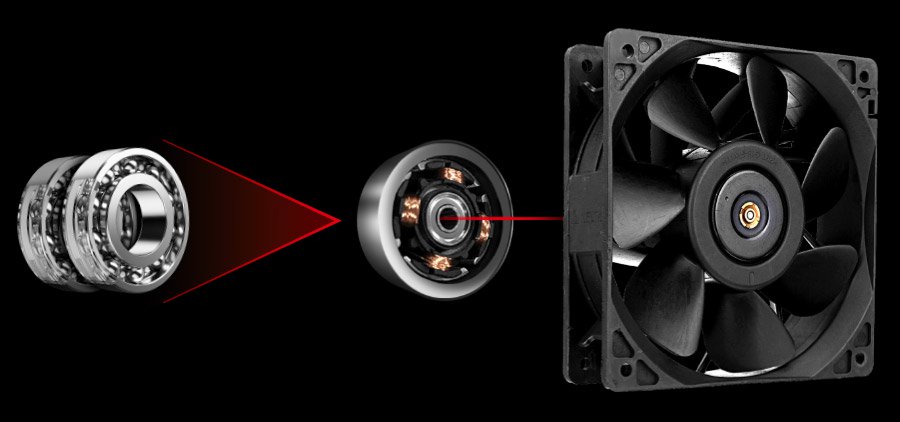

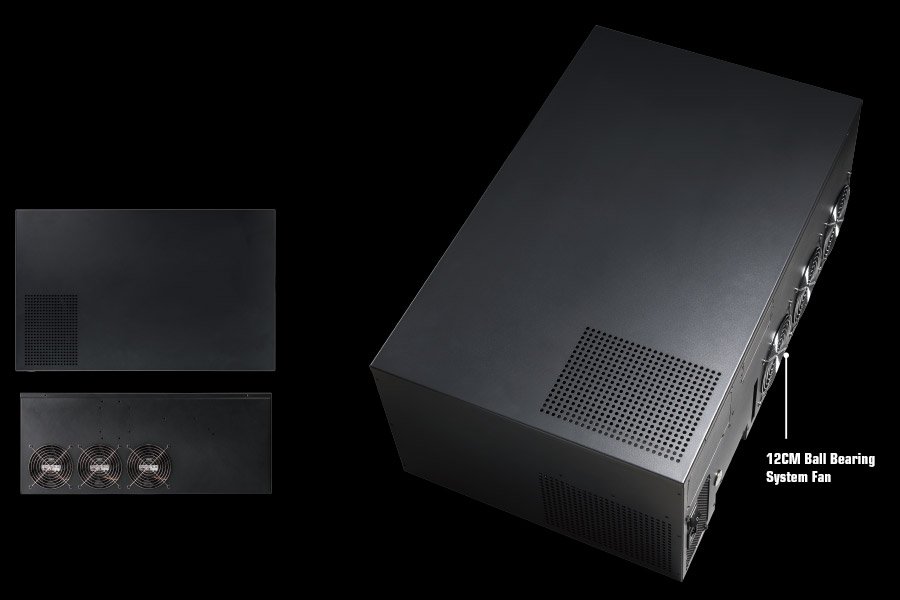

Server Grade Cooling Solution

ASRock mining systems equipped with 4200RPM high airflow system fan, it features dual ball bearing to give a super long life span for 24/7 none stop operation, it is able to quickly draw air in and out of the chassis, providing the best cooling efficiency.

Item
X370 Superb Mining Vega 56
X370 Superb Mining 588
X370 Superb Mining 578
X370 Superb Mining 574
Graphic Card
ASRock Radeon RX VEGA 56 8G*8
ASRock Radeon RX580 8GB*8
ASRock Radeon RX570 8GB*8
SRock Radeon RX570 4GB*8
Motherboard
ASRock X370 Pro BTC+
ASRock X370 Pro BTC+
ASRock X370 Pro BTC+
ASRock X370 Pro BTC+
CPU
AMD AM4 A6 bristol ridge APU
AMD AM4 A6 bristol ridge APU
AMD AM4 A6 bristol ridge APU
AMD AM4 A6 bristol ridge APU
Storage
256GB SSD
128GB SSD
128GB SSD
128GB SSD
OS
N/A
ethOS Mining OS
ethOS Mining OS
ethOS Mining OS
Memory
DDR4 2400MHz 4GB*1
DDR4 2400MHz 4GB*1
DDR4 2400MHz 4GB*1
DDR4 2400MHz 4GB*1
I/O
Cooling
High Flow Ball Bearing System Fan*6
High Flow Ball Bearing System Fan*4
High Flow Ball Bearing System Fan*4
High Flow Ball Bearing System Fan*4
Hash Rate (±5%)
15,600 H/s (xmr)
244 MH/s (eth)
236 MH/s (eth)
228 MH/s (eth)
INPUT VOLTAGE
190V-240V AC
190V-240V AC
190V-240V AC
190V-240V AC
POWER SUPPLY
1*2000W + 1*850W
1*2000W
1*2000W
1*2000W
Power
Consumption
1960 Watt
1600 Watt
1460 Watt
1370 Watt
Dimension
653*410*261mm (L*W*H)
653*410*169mm (L*W*H)
653*410*169mm (L*W*H)
653*410*169mm (L*W*H)
Launch date
August, 2018
november, 2018
november, 2018
november, 2018
※ ETH hash rate result were perform under ethOS 1.3.1.
※ XMR hash rate result were perform under Windows 10.
※ Hash rate results may vary between different GPU and memory configurations.
