X99 WS
  • Supports Intel® Core™ i7 and Xeon® E5-1600/2600 v3 Processor Family, up to 18 Cores and 160W
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 8*DDR4 3200+(OC) with max. capacity up to 128GB
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 5*PCIe 3.0 x16, 1*PCIe 2.0 x16
  • AMD 4-Way CrossFireX, NVIDIA 4-Way SLI
  • 10*SATA3, 1*eSATA, 1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6*USB 3.0 (2 Front, 4 Rear), 8*USB 2.0 (4 Front, 4 Rear)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Dual Gigabit LAN with Teaming Function
  • EATX

X99 Extreme6
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 8*DDR4 3000+(OC) with max. capacity up to 128GB
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 3 *PCIe 3.0 x16, 2 *PCIe 2.0 x1, 1*mini-PCIe
  • AMD 3-Way CrossFireX, NVIDIA 3-Way SLI
  • 10*SATA3, 1*eSATA, 1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 10*USB 3.0 (4 Front, 6 Rear), 7*USB 2.0 (4 Front, 2 Rear, 1 Vertical Type A)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN + Qualcomm Gigabit LAN
  • ATX

X99 Extreme4
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 8*DDR4 3000+(OC) with max. capacity up to 128GB
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 3*PCIe 3.0 x16, 1*PCIe 2.0 x16, 1*PCIe 2.0 x1
  • AMD 3-Way CrossFireX, NVIDIA 3-Way SLI
  • 10*SATA3, 1*eSATA, 1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6*USB 3.0 (2 Front, 4 Rear), 8*USB 2.0 (4 Front, 4 Rear)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN
  • ATX

X99 Extreme3
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 4*DDR4 3000+(OC)
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 2*PCIe 3.0 x16, 1*PCIe 2.0 x16, 1*PCIe 2.0 x1
  • AMD 3-Way CrossFireX, NVIDIA Quad SLI
  • 10*SATA3, 1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6*USB 3.0 (2 Front, 4 Rear), 8*USB 2.0 (4 Front, 4 Rear)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN
  • ATX

X99M Extreme4
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 4*DDR4 3000+(OC)
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 2*PCIe 3.0 x16, 1*PCIe 2.0 x16
  • AMD Quad CrossFireX, NVIDIA Quad SLI
  • 10*SATA3, 1*eSATA, 1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6*USB 3.0 (2 Front, 4 Rear), 8*USB 2.0 (4 Front, 4 Rear)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN + Qualcomm Atheros Gigabit LAN
  • Micro ATX

X99 Professional
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 12 Phase CPU Power design (Supports up to 1300w)
  • 8*DDR4 3200+(OC)
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 5*PCIe 3.0 x16, 1*Half mini-PCIe Express
  • AMD 4-Way CrossFireX, NVIDIA 4-Way SLI
  • 10*SATA3, 1* eSATA,1*Ultra M.2 (PCIe Gen3 x4 & SATA3), 1*M.2 (PCIe Gen2 x4 & SATA3)
  • 11* USB 3.0 (4 Front, 6 Rear, 1 Vertical Type A), 6* USB 2.0 (4 Front, 1 Rear, 1 Fatal1ty Mouse Port)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN+ Qualcomm Atheros Killer LAN
  • EATX

X99X Killer
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 8*DDR4 3000+(OC) with max. capacity up to 128GB
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 3*PCIe 3.0 x16, 2*PCIe 2.0 x1, 1* mini-PCI Express Slot
  • AMD 3-Way CrossFireX, NVIDIA 3-Way SLI
  • 10*SATA3, 1* eSATA,1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 10* USB 3.0 (4 Front, 6 Rear), 7* USB 2.0 (4 Front, 1 Rear, 1 Fatal1ty Mouse Port, 1 Vertical Type A)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN+ Qualcomm Atheros Killer LAN
  • ATX

X99M Killer
  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • Intel X99 Chipset
  • 4*DDR4 3000+(OC)
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 2*PCIe 3.0 x16, 1*PCIe 2.0 x16
  • AMD Quad CrossFireX, NVIDIA Quad SLI
  • 10*SATA3, 1*eSATA, 1*Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6*USB 3.0 (4 Front, 2 Rear), 8*USB 2.0 (4 Front, 3 Rear, 1 Fatal1ty Mouse Port)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN + Qualcomm Atheros Killer LAN
  • Micro ATX

X99 OC Formula

  • Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family
  • Socket LGA 2011-3
  • 12 Phase CPU Power design (Supports up to 1300w)
  • Intel X99 Chipset
  • 8*DDR4 3400+(OC)
  • Supports DDR4 UDIMM ECC* / RDIMM Memory Modules
  • 5*PCIe 3.0 x16, 1*Half mini-PCIe Express
  • AMD 4-Way CrossFireX, NVIDIA 4-Way SLI
  • 10*SATA3, 1* eSATA,1*Ultra M.2 (PCIe Gen3 x4 & SATA3), 1*M.2 (PCIe Gen2 x4 & SATA3)
  • 11* USB 3.0 (4 Front, 6 Rear, 1 Vertical Type A), 6* USB 2.0 (4 Front, 1 Rear, 1 Fatal1ty Mouse Port)
  • 7.1 CH HD, Supports Purity Sound™ 2 & DTS Connect
  • Intel Gigabit LAN+ Qualcomm Gigabit LAN
  • Waterproof by Conformal Coating
  • OC Formula Power/Connector/Cooling/Monitor Kits
  • EATX

*ECC is supported with Intel® Xeon® processors.



Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket



12 Phase CPU Power Design, Supports 1300W

  Most of ASRock’s X99 motherboards adopt 12 power phase design for delivering smooth power with the lowest temperature! The flagship motherboards X99 OC Formula and X99 Professional is even more impressive. Two boards adopt 12 phase CPU power design with 24 Dual-N MOSFETs, which can reach up to an unearthly 1300W support!







Supports DDR4 UDIMM ECC* / RDIMM Memory Modules

  This motherboard is capable of supporting DDR4 UDIMM ECC* and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
*ECC is supported with Intel® Xeon® processors.



128GB Memory Support

  Designed to meet the maximum computing power system, this motherboard adopts Quad-Channel 8 DDR4 DIMM slots. Each slot supports 16GB memory module, thus delivering a maximum capacity up to 128GB.

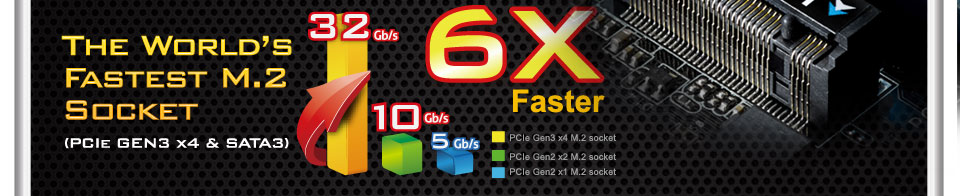

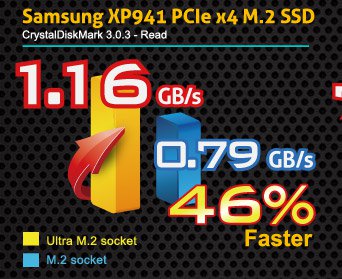

Ultra M.2

  The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s. In addition to support PCIe Gen3 x4 M.2 modules, the Ultra M.2 also supports SATA3 6Gb/s M.2 modules.

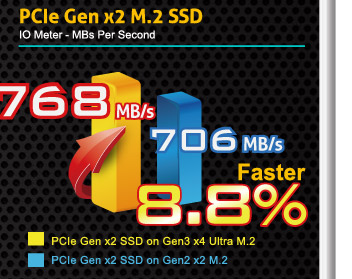

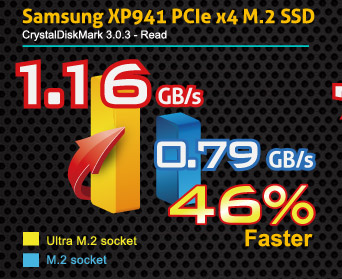

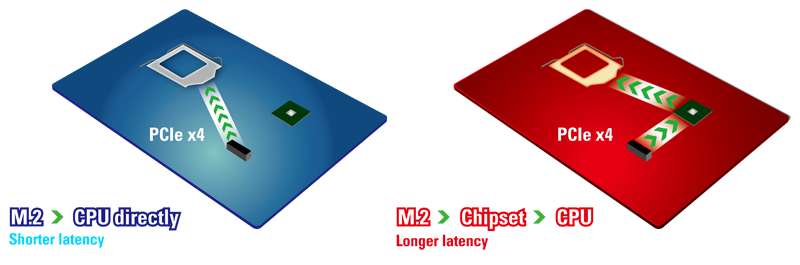

Compared to other M.2 design, Ultra M.2 design uses PCIe Gen3 x4 bandwidth from CPU directly which delivers lower latency and higher speed.

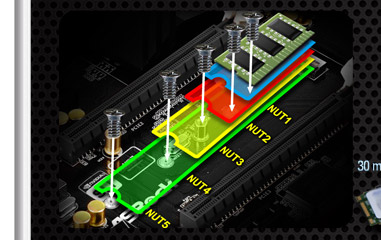

Support 5 types of M.2 devices: 30 mm, 42 mm, 60 mm, 80 mm, and 110 mm

XXL Aluminum Alloy Heatsink Design

The extra large aluminum alloy heatsinks provide super fast heat dissipation. All MOSFETs and chipset areas are well covered by these heatsinks to protect them from overheating. The CPU and chipset can therefore perform with lower temperature, and your motherboard and system will be more stable and reliable.


Premium Memory Alloy Choke

Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.



Ultra Dual-N MOSFET

Combining with two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.

NexFET™ MOSFET

The next generation NexFET™ MOSFETs provide higher efficiency with lower temperature and lower RDS(on) 2.9 mΩ. ASRock applied a special design on NexFET™ MOSFETs to offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.










    NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.


* Human Body Mode
  ASRock's New-Gen NexFET MOSFETs

  Others’ Traditional MOSFET

Nichicon 12K Platinum Caps

Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.

Durability
ASRock Motherboard With Nichicon 12K Platinum Caps
  12,000 hours*


Others' High-End MBs Caps
  10,000 hours


* Tested under industry standard 105 degree Celsius ambient temperature.

Premium 60A Power Choke

Compared to traditional chokes, ASRock's new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.

Saturation Current
Premium 60A Power Choke




Ferrite Choke



Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.



Server-Grade Power Design

  This motherboard is equipped with all switching power design, one set for transferring 3.3V voltage to 1.5V, the other one for 3.3V to 1.8V, delivering improved power efficiency compared to linear design. The ultra compact power design features server-grade high efficient power delivery with less energy consumption, thus offering better power efficiency to the system.
  Higher Efficiency Power Design




3.3V to 1.5V     3V to 1.8V

Traditional
Power Design
  ASRock's Switching
Power Design
Traditional
Power Design
  ASRock's Switching
Power Design


          Iload=0.1A
    Iload=0.25A     *E = Efficiency

















Ultra Thin Design to Fit 1U Chassis

  The back of motherboard is all mounted with ultra short screws and the length of CPU back plate is less than 3mm, allowing this board to fit in server-grade 1U chassis standard.
  Ultra Thin Design Normal Design



Server-Grade Intel Dual LAN

  Both of the Intel® Ethernet Controller I217LM and I210AT are low-power gigabit network controllers that can be used for server and workstation system configurations.



Supports NVIDIA® Quad SLI™, AMD 4-Way CrossFireX™

  This motherboard comes with more than enough PCIe slots that supports multi-GPU 4-Way SLI and 4-Way CrossFireX at x8/x8/x8/x8 mode.


Supports DDR4 ECC* / UDIMM, RDIMM Memory Modules

  This motherboard is capable of supporting DDR4 ECC*, UDIMM and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
*ECC is supported with Intel® Xeon® processors.



128GB Memory Support

  Designed to meet the maximum computing power system, this motherboard adopts Quad-Channel 8 DDR4 DIMM slots. Each slot supports 16GB memory module, thus delivering a maximum capacity up to 128GB.

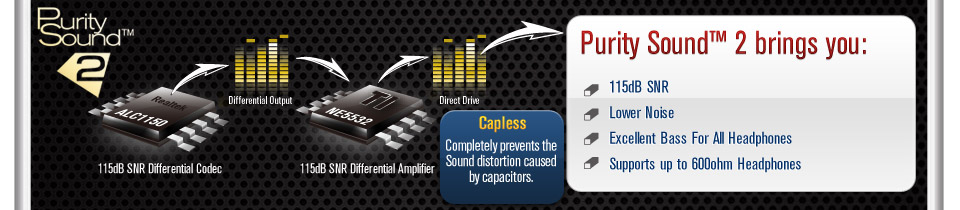

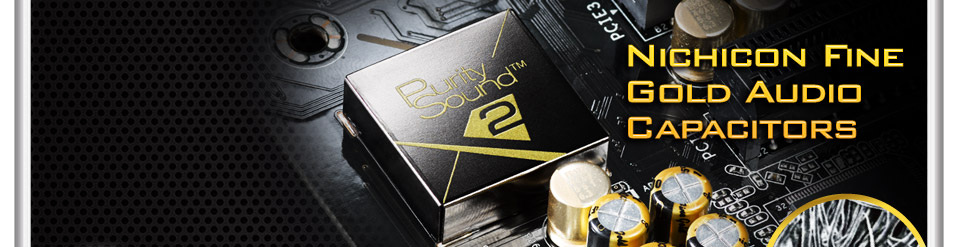

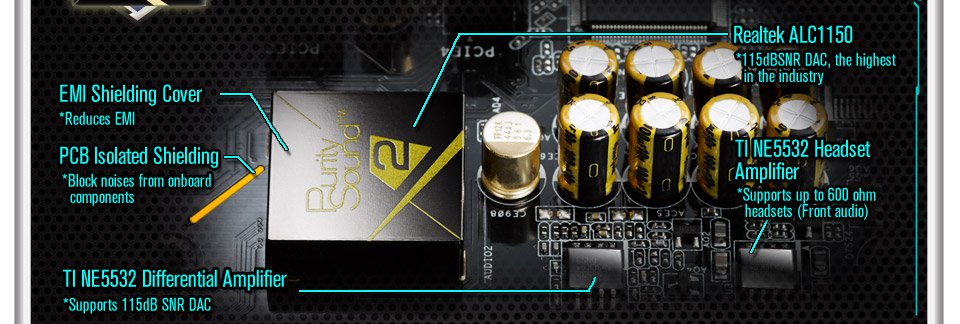

Purity Sound™ 2

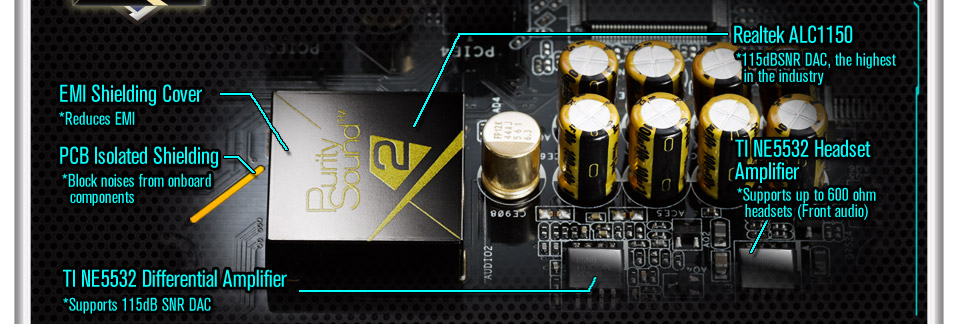

  Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding, and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.

這個頁面上的內容需要較新版本的 Adobe Flash Player。

取得 Adobe Flash Player

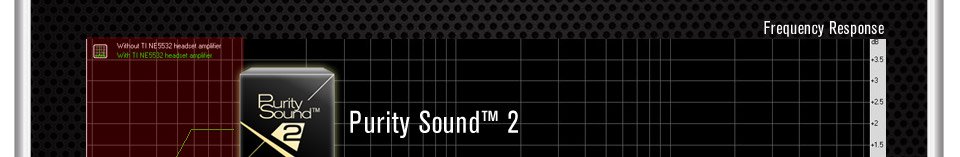

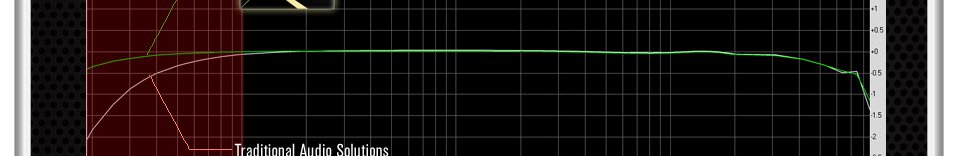

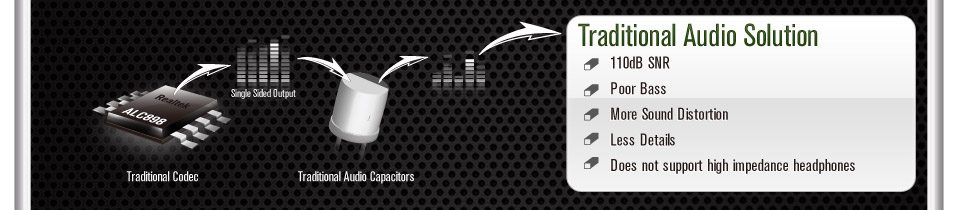

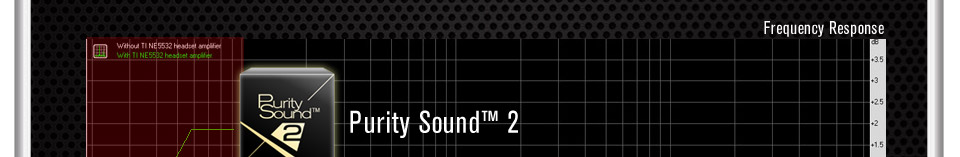

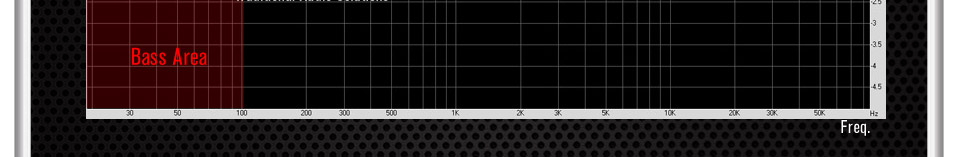

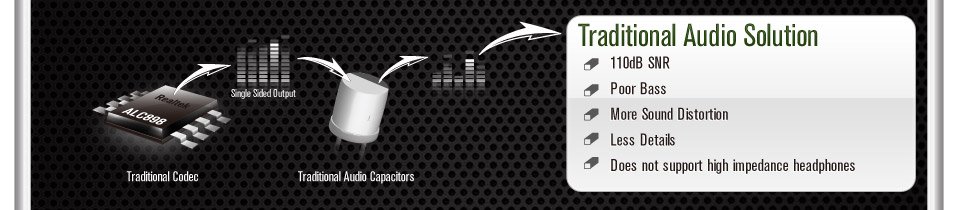

This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz bass low freq area, Purity Sound™ still maintains its frequency response (0.4dB) and provides better bass with the TI® NE5532 amplifier, improving the bass quality by 20% (1.6dB)!


ASRock Cloud – Orbweb.ME Professional


ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service which is $49.99 per year. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function is also available. Now, download Orbweb Me Host, enter ASRock Cloud promotion code "ASR2014B", ASRock's users are allowed to enjoy all services above.

這個頁面上的內容需要較新版本的 Adobe Flash Player。

取得 Adobe Flash Player

*OrbWeb ME is provided by Kloudian Systems Inc. Restriction may apply and the offer is subject to change, termination or discontinuation by Kloudian Systems Inc. without prior notice. OrbWeb ME IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS ORIMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL ASROCK BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHERIN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH OrbWeb ME OR THE USE OR OTHER DEALINGS IN OrbWeb ME. Please visit the website for further details: http://www.asrock.com/feature/cloud/index.html

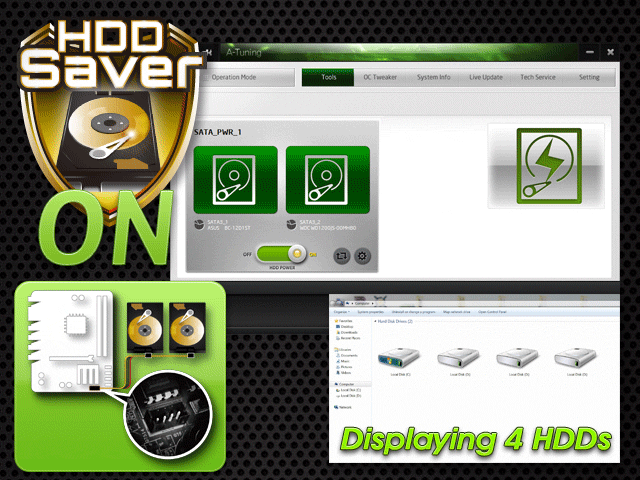

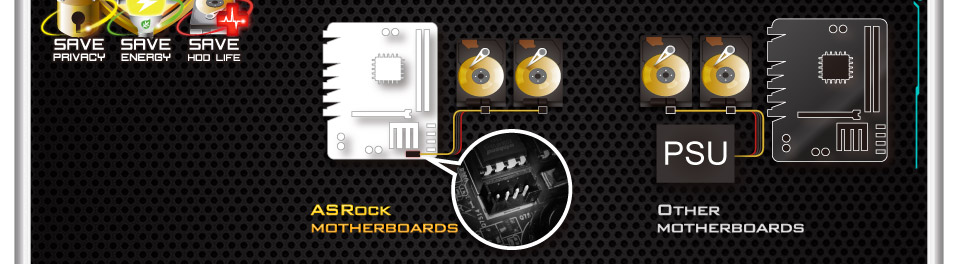

HDD Saver Technology


There is a dedicated 4-pin HDD Saver Connector placed near the SATA ports. By connecting it to the HDDs, you can switch on and off the HDDs via software when needed. HDD Saver Technology secures more privacy, saves more energy, and extends the HDDs' life spans.
2 HDDs connected to the motherboard can be switched on or off when needed. 2 HDDs connected to the power supply unit can be switched on or off along with the PC only.

Use the Hotkey [Ctrl + Alt + S] to run HDD Saver under OS.

Once you shut down your connected HDDs, they will disappear from your file explorer screen. Therefore other people won't even know these HDDs existed, nor can they access your private data stored on these HDDs. You can protect your privacy easily.
Shut down and hide up to 2 HDDs for privacy when needed Without HDD Saver Technology, all HDDs are visible all the time. Your privacy is NOT protected!

Many HDDs are used for storing data only, while ODD is not frequently used. However, these occupied HDDs/ODD still consume a lot of energy and increase the internal temperature of the chassis when idle. This eco-friendly design allows you to shut down those devices for saving more energy. You can turn them back on anytime you need them.
  Switch on or off the connected HDD/ODD whenever you want! Save more energy!
It is always annoying when your HDDs fail, not to mention the loss of your precious photos, videos, data, etc. By avoiding shutting your HDDs on and off frequently, you can protect them from any potential damage and prolong your HDDs' life.

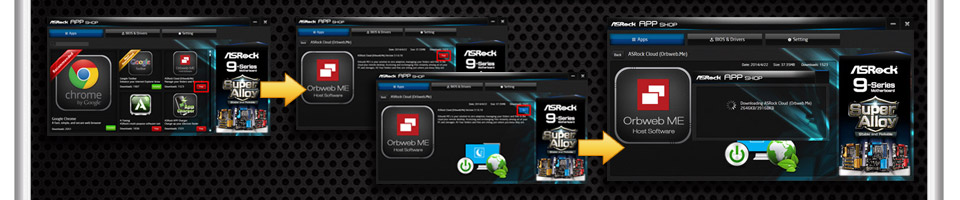

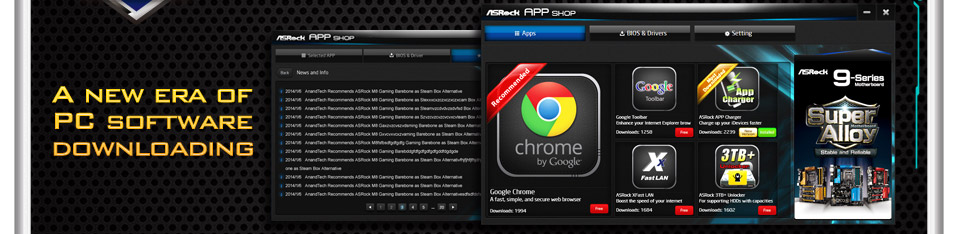

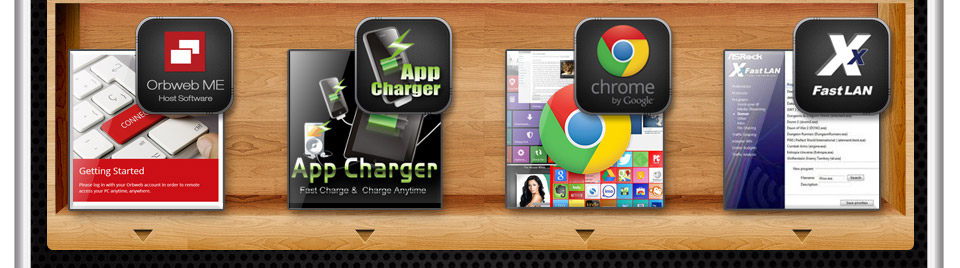

ASRock APP Shop

  We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
ASRock APP Shop is in the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.
Orbweb ME : App Charger : Google Chrome : XFast LAN :
Get Connected with ASRock Cloud Anytime, Anywhere Fast Charge & Charge Anytime Better Browsing with Google Options Your Smartest Internet Access Manager

Tips to Install Apps
Step 1: Step 2: Step 3:
Click   To Choose The App Move Your Mouse To & Click Download App Successfully
