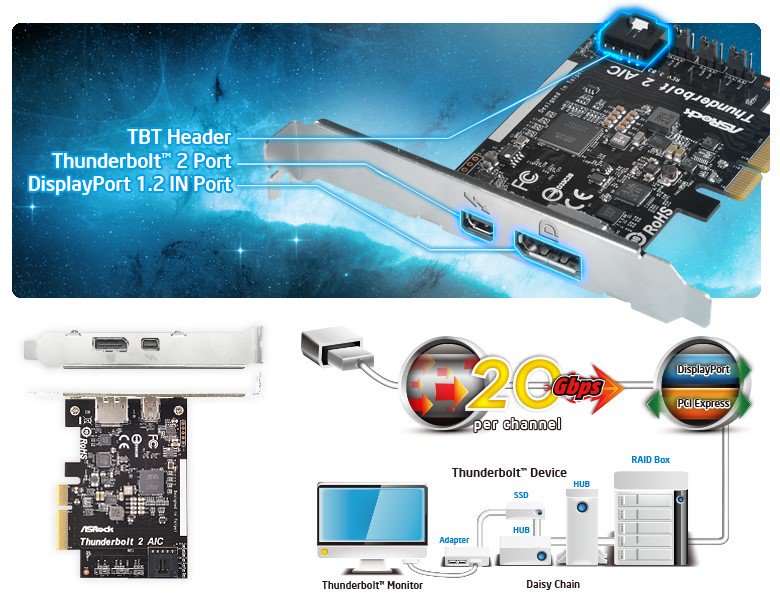

Thunderbolt™ 2 AIC
Easy access to the fastest Thunderbolt™ connection


Thunderbolt™ 2 Ready
The Thunderbolt™ 2 AIC may be connected to the 5-pin Thunderbolt™ AIC header on your motherboard for Thunderbolt™ 2 technology. The mini DisplayPort supports up to six daisy chained Thunderbolt™ devices with data transfer rates at 20Gbps.
ASRock Thunderbolt™ Technology Expert

● Up to 20 Gbps : The fastest connection to your PC
● Bi-directional data transfer with PCI Express and DisplayPort
● Daisy Chain : Up to 6 Thunderbolt™ devices
● Large, high-resolution displays (Supports 4K)

Connecting to onboard graphicsConnecting to a graphics card

* Product images for reference only.

Specifications

 General
Platform- Dimensions: 3.8-in x 4.7-in
Chipset- Intel® DSL5320 Thunderbolt™ 2 Controller
External Connectors- 1 x Thunderbolt™ 2 Port (with up to 20Gbps bandwidth)
* Supports daisy-chaining of up to six Thunderbolt™ devices
- 1 x DisplayPort 1.2 IN Port
- 1 x TBT Header
Interface- PCI Express 2.0 x4 interface
Graphics- Supports Thunderbolt™ interface with max. resolution of 4K x 2K (4096 x 2160) @ 24Hz / 4K x 2K (3840 x 2160) @ 60Hz
- DisplayPort 1.2 Multi-Stream Transport compliant; supports daisy-chaining of multiple DisplayPort 1.2 monitors
Data Rate- Supports 20Gbps bi-directional bandwidth per channel with Thunderbolt™ 2 port
OS- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Accessories- Quick Installation Guide, Support CD
- 1 x TBT Header Cable
- 1 x DisplayPort Cable

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
