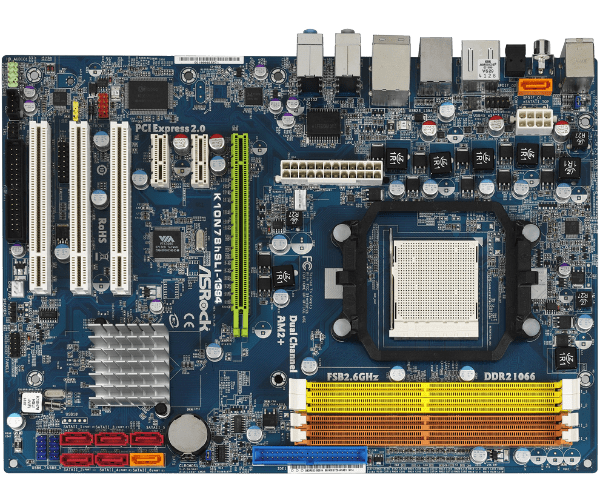

K10N78hSLI-1394
  • Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  • All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)
  • Supports Hyper-Transport 3.0 (HT 3.0) Technology
  • NVIDIA® GeForce 8200 Chipset
  • FSB 2600 MHz (5.2 GT/s)
  • Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
  • Supports NVIDIA® Hybrid SLI™ GeForce Boost feature
  • 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions
  • 1 x eSATA2 3.0 Gb/s connector
  • Supports Gigabit LAN 10/100/1000 Mb/s
  • Supports 2 x IEEE 1394 ports (one port on back panel, one header on board)
  • 1 x WiFi/E header
  • Supports ASRock OC Tuner, Intelligent Energy Saver
  • 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
  • Windows® Vista™ Premium 2008 Logo Ready
  • ASRock 1394_SPDIF I/O: 1 x IEEE 1394 Port, 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
