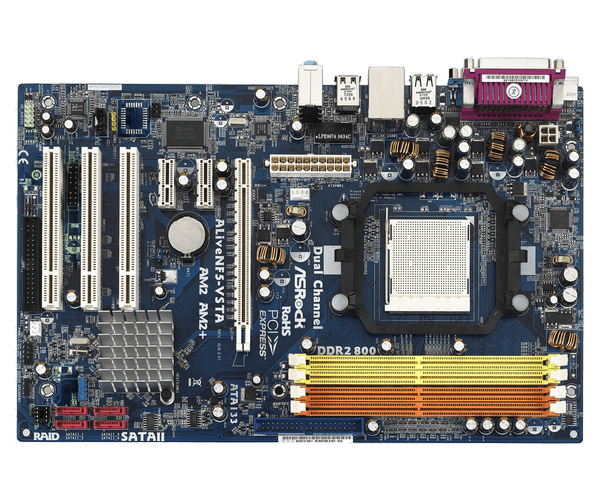

ALiveNF5-VSTA R2.0
  • Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  • NVIDIA® nForce 520 Chipset
  • AMD LIVE!™ Ready
  • Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
  • ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
  • 1 x PCI Express x16 slot
  • 4 x SATA2 3.0 Gb/s, support RAID (RAID 0, RAID1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug functions
  • 1 x WiFi/E header
  • HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.
  • Windows® Vista™ Premium 2008 Logo Ready
  • Supports Windows® XP Media Center Edition
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
