Home Cloud - Remote Desktop Anytime, Anywhere
This motherboard supports remote wake with the onboard Intel®
LAN, so you can connect with your PC from anywhere in the world. You will be able to wake up your PC or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
Imagine yourself as a desperado riding into the sunset, an outcast of the society exiled from your country, or simply at the groceries two blocks away from home. You miss your personal computer so much and you'll need Home Cloud for the following real world scenarios:
Keep your stored mail near at hand whenever you need it.
Stream your secret stash of vids, music and pics.
Watch your favorite local TV programs by connecting to your PC.
Access or send files remotely anywhere.
Keep an eye on your pets or children when you are away from home.
Remote Wake is supported on Win8 or Win8 64bit OS.
Waterproof by Conformal Coating - Nullifies Water Damage!
Conductive liquids such as water pretty much destroy all kinds of electronics on contact. That’s why ASRock has implemented a special layer of Conformal Coating on our motherboards, which makes the motherboards invulnerable to conductive liquids, corrosion and dust. Users won’t have to worry about spilling liquid nitrogen, liquid helium or even clam chowder over their motherboards while overclocking.
Note: Conformal Coating may protect the motherboard against conductive liquids, but only to a certain extent. To avoid damaging your computer and other components, we still advise users to keep liquids a safe distance away.
5 Year Warranty
ASRock’s OC Formula Series motherboards with Conformal Coating guarantees 5 year warranty for any malfunctions that occur under normal use conditions during the warranty period.
*The details of this 5 year warranty service may vary by different regions. (RMA detail conditions
HDMI-In - The Smart Way to Connect Your Devices
Tired of constantly switching devices to connect to your one and only monitor? From now on just connect the monitor to your motherboard, and connect your secondary device (such as a PS3 or Xbox) to the motherboard’s HDMI-In port. With HDMI-In users may conveniently toggle between the computer’s screen and the secondary device’s screen with a hotkey, or even use their secondary device without powering on the computer.
Purity Sound™ - Bask in the Music
Purity Sound is a combination of several hardware, software audio solutions and technologies that will satisfy even the pickiest audiophiles. Including 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI®
5532 Premium Headset Amplifier which supports up to 600 ohm headphones, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and support for DTS Connect.
Purity Sound™ brings you:
♦ 115dB SNR
♦ Excellent Bass
♦ Less Sound Distortion
♦ More Details
♦ Supports up to 600ohm headphones
Traditional Audio Solution:
♦ 110dB SNR
♦ Poor Bass
♦ More Sound Distortion
♦ Less Details
♦ Does not support high impedance headphones
This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution’s frequency response drops drastically at low frequencies. Compared to traditional audio solution’s (2.0dB) at 20 Hz bass low freq area, Purity Sound™ still maintains its frequency response (0.4dB) and provides better bass with the TI®
NE5532 amplifier, improving the bass quality by 20% (1.6dB)!
High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
12 Power Phase Design
Designed with a 12 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium Alloy Chokes (PAC)
Compared to other motherboards that adopt iron powder chokes, Premium Alloy Chokes highlight a special alloy formula which is able to reduce up to 70% core loss. Moreover, the revolutionary choke construction features a highly magnetic and heat resistant design increasing the whole motherboard's lifespan.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is an innovative new design of MOSFETs. The silicon die area is increased by stacking two dies into a MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM can provide larger die area and lower Rds(on), so the power supply for CPU Vcore is more efficient.
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Multiple Filter Cap (MFC)

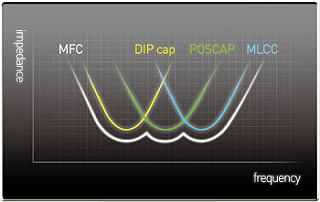

By combining the power and advantages of three different kinds of capacitors, including the DIP cap, POSCAP and MLCC, Multiple Filter Caps allow hardcore overclockers and enthusiasts to overclock their motherboards to extreme levels without having to worry about the other hardware components.
ASRock strives for perfection and cares about even the most unnoticeable details when it comes to making motherboards better! This exclusive new pin design for the motherboard's memory slots called Distortion-Free Slots effectively reduce distortion and improve performance.
Traditional pin design
New Distortion-Free Slot
* Shorter pin design
* Reduces signal distortion
Hi-Density Power Connector
By replacing the motherboard's ordinary CPU power connectors with the brand new Hi-Density Power Connectors, it can reduce up to 23% power loss and decrease the power connector's temperature by 22℃. Need that extra computing power? Get more performance, and stay cool my friend!
15μ Gold Finger
Compared to other motherboards that come with only 3-4μ gold, this motherboard contains a total of 15μ gold within the CPU socket, DRAM slots and PCI Express x16 slots, thus it is able to deliver up to three times better performance than usual, granting users a rich computing experience literally!
ASRock's exclusive Twin-Power Cooling is a hybrid cooling solution that combines active air cooling with water cooling, together creating the ultimate heat pipe cooling design that maximizes the system's convection to expel hot air, provide better air flow and faster heat dissipation, so that overclockers may have more fun while overclocking!
GELID Solutions GC-Extreme Thermal Compound
When it comes to overclocking, all overachieving overclockers will agree that keeping cool is crucial for pushing limits. That's why ASRock wants overclockers to use professional cooling compounds, GELID Solutions GC-Extreme Thermal Compound is an added bonus that allows overclockers to stabilize the CPU's temperature.
8 Layer PCB
Not only does this motherboard adopt components and materials with the best quality, it is also built on a high quality 8 Layer PCB that comes with four sets of two ounce copper inner layers, using only the best carefully selected copper materials for its PCB layers, it delivers lower temperature and higher energy efficiency for gamers and overclockers.
Status OLED shows various information of the system on a new high resolution OLED screen. Now you can use three buttons to toggle between information of the power on self test, debug codes, the current time, temperatures, frequencies and voltages of various points on the motherboard.
Multi Thermal Sensor
Need to monitor your motherboard's temperature constantly? Multi Thermal Sensor provides overclockers the temperature of various parts of the motherboard graphically, so that users may precisely keep track and control the temperature of each part of their motherboard while they are overclocking.
Nick Shih’s OC Profile
No matter whether you are still a newbie with absolutely zero experience or a veteran who is already pretty skillful in overclocking, the legendary overclocker Nick Shih has added a few presets for different levels of overclocking called Nick Shih’s OC Profile. Now is your chance to learn a few tricks from the champion.
Some people might complain that the BIOS configuration on old computers aren't user friendly enough. Well, not any more! ASRock Interactive UEFI is a blend of system configuration tools with cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and brings a lot more amusement.
ASRock Formula Drive is an all-in-one software for fine tuning different features in an user friendly interface. Specifically designed for perfectionist that wish to fine tune every tiny little aspect of their personal computer.
FAN-Tastic Tuning offers the flexibility to adjust the fan speed (RPM) relative to certain system temperatures. Users may set up to 5 CPU temperatures and assign a respective fan speed for each temperature by clicking the "+/-" and confirm by clicking "APPLY" afterwards.
The onboard Rapid OC buttons allow overclocking enthusiasts to manually raise or lower the system's CPU ratio, BCLK frequency or CPU Vcore voltage. Fast and simple, just use the buttons to find your CPU’s best margin.
Rules are made for breaking! Use the onboard switch to activate LN2 Mode to disable the CPU’s thermal protection. Explore beyond the limits and keep your fingers crossed.
Patience is a virtue, and it may also prove itself useful while overclocking. Use the onboard switch to toggle Slow Mode for forcing your CPU to run at its lowest frequency.
For those who constantly need to remove or reinstall their PCIe cards, but fear of damaging the motherboard and its precious components, use the PCIe ON/OFF switches on the motherboard to enable or disable the PCIe slots with a flick of your finger.
Fine-Tuning V-Controller is a massive collection of voltage fine tuning options in the ASRock UEFI Setup Utility. It provides more than enough voltage configuration options for professional overclockers who wish to pursuit extremes.
V-Probe™ is the code name of the set of detection points laid across the whole motherboard. It allows serious overclockers to get the most accurate voltage readings of different points of the motherboard via a multitester.
Timing Configurator is an independent application that runs under Windows®
OS, it allows users to monitor an abundant collection of subtle DRAM timing values immediately and easily.
ASRock’s unique XFast 555 is actually a bundle of three different technologies, including XFast RAM, XFast LAN and XFast USB. XFast 555 allows users to experience up to five times performance boost in terms of system performance, LAN speed and USB transfer speed.
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
