Z690 Extreme

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

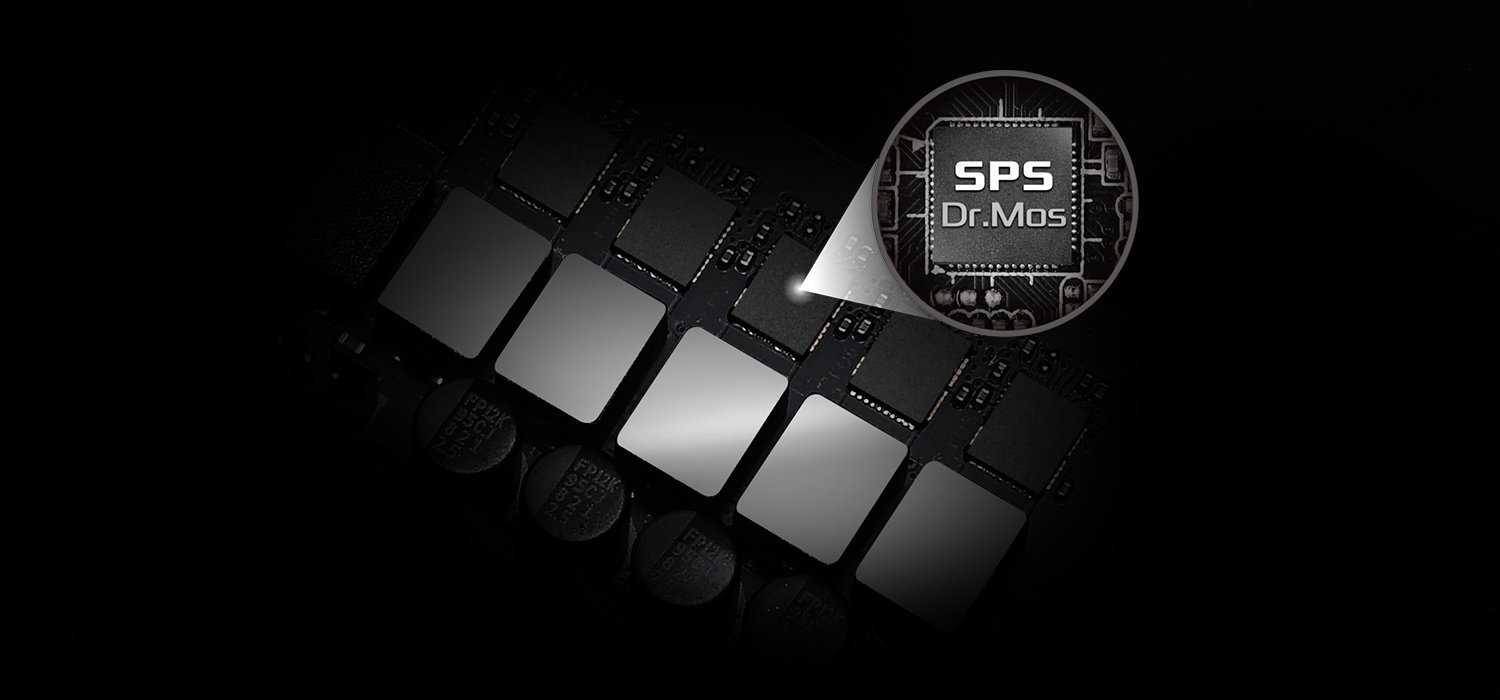

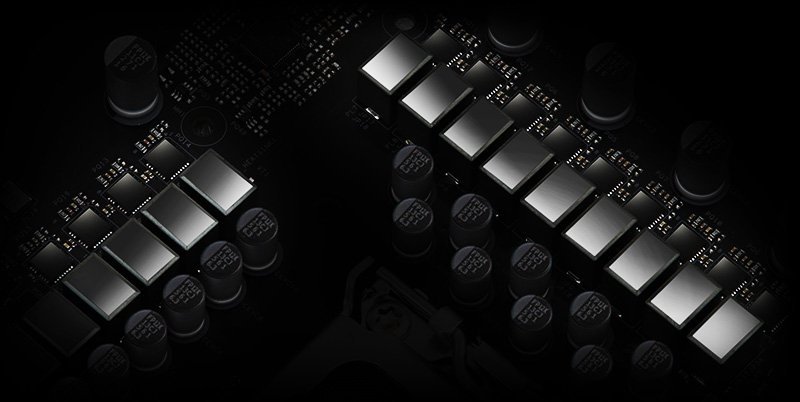

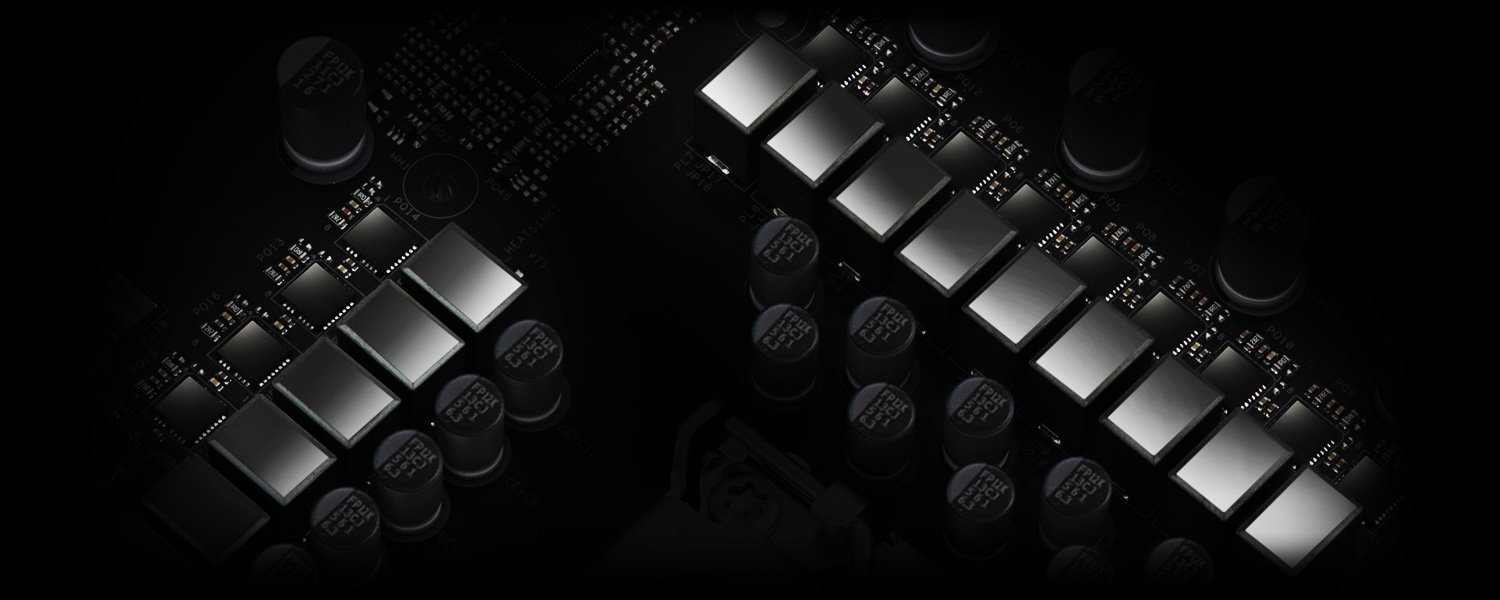

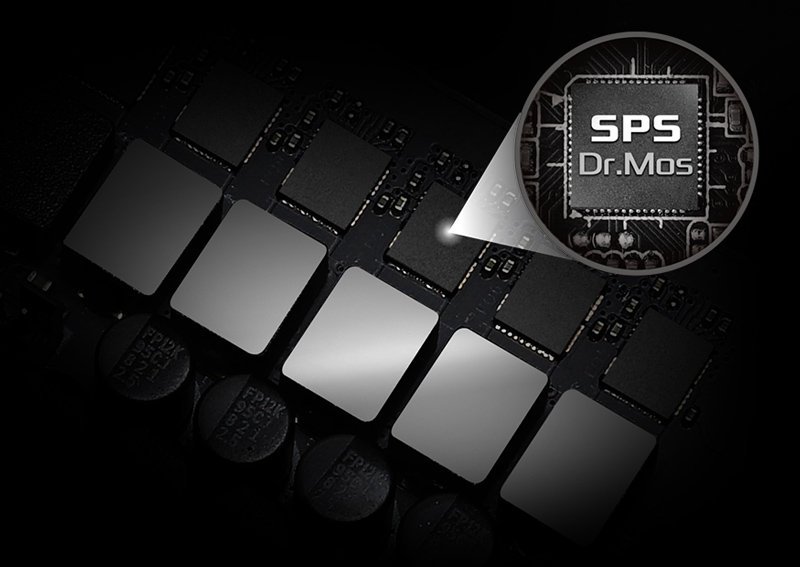

  • 13 Phase SPS Dr.MOS Power Design
  • 4 x DDR4 DIMMs
    Supports Dual Channel, up to 5333+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 8 SATA3
  • 2 Hyper M.2 (PCIe Gen4 x4)
    1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 1 USB 3.2 Gen2x2 Front Type-C
    2 USB 3.2 Gen2 (Rear Type A+C)
    8 USB 3.2 Gen1 (4 Rear, 4 Front)
  • Dragon 2.5G LAN, Intel® Gigabit LAN
  • ASRock Graphics Card Holder
