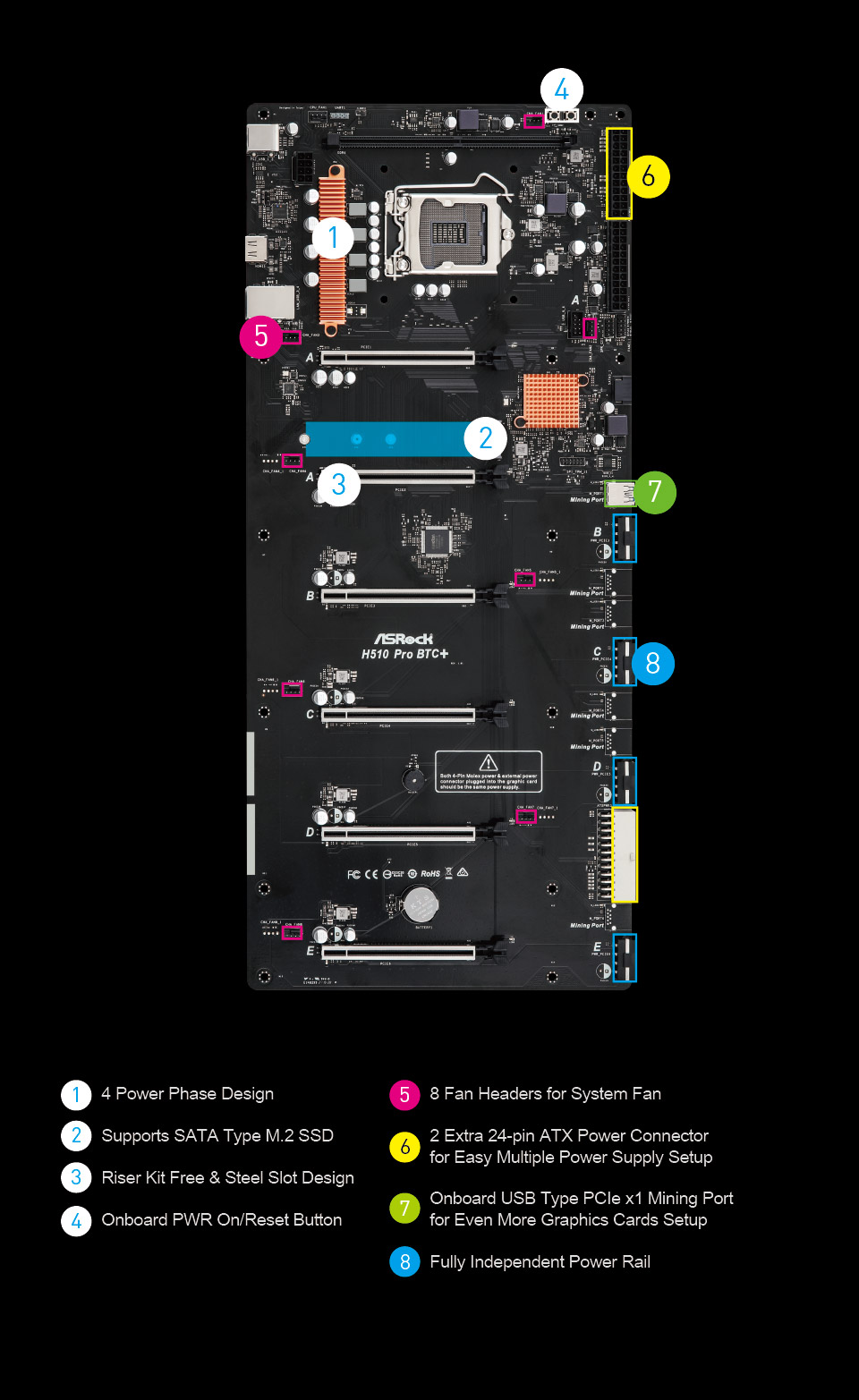

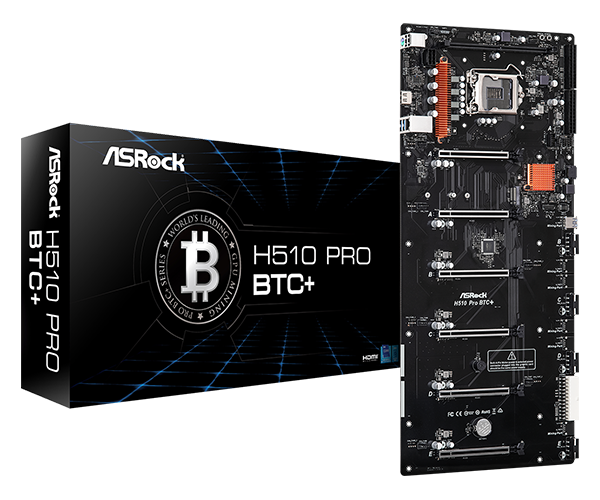

H510 Pro BTC+

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • Supports DDR4 3200MHz
  • Graphics Output: HDMI

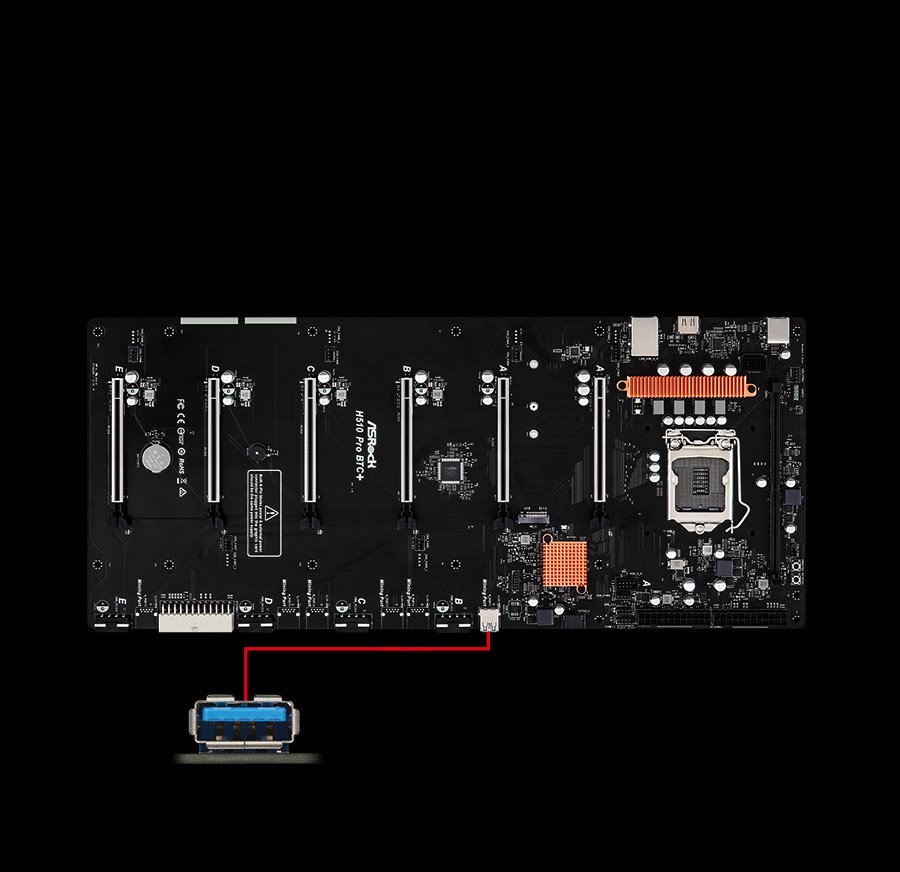

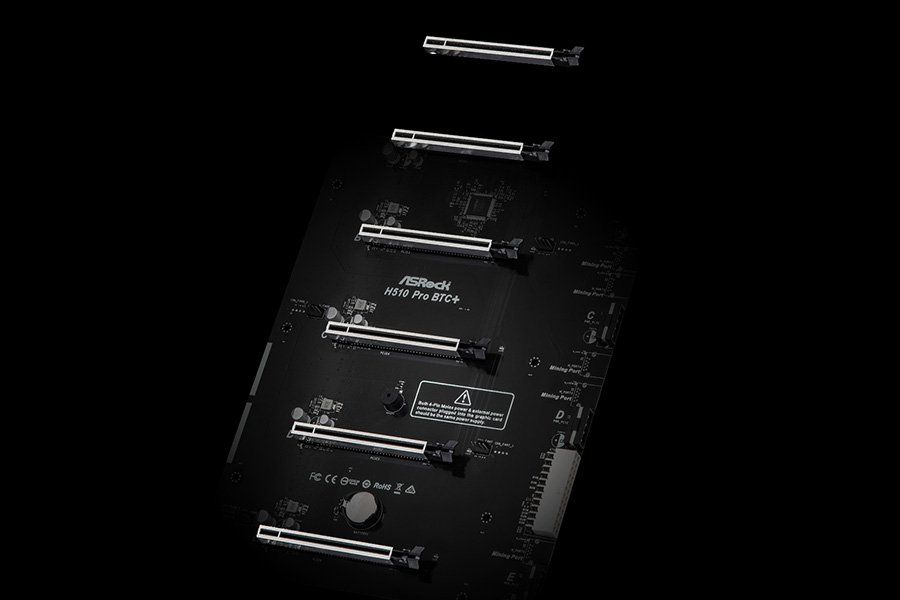

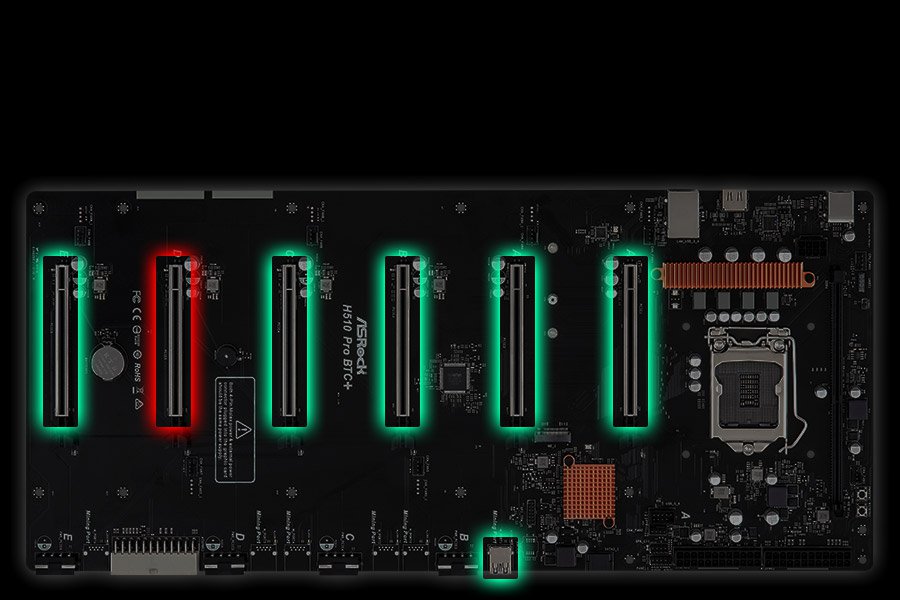

  • 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)

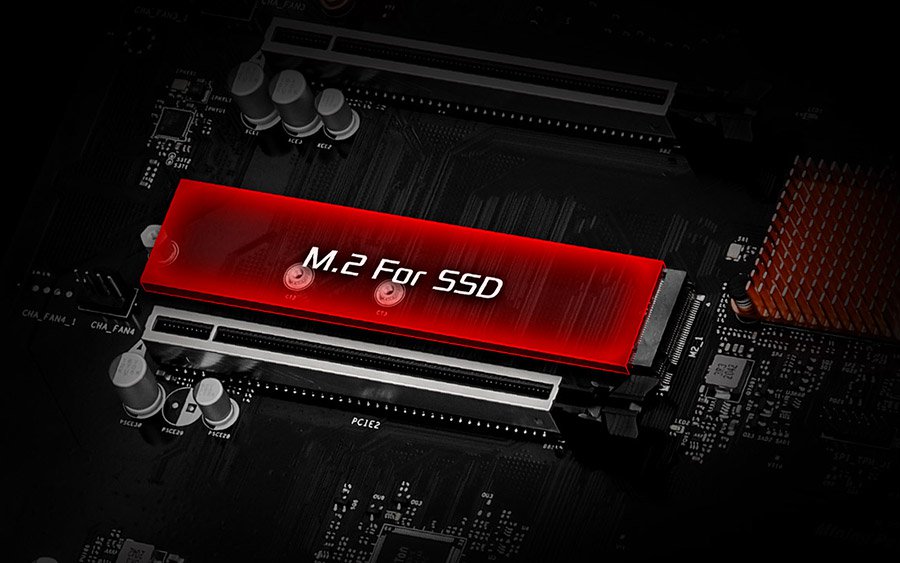

  • 1 SATA3, 1 M.2 (SATA3)
  • 2 Rear USB 3.1 Gen1 Type-A
  • 4 USB 2.0 Type-A (2 Rear, 2 Front)
  • Intel® Gigabit LAN
  • 2 Extra 24-pin ATX Power Connector
  • Onboard Power On / Reset Button
  • Fully Independent Power Rail
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
