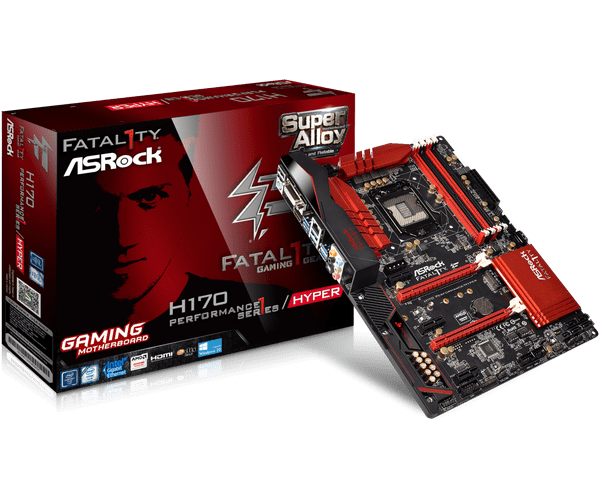

Fatal1ty H170 Performance/Hyper

  1. ASRock Super Alloy
  2. Gaming Armor - Memory / VGA Card / Cooling / Internet / Audio
  3. Supports 6th Generation Intel® Core™ Processors (Socket 1151)
  4. Digi Power, 10 Power Phase Design
  5. Supports Dual Channel DDR4 2133, DDR4 Non-Z OC
  6. 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
  7. AMD Quad CrossFireX™
  8. Graphics Output Options: DVI-D, HDMI
  9. 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
  10. 1 SATA Express, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  11. 8 USB 3.0 (5 Type-A + 1 Type-C, 2 Front)
  12. Supports Full Spike Protection, ASRock Live Update & APP Shop, F-Stream, Key Master, XSplit
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Features


XXL Aluminum Alloy Heatsink Design
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
* Tested under industry standard 105 degree Celsius ambient temperature.

I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end 100 Series motherboards.
Matte Black PCB
Old PCB

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
High Density Glass Fabric PCB
Traditonal Glass Fabric PCB
DDR4 Non-Z OC
Overclocking DDR4 memory modules is no longer limited to Z170 models. With ASRock’s DDR4 Non-Z OC users may overclock the memory of H170/Q170/B150/H110/C232 models using certain memory sticks, such as Kingston or Samsung memory DIMMs. The enhanced CAS latency brings up to 5% performance boost.
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Fatal1ty Mouse Port
After plugging the USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can use Fatal1ty’s personal preferred mouse polling rate at 500 Hz. F-Stream also provides the flexibility for gamers to adjust the mouse polling rate from 125 Hz to 1000 Hz. This is helpful for professional gamers to experience smoother game play and faster response time.
*Limitations:
1. Fatal1ty mouse port supports USB 1.1 mice.
2. Some mice might not support polling rates up to 1000Hz.
3. Some wireless USB mice might not be supported by Fatal1ty mouse port.
4. Fatal1ty mouse port does not support USB mice connected to a USB hub.
Key Master
Key Master consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.
Sniper Key - Use Sniper Key to shift the mouse speed when you're in sniper mode, it will greatly sharpen your accuracy.
Mouse Track
Without Sniper Key         With Sniper Key
Macro Key - Tired of those repetitive keystrokes? Create your own set of keyboard hotkeys and macros with Macro Key to save the trouble.
USB Type-C On the Rear I/O
This motherboard comes with a Type-C USB 3.0 port built on the rear i/o for delivering up to 5 Gbps data transfer rates and to support future USB Type-C devices.
10 Power Phase Design
The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.
Purity Sound™ 3
7.1 CH HD audio with Realtek ALC1150 audio codec, Pure Power-In and other technologies to deliver the crispest sound effects.
- Supports Purity Sound™ 3
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with Differential Amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- DTS connect
UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
PCIe Power
Providing more juice & stability for VGA cards.
Slots
Memory
15μ Gold Contact in DIMM Slots
VGA Card
15μ Gold Contact in VGA PCIe Slot(PCIE2)
Internet
Intel® LAN
Cooling
XXL Aluminum Alloy Heatsink Heat Pipe Design
Audio
Purity Sound™ 3
Hyper BCLK Engine
An additional external base clock generator which provides a wider range of frequencies and better performance
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Supports DDR4 2133
Supports the latest DDR4 memory modules and most extreme memory performance!
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Flexible PCIe Slots
A new flexible PCIe Gen3 x1 slot design that allows users to install add-on cards of all kinds of sizes.
* The bandwidth of your devices will be limited to PCIe Gen3 x1.
Old
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.
XSplit
XSplit Broadcaster is a desktop application designed to make your multimedia broadcasting, live-streaming and recording a lot easier and more fun. XSplit Gamecaster is a simplified version of XSplit Broadcaster. We’re giving XSplit Broadcaster & XSplit Gamecaster 3-month premium license bundle for FREE! A US$ 24.95 value!
* XSplit is provided by SplitmediaLabs, Ltd. Restriction may apply and the offer is subject to change, termination or discontinuation by SplitmediaLabs, Ltd. without prior notice. Please visit the website for further details : http://www.asrock.com/microsite/Fatal1ty/
Win 7 USB Patcher
Due to chipset limitation, when you want to install Windows® 7 on this MB, you may need to use “Win 7 USB Patcher” to create a new ISO file, or check this page for more details on how to install Windows® 7 OS.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

Restart to UEFI

Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

ASRock OMG (Online Management Guard)

Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

UEFI Tech Service

Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

Easy Driver Installer

For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.

DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
