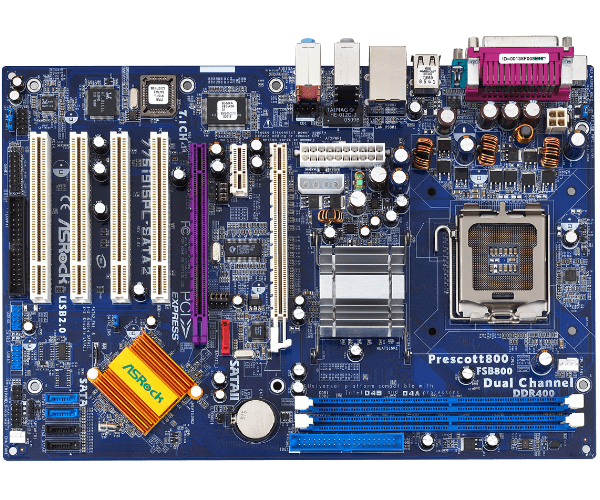

775i915PL-SATA2

  1. LGA 775 for Intel® P4 processor
  2. Intel® 915PL chipset
  3. Supports FSB800MHz processor, EM64T ready
  4. Supports Dual Channel DDR400 memory
  5. Hybrid Booster - ASRock Safe Overclocking Technology
  6. Supports ATi CrossFireTM
  7. PCI Express x16 slot
  8. AGI Express slot (Default setting as PCI Express x1 and can be adjusted to PCI Express x 4 as well)
  9. PCI Express x1 slot for other hi-speed peripheral cards
  10. Surround Display: Up to 4 monitors display capability
  11. PCI Express SATA2 controller on board, making the best use of advanced SATA2 HDD.
  12. 4 ports of SATA 1.5Gb/s, and 1 port of IDE
  13. 7.1 channel Audio, 10/100 Ethernet LAN
  14. ASRock 8CH I/O: 8 channel audio jack and 4 ready-to-use USB 2.0 ports
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Product Specifications

 General
CPU- LGA 775 for Intel® Pentium® 4 / Celeron® D processor
- FSB 800/533 MHz
- Supports Hyper-Threading Technology
- Support EM64T CPU
Chipset- Northbridge: Intel® 915PL
- Southbridge: Intel® ICH6
Memory- Dual Channel DDR memory technology
- Supports DDR400/333 non-ECC, un-buffered memory
- DIMM slots: 2
- Max. capacity of system memory: 2GB
BIOS- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
 Audio, Video and Networking
Graphics- n/a
Audio- Realtek ALC850 8 channel AC'97 audio codec
LAN- Realtek RTL8101L 10/100 Fast Ethernet controller
- 802.3u, WOL supported
- Supports PXE
 Expansion / Connectivity
Slots- Supports ATI™ CrossFire™
- PCI Express x16 slot
- AGI Express slot (Default setting as PCI Express x 1, and can be adjusted to PCI Express x4)
- PCI Express x1 slot
- PCI slot x4
Connector- 4 x SATA 1.5Gb/s connectors
- 1 x ATA100/66 IDE connectors ( supports 2 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD audio in header
- Front panel audio connector
- 2 x USB 2.0 headers (to support 4 USB2.0 ports)
Rear Panel I/OASRock 8CH I/O Plus
- 4 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x 8 channel Audio port ( Line In/Out, Mic In)
 Other Features / Miscellaneous
Unique FeatureHybrid Booster:
- CPU Frequency Stepless Control
- AGP/PCI Frequency Fix
- ASRock U-COP
- Boot Failure Guard (B.F.G)
Support CD- Drivers, Utilities, AntiVirus Software
- 64 Bit Beta Driver inside
Accessories- Quick Installation Guide, Support CD, I/O shield
- Floppy/ATA 100 Cables
- 1 x SATA Data Cable
- 1 x SATA 1-to-1 Power Cable
Form Factor- ATX, 305mm x 218mm
OS- Microsoft® Windows® 98SE / ME / 2000 / XP / XP 64-bit compliant
Certifications- FCC, CE, MS WHQL
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
