FM2A88X+ BTC
A motherboard with high stability and rich storage expandability!

  1. Support for Socket FM2+ 95W / FM2 100W processors
  2. All Solid Capacitor Design
  3. Supports Dual Channel DDR3 2400+(OC)
  4. 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1, 2 x PCI
  5. Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics
  6. Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
  7. Graphics Output Options : D-Sub, DVI-D
  8. 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  9. TI® NE5532 Premium Headset Amplifier
  10. 8 x SATA3, 4 x USB 3.1 Gen1 (2 Front, 2 Rear), 8 x USB 2.0, 1 x COM Port Header
  11. Supports ASRock Full Spike Protection, X-Boost, FAN-Tastic Tuning, USB Key
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Youtube Live Demo

Features


Ultra USB Power

Ultra Stable Power

The +5V voltage for rear panel’s USB 2.0 ports is transformed from the +12V, hence the voltage drop will be much lower than the +5V from the PSU directly. The 2.6A current also ensures that high-end USB gaming keyboards, mouse, and other USB devices will work perfectly.

Antistatic Shield

Most USB devices are vulnerable to electrostatic discharge. With our Ultra USB Power design, all of your USB devices are well protected against static electricity. Especially lowering the chances of USB mouse lag or stuttering.

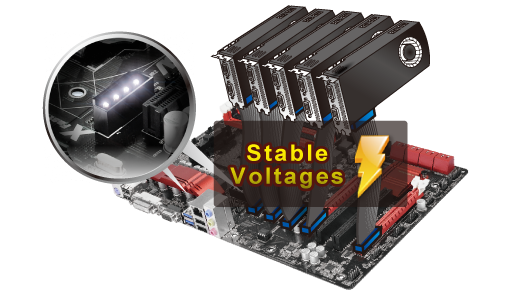

PCIe Power Connector

This BTC motherboard packs an extra 4-pin power connector for offering more power for your graphics cards. It provides more stable voltages and greatly reduces the risks of burning your motherboard or graphics cards.


TI® NE5532 Premium Headset Amplifier

TI® NE5532 delivers high definition audio to every headphone. Being the first one to add a headphone amplifier to the rear I/O line-out jack, this motherboard not only improves soundstage depth, but also enhances low frequency (20Hz) bass effects up to 10 times.

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Surge Protection
Protects the motherboard from excessive surges from the power supply unit.
Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
ESD Protection
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.

15µ Gold Contact

Unlike other motherboards come with only 3-4µ gold contact, this motherboard is coated with 15µ gold contact in the DRAM slots and PCIe x16 slot, thus providing better anti-oxidation protection than usual.

All Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

High Density Glass Fabric PCB

What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.


Next-Gen PCIe 3.0

This motherboard supports the next-gen PCIe 3.0! Compared to PCIe 2.0, PCIe 3.0 offers up to 2X data transferring bandwidth for VGA cards, thus providing ultimate graphics performance. (Available only with AMD FM2+ CPUs)




Get PCIe 3.0 Benefits
• Higher bit rate - 8.0GT/s
• Higher bandwidth per lane - 1GB/s
• Higher efficiency - 98.5% encoding efficiency
• 100% backward compatible with previous PCIe 2.0 / 1.0 standard

PCIe architectureRaw bit rateBandwidth per lane per directionEncoding Efficiency
PCIe 2.05.0GT/s500MB/s80%
PCIe 3.08.0GT/s1GB/s98.5%

Note: PCIe 3.0 supported with FM2+ APUs

Gigabit LAN

This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
Orbweb ME
Your Personal Cloud, Easy and Always Connects

ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function is also available. Now, download Orbweb Me Host, enter ASRock Cloud promotion code "ASROCK", ASRock's users are allowed to enjoy all services above.

[How to install promotion code]

Personal Cloud for Everyone

Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.


Media Library and Streaming

Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.


Access File Explorer From Multiple Devices

Orbweb ME allows you to access your own personal File Explorer from multiple devices, bringing your tablets, laptops and PC together. Forgot an important file in your computer at home which you need for the next meeting? Another hard day hiding in the office bathroom, missing your massive collection of funny videos and music clips? You can get it all by connecting your tablets or laptops to access File Explorer and immerse into the paradise in few seconds.


Remote Desktop Anywhere

Laying in the bedroom or sitting in the office, tablet in your hands just becomes smarter. Pick up any work sheet left in office or start any application from you home PC. Orbweb ME's remote desktop not only mobilized your PC but also empower your tablet. No matter the device, No matter the location, Orbweb ME always keeps your PC by you.
* Remote Desktop comes with the Ultimate package which is only free for the first month.



Wake On WAN

The latest technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.
* Only for certain motherboards that support wake on wan

* Orbweb ME is provided by Kloudian Systems Inc. Restriction may apply and the offer is subject to change, termination or discontinuation by Kloudian Systems Inc. without prior notice. Please visit the website for further details : http://www.asrock.com/feature/cloud/index.html


A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast LAN, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!

ASRock APP Shop

ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.


ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.
Orbweb ME :
Get Connected with ASRock Cloud Anytime, Anywhere
App Charger :
Fast Charge & Charge Anytime
Google Chrome :
Better Browsing with Google Options
XFast LAN :
Your Smartest Internet Access Manager


X-Boost

Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.
