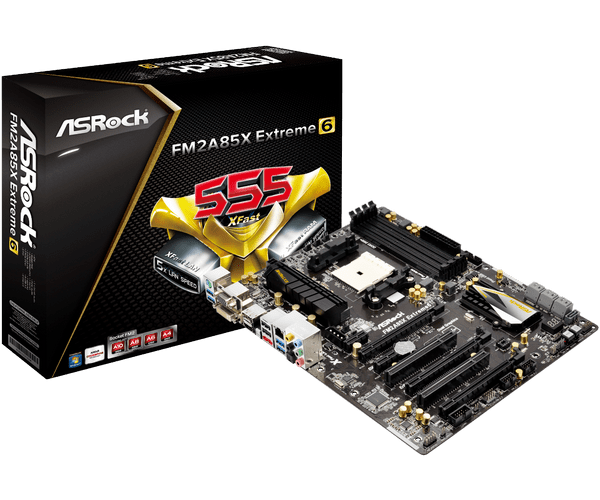

FM2A85X Extreme6

Tom’s Hardware Approved Award

1. Support for Socket FM2 100W processors
2. Premium Gold Caps, Digi Power, 8 + 2 Power Phase Design
3. AMD A85X Hudson D4 Chipset Supports Native 8 x SATA3, 4 x USB 3.0 Ports
4. Supports Dual Channel DDR3 2600+(OC)
5. Supports Intel^® XMP 1.3/1.2 and AMD Memory Profile
6. Supports AMD Quad CrossFireX™, 3-Way CrossFireX™, CrossFireX™ and Dual Graphics
7. Integrated AMD Radeon HD 7000 series graphics in A-series APU
8. Multi VGA Output : D-Sub, DVI-D, HDMI and DisplayPort
9. Supports Triple Monitor
10. 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
11. Supports ASRock X-Boost, XFast 555, Fast Boot, Restart to UEFI, OMG, Dehumidifier, Easy RAID Installer, Interactive UEFI
12. Supports Lucid Virtu MVP, AMD Steady Video 2.0
13. Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.

More Precise, More Efficient

By adopting digital pulse-width modulation (PWM), the ASRock motherboard can provide CPU Vcore voltage more efficiently and smoothly. Compared to analog PWM, digital PWM can optimize the CPU power solution and provide a proper and stable Vcore for the processor.

The next generation “Trinity” A-Series APUs provide even more opportunity for tweaking and overclocking, and are better than ever at performing the compute-demanding activities (entertainment, gaming). Supporting AMD Radeon HD 7000 series graphics and DirectX 11 standards, the AMD next-gen A-Series APUs provide 3D gaming experiences similar to discrete-level graphics card solutions. The ASRock FM2 Platform takes advantage of AMD’s Trinity APUs, users can overclock the APU to gain further performance. With the powerful integrated graphics, the ASRock FM2 Motherboard Series can deliver 3DMark Vantage (Performance setting) scores of over 7800 points, providing up to 48.92% performance boost.

Overclocking Configuration
Model	FM2A85X Extreme6
BIOS	L0.07I
CPU	FM2-A10-5800K 3.8G
DRAM	G.SKILL DDR3-2666 4Gx2
VGA	APU
HDD	WD SATA 160G

Overclocked Onboard Graphics Score
3DMark Vantage (Performance)

This motherboard supports Triple-Monitor. You may choose up to three display interfaces to connect monitors and use them simultaneously.

With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds* to logon to Windows^® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

*The boot time may vary with a different configuration.

ASRock "Restart to UEFI" technology is designed for those requiring frequent UEFI access. It allows users to easily enter the UEFI SETUP automatically when turning on the PC next time.

Top-Class Quality Guaranteed

Premium Gold Caps are luxury capacitors. These 100% Japan-made solid capacitors are sleek, high gloss caps with a premium gold coating representing long life and stable performance.

This motherboard is designed with a 8 + 2 Power Phase design. It features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capability and enhanced performance with the lowest temperature for advanced gamers as well.

This motherboard unlocks maximum memory performance, coming with 4 DIMM slots for dual-channel memory, supporting up to DDR3 2600+ (OC) MHz!

Not only supporting AMD Memory Profile (AMP), ASRock FM2 Motherboard Series also come with Intel^® XMP memory tuning kits, making it’s easy to get maximum memory performance from your system.

Engineered for supremacy, designed for efficiency and packed with incredible features, the AMD Radeon HD 7000 Series offers the world’s most advanced graphics.

DirectX^® 11 is the very latest in high-speed, high-fidelity gaming and computing. It can enable not just more visually stunning games, but significant performance improvements in some of your favorite websites and everyday applications.

The AMD Dual Graphics technology combines APU and GPU computing power to optimize user's visual experience.

Bringing the best video experience! Compared to v1.0, AMD Steady Video 2.0 provides more tech advances such as Letter/Pillar Boxed Content, Indicator Overlay, Enhanced Algorithm Effectiveness, etc.

ASRock motherboard support Lucid Virtu Universal MVP technology that improves your PC’s visuals, with faster response times, improved video processing and smoother media playback, all with low power consumption. Brilliantly designed for gaming, Virtu Universal MVP™ switchable graphics software assigns tasks dynamically to the best graphics resource and features two exciting techniques – HyperFormance™ and Virtual Vsync™.


1. HyperFormance™ - Optimized Game Responsiveness :
Game responsiveness is all about how fast your eye → brain → mouse click → game response behaves. When interacting with your computer, the responsiveness is a key factor to your productivity and overall systems experience. When it comes to playing games, especially fast moving ones like First Person Shooters, responsiveness becomes critical for both mastering the game and enjoying and immersive experience.

HyperFormance intelligently removes redundant rendering tasks within the graphics pipeline, the CPU-GPU-Display system.





2. Virtual Vsync™ - Resolve the everlasting debate between quality and performance :
Lucid's Virtual Vsync technology takes visual quality and performance to the next level. A proprietary solution for Virtu Universal and Virtu MVP, Virtual Vsync enables games to run at any FPS, with no image tearing, stuttering, lags and latency artifacts.

• Enhanced performance - when system has dGPU and iGPU
• Unlimited frame rates - beyond traditional in-game Vsync
• Flawless visual quality without tearing
• Up to 250% better responsiveness vs. standard Vsync


3. Switchable Graphics :
Dynamically assigns tasks to the best graphics resource regardless of physical cable connections.

Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and brings a lot more amusing.

Fast, Easy and Free – ASRock OMG technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users. Normally, ISPs (Internet Service Provider) will charge for internet curfew service. The service controls “all” the PCs connected at home through network remotely but all the PCs in that network will be restricted to access the internet at pre-setup times. However, ASRock OMG is a free tool for controlling internet access of each single PC. Parents can easily control internet access through BIOS setup to protect their kids from using Internet at inappropriate time, and meanwhile, enjoy their own internet space.

Internet Flash searches for available UEFI firmware updates from ASRock servers. System can auto-detect the latest UEFI from our servers and flash them within UEFI setup without entering Windows^® OS.

Easy RAID Installer can help you install the RAID driver easily without floppy drive. It can copy the RAID driver from a support CD to your USB storage device with just one simple click in UEFI setup.

This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.

Chrome is a fast, simple, and secure web browser, built for the modern web. Google Toolbar is designed to help you find what you're looking for quickly and discover new things along the way. Now ASRock has both Chrome and Google Toolbar bundled with our motherboards so users may enjoy better internet surfing experiences.

CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
