• CPU
  - Supports AMD Socket AM1 Athlon/Sempron APU
• Memory
  - 2 x DDR3 DIMM Slots
  - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 32GB*



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 32Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 1.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3.1 support
  - DRAM Voltage multi-adjustment
• Graphics
  - Integrated AMD Radeon™ R3 Series Graphics in A-series / E-series APU
  - DirectX 11.1, Pixel Shader 5.0
  - Max. shared memory 2GB
  - Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2
  - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports
  - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports



  *HDMI and DisplayPort 1.2 cannot output at the same time. You can only choose either one of them.
  **You can choose to use two of the four monitors only. D-Sub, DVI-D, HDMI and DisplayPort 1.2 monitors cannot be enabled at the same time.
• Audio
  - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Full Spike Protection
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111GR
  - Supports Realtek RealWoW! Technology
  - Supports Wake-On-LAN
  - Supports Full Spike Protection
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
  - 1 x mini-PCI Express Slot



  *Due to the power limitation and PCIe bandwidth (x4), the VGA card is not supported.
• Storage
  - 2 x SATA3 6.0 Gb/s Connectors by AMD AM1 Series Socket 25W Quad-Core APU, support NCQ, AHCI and Hot Plug
  - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
• Connector
  - 1 x COM Port Header
  - 1 x Chassis Intrusion Header
  - 1 x TPM Header
  - 1 x CPU Fan Connector (4-pin)
  - 1 x Chassis Fan Connector (4-pin)
  - 1 x Power Fan Connector (3-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x SATA Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports Full Spike Protection)
  - 1 x USB 3.1 Gen1 Header by ASMedia ASM1042A (Supports 2 USB 3.1 Gen1 ports) (Supports Full Spike Protection)

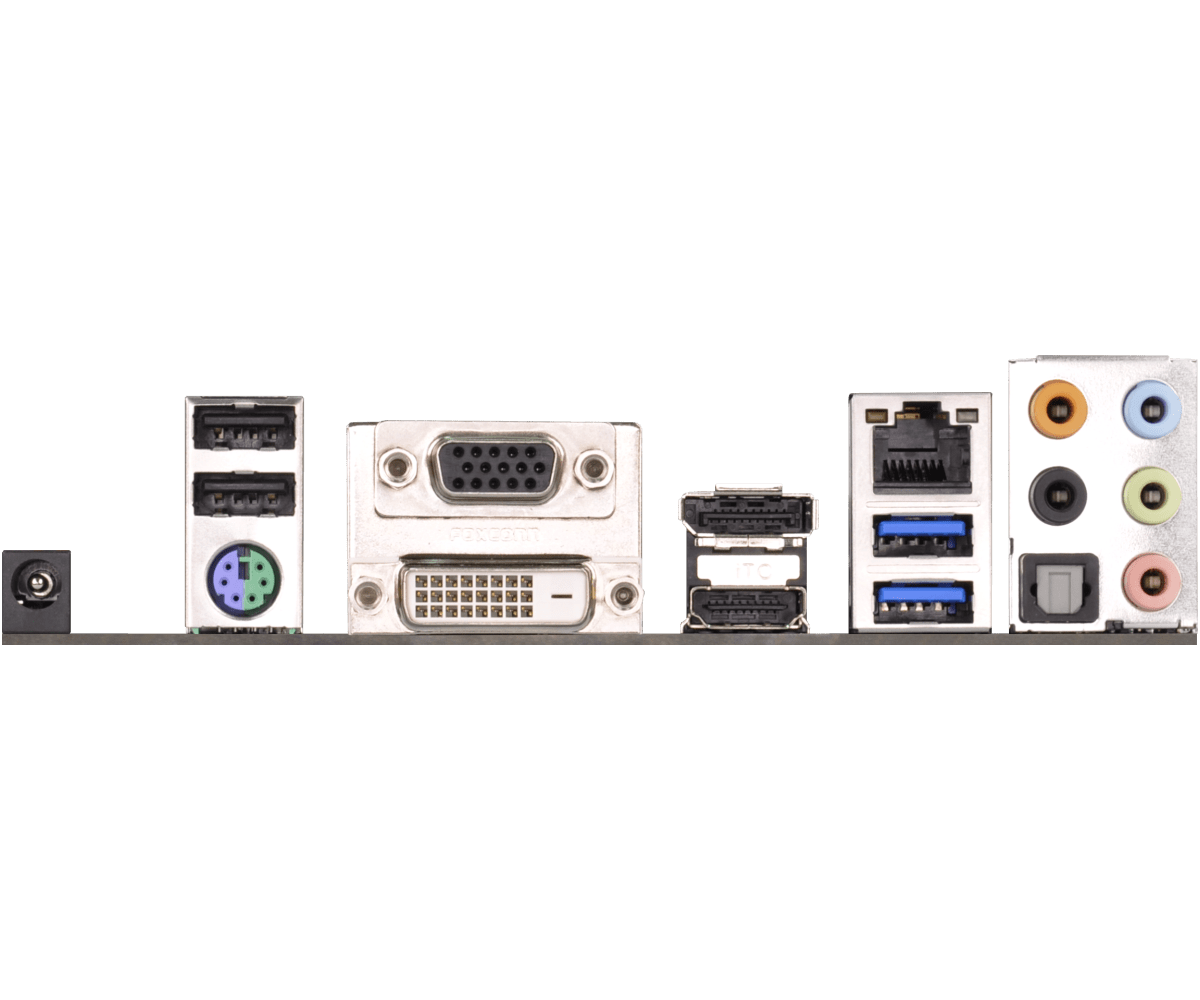

• Rear Panel I/O
  - 1 x DC Jack (Compatible with the 19V power adapter)
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.2
  - 1 x Optical SPDIF Out Port
  - 2 x USB 2.0 Ports (Supports Full Spike Protection)
  - 2 x USB 3.1 Gen1 Ports (Supports Full Spike Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Unique Feature
  - ASRock APP Shop
  - ASRock A-Tuning
  - ASRock Instant Boot
  - ASRock Instant Flash
  - ASRock APP Charger
  - ASRock XFast LAN
  - ASRock XFast RAM
  - ASRock Crashless BIOS
  - ASRock OMG (Online Management Guard)
  - ASRock Internet Flash
  - ASRock UEFI Tech Service
  - ASRock On/Off Play Technology
  - ASRock Dehumidifier Function
  - ASRock Easy Driver Installer
  - ASRock Interactive UEFI
  - ASRock Fast Boot
  - ASRock Restart to UEFI
  - ASRock USB Key
  - ASRock FAN-Tastic Tuning
  - Hybrid Booster:
  - ASRock U-COP
  - Boot Failure Guard (B.F.G.)
  - Good Night LED
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 1 x SATA Power Cable
  - 1 x WiFi Module Screw
• Hardware Monitor
  - CPU/Chassis temperature sensing
  - CPU/Chassis/Power Fan Tachometer
  - CPU Quiet Fan
  - CPU Fan multi-speed control
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  - Mini-ITX Form Factor
  - All Solid Capacitor design
  - High Density Glass Fabric PCB
• OS
  - Microsoft^® Windows^® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
