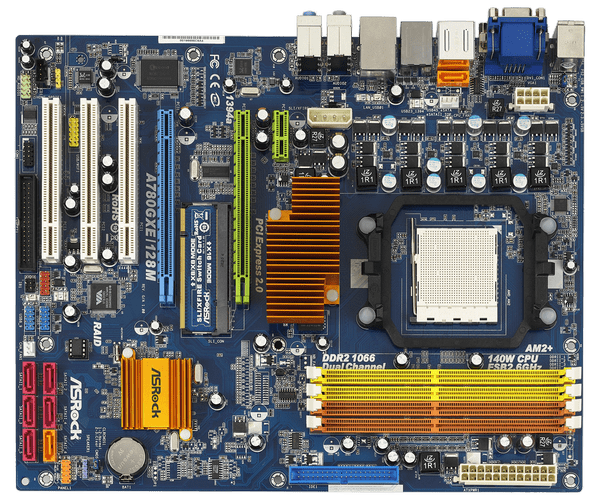

A780GXE/128M
  • Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  • Supports CPU up to 140W
  • Solid Capacitor for CPU Power
  • ASRock DuraCap (2.5 x longer life time)
  • Supports Hyper-Transport 3.0 (HT 3.0) Technology
  • AMD 780G + SB700 Chipsets
  • AM3 CPU Ready!
  • FSB 2600 MHz (5.2 GT/s)
  • Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
  • Integrated AMD Radeon HD 3200 graphics, DX10 class iGPU, Pixel Shader 4.0, Max. shared memory 512MB
  • Integrated 128MB side port memory for iGPU
  • Supports ATI™ CrossFire™ and Hybrid CrossFireX™
  • 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode)
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
  • 1 x eSATA2 3.0 Gb/s connector
  • Supports 2 x IEEE 1394 ports (one port on back panel, one header on board)
  • PCIE Gigabit LAN 10/100/1000 Mb/s
  • Graphics Output Options: Support DVI-D and D-Sub ports by independent display controllers
  • Supports HDCP function with DVI-D port
  • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
  • 1 x USB/WiFi header
  • Supports Instant Boot
  • Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver, Extra ESD Protection
  • Free Bundle: 1 x ASRock XFire Switch Card
  • 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
  • Windows® Vista™ Premium 2008 Logo Ready
  • I/O Panel: 1 x eSATA2 Port, 1 x IEEE 1394 Port, 1 x RJ-45 LAN Port with LED, 6 x USB 2.0 Ports
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
