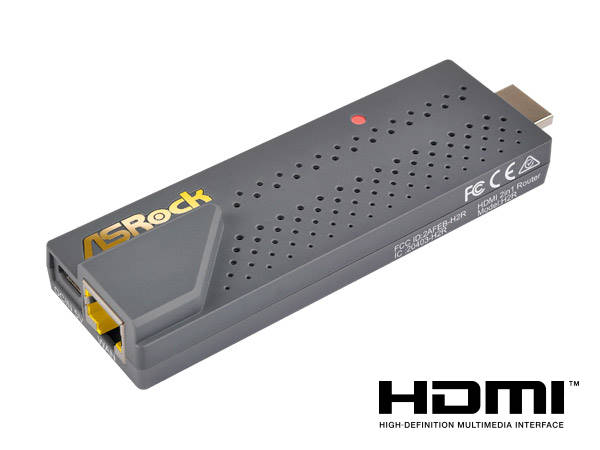

About H2R 2-In-1 Router

ASRock H2R is a portable travel router with IEEE 802.11n standards. When users are traveling or staying in hotels, it's pretty easy for them to share the LAN service with their family and friends. H2R is also a media streaming dongle that can be plugged into the HDMI port of your TV. It allows users to cast their favorite TV shows, movies, music, sports and games from mobile devices to the TV. H2R is fully compatible with various devices and different operating systems like iPhones, iPads, Android phones and tablets, Macs and Windows laptops. Most important of all, video streaming and other router functions can be used at the same time.

H2R Dongle Features

  1. Compliant with IEEE 802.11n 2T2R specification.
  2. Watch your favorite movies or photos from YouTube, Dropbox and more on your TV (Miracast, Airplay, DLNA)
  3. The Travel Router (Access Point) function allows you to convert broadband into WiFi signal.
  4. Supports Android/iOS/Windows/Mac devices.EZCast
  5. Download the EZCast app on different platforms.
  6. HDMI dongle & travel router functions can be used at the same time.
Features

Travel Router

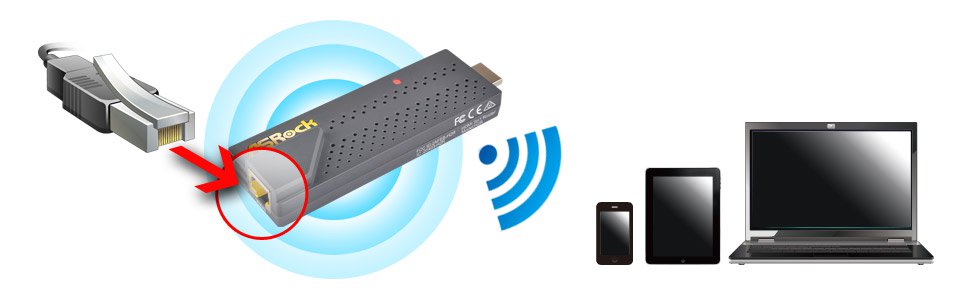

H2R is a powerful access point for sharing Ethernet connections over WiFi. It has 2T2R internal antennas with IEEE 802.11n specification, supporting up to 300Mbps bandwidth.

travel router


In the Past...

Only one device may be connected to the internet with an Ethernet cable.

Use cable

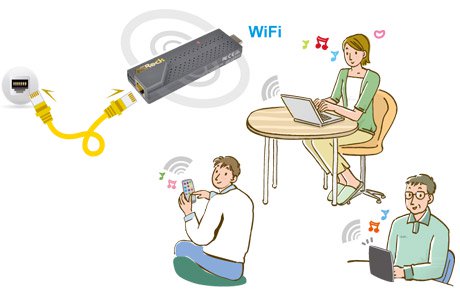

Access Point

Just connect an Ethernet cable and instantly create a secure wireless network environment for all of your devices.

Use H2R

HDMI Wireless Streaming Dongle

With H2R HDMI dongle, customers get differenthave a better users experience while sharing photos/videos on a screen.




In the Past...

Your friends and family had to huddle up to watch photos on a tiny screen.

Huddle up

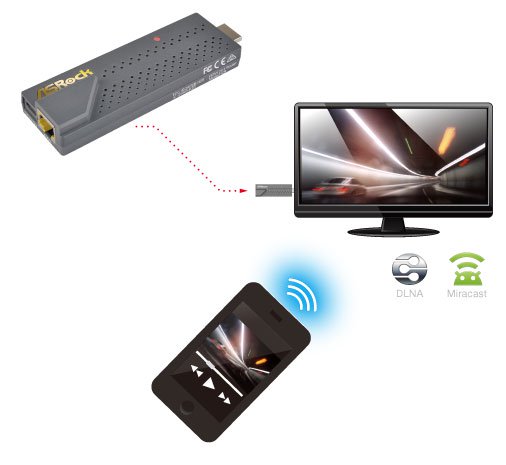

Streaming

Plug H2R to the HDMI port on your TV, then start streaming photos or videos from your smart devices to your TV.

Streaming to devices

Stream and Share WiFi Simultaneously

Users are able to use H2R as a travel router and Miracast/DLNA (HDMI dongle function) at the same time! Click here H2R APP for an introduction and details on how to setup H2R.

Mutile purpuse
Streaming TV

Specifications

Wireless Standard802.11 b/g/n
Frequency Band2.4GHz Single Band
Wireless Speed2.4GHz: 300Mbps
Memory128MB Flash and 128MB DRAM
Wireless SecurityWPA, WPA2
Antennas2 x internal High Performance Antennas
Ports1 x RJ45 10/100 WAN port
WAN connection typeDHCP, Static IP
Output Resolution1920x1080
Video SupportMPEG 1/2/4, H.264
Key FeaturesMiracast / EZplay / DLNA
Travel Router
Power SourceMicro USB or USB 5V power adapter
Dimensions115 x 35 x 17.3 mm
Weight43g
Operating temperature0゜to 40゜C (32゜to 104゜)
Operating humidity90% maximum relative humidity, noncondensing
Package ContentsH2R (HDMI 2-in-1 Router)
Micro USB Cable for H2R
HDMI Cable for H2R
Flannel bag
Quick Start Guide
