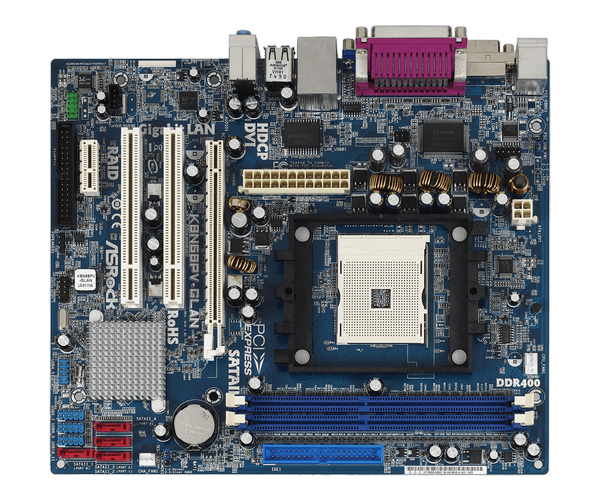

K8N68PV-GLAN
  • Socket 754 for AMD Athlon™ 64 and Sempron processors
  • NVIDIA® GeForce 7050 / nForce 630A MCP Chipset
  • Supports DDR400/333/266 with 2 x DDR DIMM slots, maximum capacity up to 2GB.
  • Integrated NVIDIA® GeForce7 Series (NV44) DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB
  • 1 x PCI Express x16 slot
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions
  • Gigabit LAN 10/100/1000 Mb/s
  • Graphics Output Options: Support DVI-D and D-Sub ports by independent display controllers
  • Supports HDCP function with DVI-D port, to enjoy better quality with High Definition HDCP Encryption contents
  • NVIDIA® PureVideo™ Ready
  • Chipset embedded HDMI Audio which Supports HDMI signal through DVI-D port by using DVI to HDMI adapter (not bundled)
  • ASRock 6CH_DVI I/O: 1 x VGA/D-Sub Port, 1 x VGA/DVI-D Port, 4 x Ready-to-Use USB 2.0 Ports
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
