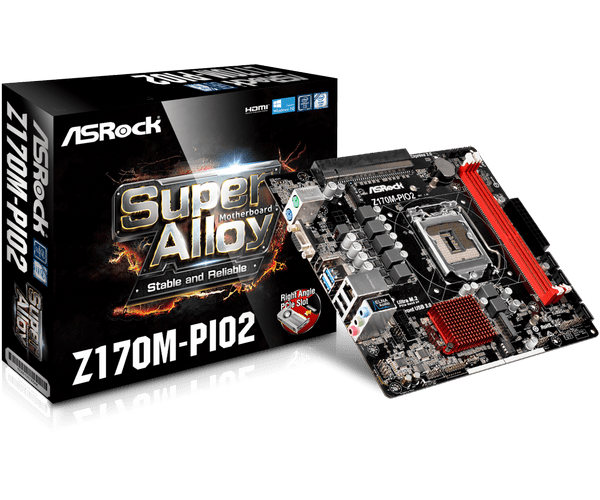

Z170M-PIO2

  • uDTX, supports PIO and Micro ATX
  • ASRock Super Alloy
  • Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Digi Power, 5 Power Phase design
  • Supports Dual Channel DDR4 3466+(OC)
  • 1 Right Angle PCIe 3.0 x16, 1 M.2 (Key E)
  • Graphic Output: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Realtek Gigabit LAN
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
