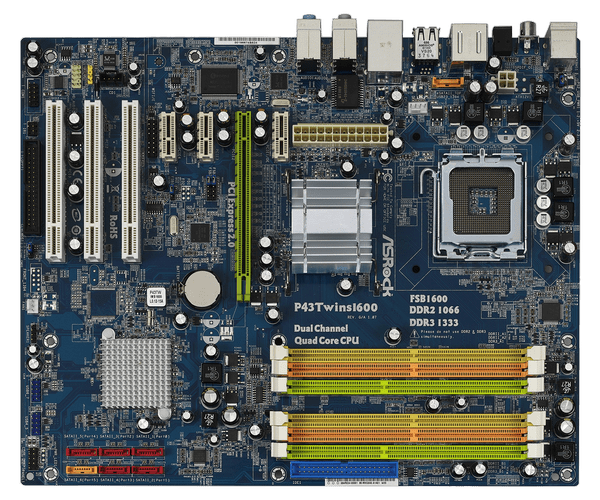

P43Twins1600
  • LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
  • Intel® P43 + ICH10 Chipsets
  • Supports FSB 1600/1333/1066/800MHz CPUs
  • Supports Dual Channel DDR3 1333/1066 (2 x DIMM slots) with max. capacity up to 8GB and Dual Channel DDR2 1066/800/667 (4 x DIMM slots) with max. capacity up to 16GB
  • 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
  • 6 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
  • 1 x eSATA2 3.0 Gb/s connector
  • PCIE Gigabit LAN 10/100/1000 Mb/s
  • 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
  • 1 x WiFi/E header
  • Windows® Vista™ Premium 2008 Logo Ready
  • Supports ASRock Instant Boot
  • Supports I. O. T. (Intelligent Overclocking Technology), ASRock OC Tuner
  • ASRock SPDIF I/O: 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port, 1 x eSATA2 Port, 1 x RJ-45 LAN Port, 6 x USB 2.0 Ports
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
